Large stainless steel weighing surface with multiple weighing units - Including grams, kilograms, pounds, ounces, a combined pound:ounce display, troy ounces and pennyweights - change weighing units at the touch of a button. With USB or RS-232 interface more ...

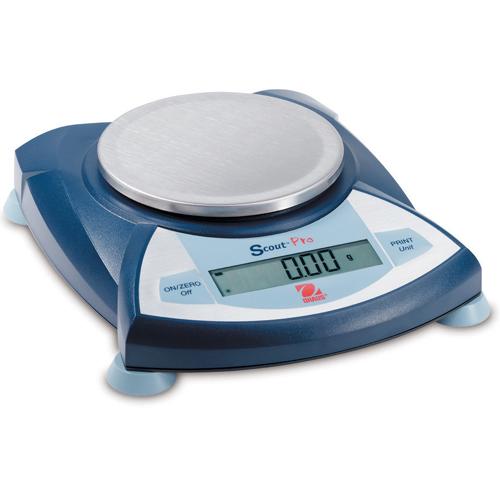

Ohaus takes the classic Scout® balance to the next level with the all-new Scout Pro! Designed for use in laboratory, industrial or education applications, the Ohaus Scout Pro continues the tradition set by the Ohaus Scout and Scout II products. Featuring easy-to-use two-button operation, a high-contrast LCD display, multiple weighing units, four application modes, and the option of either RS232 or USB connectivity, the Scout Pro is the portable balance for you!
Simple to operate, Scout digital scales allows weighing with minimal instruction, and the large, crisp display lets you view results from any angle. A sealed front panel, molded spill ring and stainless steel platform frotect from spills and make the Scout Pro digital scales easy to keep clean
Multiple Weighing Units – Including grams, kilograms, pounds, ounces, a combined pound:ounce display - change weighing units at the touch of a button
Multiple Application Modes – Including enhanced parts counting, percentage weighing, totalization, and display hold
Enhanced parts counting with average piece weight recalculation
Totalization for summing sample weights - only Ohaus Scout Pro digital scales allows repeated summation to the limit of the display, not just the capacity of the balance
Percent weighing for comparing sample weights to a reference weight
Display hold for weighing large packages - only Ohaus Scout pro offers this feature in a portable balance
Below-balance weighing using integral weigh below hook for density determination
Easy to Use – The high-contrast LCD display combined with two key operation makes the Scout Pro a snap to operate
USB or RS232 Connectivity – Quickly-installed option with integral cable allows data connection to PC or printer - Only Ohaus Scout Pro offers USB capability in an economical portable balance
Easy to Clean – Removable stainless steel weighing platform, sealed front panel and molded spill ring help keep the Scout Pro safe from spills
Battery or AC Power – Uses 4 ´AA´ batteries with auto shut-off feature for 40 hours of operation, or the Scout Pro can be run on the included AC powerpack
Integral Weigh-Below Hook – Critical for density or specific gravity determination
Integral Security bracket
Integral shipping lock to protect the weighing mechanism during transportation
Sealed front panel and molded spill ring to protect the balance during use
Physical lockswitch to allow the balance to be locked into a specific configuration, reducing operator error
2 year Ohaus warranty
Capacity (g): 400 g
Readability (g): 0.1
Repeatability (Std. Dev.) (g): 0.1
Linearity (g): ±0.1
Capacity x Readability (oz): 14.110 x 0.005
Capacity x Readability (ozt): 12.860 x 0.005
Capacity x Readability (dwt): 257.2 x 0.1
Application Modes: Parts Counting with Average Piece Weigh Recalculation, Percentage Weighing, Totalization, Display Hold
Tare Range: To Capacity By Subtraction
Over Range Capacity: Capacity +90d
Stabilization Time: 3 seconds
Operating Temp. Range: 50° to 104°F / 10° to 40°C
Power Requirements: AC Adapter (included) or 4 AA Batteries (not included)
Calibration Type: Digital Calibration from Keypad
Calibration Mass (Full Span): 400 g
Calibration Mass (Linear): 200 g
Display: High Contrast LCD with 6 digits 0.6in / 15mm high
Pan Size (in/cm): 4.7 Ø / 12 Ø
Dimensions WxHxD (in/cm): 7.56 x 2.13 x 8.27 / 19.2 x 5.4 x 21.0
Net Weight (lb/kg): 1.8 / 0.8
Shipping Dimensions WxHxD: 10 x 4 x 12 in / 25.4 x 10.2 x 30.5 cm
Printing Method - Thermal
Power - DC 7V ±1V (Printing), use exclusive adapter (DC 7V 1.6A) Thermal paper
Operating Temperature - 30 - 104° F / 0 - 40° C
Dimensions (W x D x H) - 4.17 x 7. x 3.5 in / 106 x 180 x 88 mm
Weight - 1lb / 470 g
Safety Standards - CE Marking/TUV - GS/FCC Class, B/VCCI Class B (AC adapter PSE/UL/C - UL/TUV - GS)
OHAUS Value in a Full-Featured, Portable Printer The all-new SF40A combines high performance and multiple functions to offer OHAUS quality and durability in a portable dot-matrix impact printer. The SF40A offers advanced functionality in an easy-to-use and set up printer at an exceptional value. This versatile printer is ideal for use in conjunction with OHAUS balances and scales in laboratory, industrial, and educational applications to ensure accurate documentation of weighing results.
Standard Features Include
Multiple Application Modes and Features Support the Data Reporting Process — SF40A is equipped with statistics and totalization modes that provide additional functionality for QA/QC and reporting processes. SF40A also offers a real-time clock with battery backup and date and time on printouts
Easy Setup And Configuration Eliminate Wasted Time — Don’t let your printer inhibit the efficiency of your weighing process. OHAUS balances and scales improve productivity and increase throughput and SF40A speeds recordkeeping to keep your job on track and get it completed as proficiently as possible. PC configuration software makes connecting the printer between balance or scale and computer a fast and convenient process and also makes setting up date, time, and baud rate hassle-free. The SF40A combined with GLP/GMP data output can help meet traceability and compliance requirements.
Multi-Language Printing Supports Universal Operation — SF40A supports printing in the language of the connected device in 13 different languages.
Other Standard Features
Status indicator, compatible with continuous label paper, perform zero and tare operations directly from the printer. Full functionality with Discovery, Adventurer™ Pro, Explorer®, Navigator®, MB Series Moisture Analyzers, Trooper®, Ranger®, Valor™ 7000, Defender™ bench and floor scales and “T” Series indicators. Statistics and Totalization not supported on other OHAUS products with RS232.
Multi-Language Printing: English, Spanish, French, German, Italian, Chinese, Korean, Japanese, Russian, Polish, Portuguese, Hungarian and Czech.
