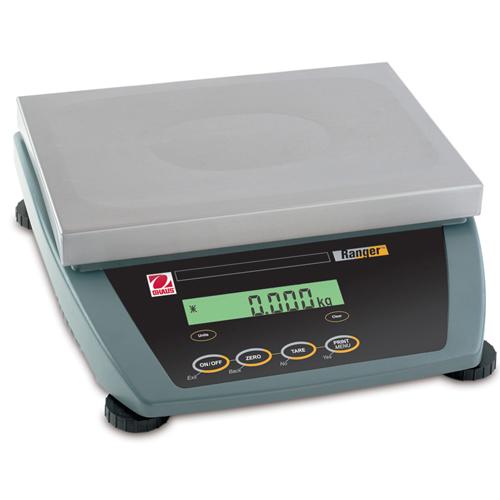

Ohaus RD60LS/1 Ranger Digital Scale With NiMH Legal for Trade, 60000 g x 2 g |
|
| Four digital industrial scales to choose from in capacities from 3 to 60 kilograms with maximum 0.0002 precision. RS-232 standard. Weighs in both pounds and kilograms more ... |
|
Scales >
Industrial Scales >
Compact Bench Scales
|
|
|
|
|
|
Optional Warranty
|
Features
Compact Industrial Bench Scales
The OHAUS RangerTM line of compact bench scales has been upgraded and expanded with new software and
models for even better performance in demanding industrial applications. The Ranger line now has an
enhanced microprocessor and updated filtering software for improved performance in the lab, on the
production line, or in the field.
| Model |
RD3RS |
RD6RS |
RD12LS |
RD30LS |
RD60LS |
 |
 |
 |
 |
 |
| Default Capacity x Readability |
6.6138 x 0.0002 lb
105.822 x 0.002 oz
3 x 0.0001 kg
3000 x 0.1 g
0.003 x 0.000001 t |
13.2275 x 0.0005 lb
211.640 x 0.005 oz
6 x 0.0002 kg
6,000 x 0.2 g
0.006 x 0.000001 t |
26.456 x 0.001 lb
423.30 x 0.02 oz
12 x 0.0005 kg
12,000 x 0.5 g
0.012 x 0.000001 t |
66.138 x 0.002 lb
1,058.20 x 0.02 oz
30 x 0.001 kg
30,000 x 1 g
0.03 x 0.000001 t |
132.275 x 0.005 lb
2116.50 x 0.05 oz
60 x 0.002 kg
60,000 x 2 g
0.06 x 0.000002 t |
| Capacity x Readability NTEP Certified (non SW models) |
6 x 0.001 lb
3 x 0.0005 kg
3,000.0 x 0.5 g |
12 x 0.002 lb
6 x 0.001 kg
6,000 x 1 g |
24 x 0.005 lb
12 x 0.002 kg
12,000 x 2 g |
60 x 0.01 lb
30 x 0.005 kg
30,000 x 5 g |
120 x 0.02 lb
60 x 0.01kg
60,000 x 10g |
|
 |
|
|
|
|
| Scale with NiMH Internal Battery |
RD3RS/1 |
RD6RS/1 |
RD12LS/1 |
RD30LS/1 |
RD60LS/1 |
|
|
|
|
|
|
| Scale with Second RS232 |
RD3RS/2 |
RD6RS/2 |
RD12LS/2 |
RD30LS/2 |
RD60LS/2 |
|
|
|
|
|
|
| Scale with NiMH Battery and 2nd RS232 |
RD3RS/3 |
RD6RS/3 |
RD12LS/3 |
RD30LS/3 |
RD60LS/3 |
|
|
|
|
|
|
| Platform Size (W x D) |
9.5 x 8 in / 24 x 20 cm |
14 x 9.5 in / 35 x 24 cm |
| Safe Overload Capacity |
150% of capacity |
| Construction |
Stainless steel weighing pan / Painted cast-aluminum housing |
| Protection |
IP43 for non-SW units, NEMA 4/IP65 for SW units |
| Weighing Units / Modes |
lb, oz, g, kg / Weighing, Dynamic Weighing |
| Display |
0.63 inch / 16 mm digit height (backlit LCD) |
| Keyboard |
Six button membrane switch |
| Stabilization Time |
< 2 seconds |
| Auto Zero Tracking |
0.5, 1, 2, 5, 10d, OFF |
| Power |
Internal AC adapter, rechargeable NiHM battery optional |
| Calibration |
External span, 20 - 100% |
| Operating Temperature |
14° F to 104° F / - 10° C to 40° C |
| Net (Shipping) Weight |
12 lb / 5.1 kg (15 lb / 6.6 kg |
20 lb / 8.9 kg (25 lb / 11.1 kg) |
| Scale Dimensions(W x D x H) |
10.5 x 13.2 x 4 in / 26.5 x 33.5 x 10 cm |
14.2 x 14.6 x 4.5 in / 36 x 37 x 11.5 cm |
| Shipping Dimensions (W x D x H) |
16.5 x 19 x 10 in / 42 x 48 x 25 cm |
20 x 20.5 x 10.5 in / 52 x 53 x 27 cm |
Precise, Fast Industrial Bench Scales in Rugged Cast Aluminum Housings
Every Ranger features a large, backlit LCD display with fast display of weighing results within 2 seconds, as
well as a RS232 port for quick connectivity to printers and systems. For use in applications requiring
additional filtering, the Ranger series now includes dynamic weighing software allowing weigh determination
where vibration is an issue.
For applications where water resistance is required, the Ranger series now offers NEMA4/IP65 models with
washable aluminum housings, with the same software and features as the non-washdown versions of the
Ranger series.
Every Ranger is designed with OHAUS’ easy-to-use software interface, making operation intuitive with a
consistent feel across all four Ranger lines: Ranger, Ranger High Resolution, Ranger Count and Ranger Count
Plus. No matter the industrial need, there is a Ranger for that application!
Standard Features Include:
- High performance strain gage loadcells, encased in a tough painted cast aluminum housing
- Wide range of platforms and capacities from 6lb to 120lb
- Weigh in lb, oz, kg, g or metric tonne units
- Large, backlit LCD display
- Dynamic weighing software included
- 1:30,000 default resolution
- NTEP 1:6,000 legal for trade resolution (non-washdown versions only)
- RS232 interface included, optional second RS232 available
- Built-in AC with hardwired plug, factory-installed NiMH battery optional
- NEMA 4/IP65 washdown (SW) models available
|
Weight:
30.00 lb
|
2 Year Manufacture Warranty
|
Other Ohaus Ranger Compact Bench Scales
RD3RS/1 Ranger Digital Scale With NiMH Legal for Trade
3000 g x 0.1 g
$1,261.33
|
RD6RS/1 Ranger Digital Scale With NiMH Legal for Trade
6000 g x 0.2 g
$1,261.33
|
RD3RS/2 Ranger Digital Scale With 2nd RS232 Legal for Trade
3000 g x 0.1 g
$1,353.78
|
RD6RS/2 Ranger Digital Scale With 2nd RS232 Legal for Trade
6000 g x 0.2 g
$1,353.78
|
RD12LS/1 Ranger Digital Scale With NiMH Legal for Trade
12000 g x 0.5 g
$1,395.56
|
RD12LS/2 Ranger Digital Scale With 2nd RS232 Legal for Trade
12000 g x 0.5 g
$1,492.44
|
RD30LS/2 Ranger Digital Scale With 2nd RS232 Legal for Trade
30000 g x 1 g
$1,492.44
|
RD60LS/2 Ranger Digital Scale With 2nd RS232 Legal for Trade
60000 g x 2 g
$1,492.44
|
RD30LS/1 Ranger Digital Scale With NiMH Legal for Trade
30000 g x 1 g
$1,536.00
|
RD60LS/1 Ranger Digital Scale With NiMH Legal for Trade
60000 g x 2 g
$1,536.00
You are viewing this product
|
RD60LSW
Ranger Washdown Scale
60000 g x 2 g
$1,638.22
|
RD3RS/3 Ranger Digital Scale With 2nd RS232 and NiMH Legal for Trade
3000 g x 0.1 g
$1,901.33
|
RD6RS/3 Ranger Digital Scale With 2nd RS232 and NiMH Legal for Trade
6000 g x 0.2 g
$1,901.33
|
RD12LS/3 Ranger Digital Scale With 2nd RS232 and NiMH Legal for Trade
12000 g x 0.5 g
$2,040.00
|
RD30LS/3 Ranger Digital Scale With 2nd RS232 and NiMH Legal for Trade
30000 g x 1 g
$2,040.00
|
RD60LS/3 Ranger Digital Scale With 2nd RS232 and NiMH Legal for Trade
60000 g x 2 g
$2,040.00
|
|
Specifications
Digital scales in demanding industrial situations need to be reliable. The Ohaus Ranger bench scale series pairs updated software and enhanced microprocessors with an optional factory-installed NiMH backup battery to ensure ease of use no matter where you are. From lab to field to production line, the Ranger series will provide you with the clear readings you need.
|
|
|
|
