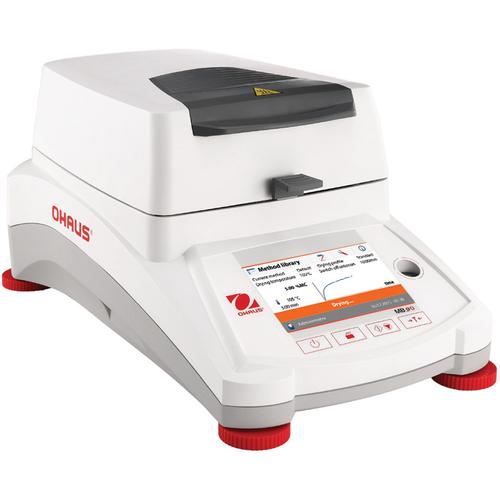

Ohaus MB-90 Moisture Analyzer (30241164) halogen Heating 90 g x 0.001 g

Ohaus Scales  and  Triple Beams
Measuring moisture content has never been easier than with the MB90 Moisture Analyzer. The MB90s halogen heating distributes heat uniformly over the sample and speeds up the drying process— delivering fast and precise measurements. Designed for tool-free cleaning, the MB90’s components can be easily removed for quick and easy maintenance. Operating the MB90 is intuitive with the icon-driven menu navigation on the touchscreen display. more ...
Laboratory Equipment > Moisture Analyzers > Moisture Analyzers
Ohaus MB-90 Moisture Analyzer (30241164) halogen Heating 90 g x 0.001 g

Specifications Chart View Full Detail Page


Call for more info
Download PDF
Ohaus MB-90 Moisture Analyzer (30241164) halogen Heating 90 g x 0.001 g
FREE Ground Shipping
(48 US States Only)
Price: $3,417.00


In Stock - Ships within 24 hours

Optional Accessories
Ohaus SW12W TAL Win Wedge Software (80850080) Ohaus SW12W TAL Win Wedge Software (80850080) , $477.00
Ohaus 80252478 - Three 7mm Reusable Pans for MB Series Ohaus 80252478 - Three 7mm Reusable Pans for MB Series , $78.30
Ohaus 80252477 - Sample Cage for MB Series Ohaus 80252477 - Sample Cage for MB Series , $93.60
Ohaus 80252476 - Holder, Pan for MB Series Ohaus 80252476 - Holder, Pan for MB Series , $72.00
Ohaus SF40A Portable Dot-Matrix Impact Printer Ohaus SF40A Portable Dot-Matrix Impact Printer , $891.00
Ohaus 80252571 Cable for 80252042 Dot Matrix Printer Ohaus 80252571 Cable for 80252042 Dot Matrix Printer , $173.70
Ohaus 80252581 Cable for 802521992 Thermal Printer Ohaus 80252581 Cable for 802521992 Thermal Printer , $173.70
Ohaus STP-103 Palm-Sized Thermal Printer Ohaus STP-103 Palm-Sized Thermal Printer , $684.00
Ohaus 80850088 Reusable Pans for MB-Series Ohaus 80850088 Reusable Pans for MB-Series , $181.80
Ohaus 80850086 Sample Pans For All MB's (80/Box) Ohaus 80850086 Sample Pans For All MB's (80/Box) , $59.40
Ohaus 11113873 Sample Pan Handler for MB-Series Ohaus 11113873 Sample Pan Handler for MB-Series , $124.20
Ohaus 80850087 Glass Fiber Pads Ohaus 80850087 Glass Fiber Pads , $92.70
Ohaus 80500525 RS-232 Cable PC 9 Pin Ohaus 80500525 RS-232 Cable PC 9 Pin , $158.40
Ohaus 80850043 Security Device (470004-010) Ohaus 80850043 Security Device (470004-010) , $189.90
Ohaus 11113857 Temperature Calibration Kit Ohaus 11113857 Temperature Calibration Kit , $510.30
Ohaus 80252479 - Three 14mm Reusable Pans for MB Series Ohaus 80252479 - Three 14mm Reusable Pans for MB Series , $81.90

View More Pictures
View Features

Ohaus
SKU: MB-90
UPC: B01GXKFMTE

Optional Warranty
warranty CPS 879520004993 2 Year Extended Warranty for Portable Scales Under $3500
Price: $249.95
warranty CPS 879520005051 4 Year Extended Warranty for Portable Scales Under $3500
Price: $347.95
Exceptional Precision - The MB90 provides precise results for more confident testing.
  • Fast Halogen Heating Technology Halogen heating dries samples in seconds and performs up to 40% faster than traditional infrared methods.
  • Uniform Drying for Precise, Repeatable Results The reflective sample chamber ensures uniform heating of each sample to yield reliable results of 0.01% readability.
  • Flexible and Powerful Features a full operating temperature range of 40–200 °C in 1 degree increments.
  • Two Drying Profiles to Ensure Accuracy Customize heating of specific samples with temperature control for one-step drying—set temperature and time and begin!
    • Fast: Quickest possible time to temperature
    • Standard: Minimal overshoot while achieving temperatures quickly
  • Shut-Off Criteria for Automatic Test Completion Customize your own test endpoint criteria to automatically end the test once moisture loss is no longer detected. Choose from 3 criteria—Manual, Timed and Auto.
Easy Tool-Free Cleaning
The MB90 features a patented pan handler and removable parts for convenient maintenance.
  • Stainless Steel Drying Pan Wipe down quickly
  • Removable Heating Chamber Components No tools required—simply remove glass and tray to clean
Testing Made Simple
The MB90 features a wide, bright touchscreen display and intuitive menu navigation for fast, accurate moisture analysis.
  • Touchscreen Display Easy to read and understand
  • Icon-Driven Menu Navigation Easy to follow—no training required
  • 4 Mechanical Keys for Fast One-Step Operation Tare, Start/Stop, Print, On/Off
  • USB and RS232 Ports Quick connections to a PC or flash drive
  • Moisture Analysis Made Simple
      Just 3 easy steps for routine sample testing!
    1. Tare empty sample pan
    2. Add sample according to best practices
    3. Press start and see your results!
Multiple Ways to Connect
    Versatile connectivity options to handle data collection and transfer needs—enhancing the user experience.
  • USB and RS232 Ports Quick connections to a PC or flash drive
  • Data Collection and Transfer You can simply save and transfer data from the moisture analyzer to a USB drive
Compliance
  • Product Safety: IEC/EN 61010-1; IEC/EN 61010-2-010; CAN/CSA C22.2 61010-1; CAN/CSA C22.2 61010-2-010; UL 61010-1
  • Electromagnetic Compatibility: IEC/EN 61326-1 Class B, Basic environments; FCC Part 15 Class A; ICES-003 Class A
Additional Features
ABS top housing, stainless steel pan support, in-use cover, storage up to 2 methods and 100 test results for each method, user-guide, 13 operational languages
Accessories Pan Handler 30246947
In-Use-Cover 30284478
Scoop 30284477
Temperature Calibration Kit 11113857
Anti-Theft Device 80850043
Aluminum Pan (set of 80) 80850086
Glass Fiber Pads (set of 200) 80850087
Cage, Sample. 80252477
Reusable Pan Set of 3, 7mm High 80252478
Reusable Pan Set of 3, 14mm High 80252479
SF40A Impact Printer. 30064203

Weight:16.00 lb

Features

strong>Combining Speed and Precision in One Moisture Analyzer –Test More Samples in Less Time

Measuring moisture content has never been easier than with the MB90 Moisture Analyzer. The MB90s halogen heating distributes heat uniformly over the sample and speeds up the drying process— delivering fast and precise measurements. Designed for tool-free cleaning, the MB90’s components can be easily removed for quick and easy maintenance. Operating the MB90 is intuitive with the icon-driven menu navigation on the touchscreen display.

Standard Features Include:
  • Outstanding Halogen Heating Guarantees Fast and Precise Results The MB90’s precisely controlled halogen heating dries samples quickly and ensures uniform heating to yield fast, precise and repeatable results of 0.01% readability.
  • Effortless Maintenance with the Tool-Free Cleaning Design Designed with effortless maintenance in mind, the MB90 features a removable pan handler and heating chamber components that make cleaning quick and easy—no tools needed.
  • Touchscreen Icon-Based Menu Navigation Guides Users Through Every Step Icon-based menu navigation on the easy-to-read touchscreen display makes operating the MB90 intuitive. Perform routine sample testing in three easy steps—no training required.
Other Ohaus MB Moisture Analyzer
Ohaus MB-23 Moisture Analyzer Infrared Heating, 110g  x  0.01g
MB-23
Moisture Analyzer Infrared Heating
110g x 0.01g

$2,550.00
Ohaus MB-27 Moisture Analyzer (30251683), Heating Technology Halogen - Capacity 90g
MB-27
Moisture Analyzer (30251683)
Heating Technology Halogen - Capacity 90g

$2,550.00
Ohaus MB-90 Moisture Analyzer (30241164) halogen Heating 90 g x 0.001 g
MB-90
Moisture Analyzer (30241164) halogen Heating 90 g x 0.001 g

$3,417.00

You are viewing this product
Ohaus MB-120 Moisture Analyzer (30241165) halogen Heating 120 g x 0.001 g
MB-120 Moisture Analyzer (30241165) halogen Heating 120 g x 0.001 g

$4,339.25

Specifications

Model MB90 MB120

Price

Capacity X Readability (g) 90 x 0.001 120 x 0.001
Capacity X Readability (%) 0.01% 0.01%
Repeatability (Std. Dev.) (g) 0.18% (3 g sample)
0.02% (10 g sample)
0.05% (3 g sample)
0.015% (10 g sample)
Moisture Range 0.01% to 100%
(0.01% to 1000% for regain mode
0.01% to 100%
(0.01% to 1000% for regain mode)
Output RS232, USB Host, USB Device RS232, USB Host, USB Device
Heating Element Halogen Halogen
Temperature Range 40–200 °C 40–230 °C
Power 120 or 240 VAC 50/60 Hz 120 or 240 VAC 50/60 Hz
Operating Temperature Range 50–104 °F/10–40 °C 50–104 °F/10–40 °C
Display Type 4.3 in/109 mm, QVGA, TFT touch screen 4.3 in/109 mm, QVGA, TFT touch screen/td>
Display Results %moisture, %solids, %regain, time, temperature, weight, method name, drying curve and statistics %moisture, %solids, %regain, time, temperature, weight, method name, drying curve and statistics
Pan Size 3.5 in/90 mm 3.5 in/90 mm

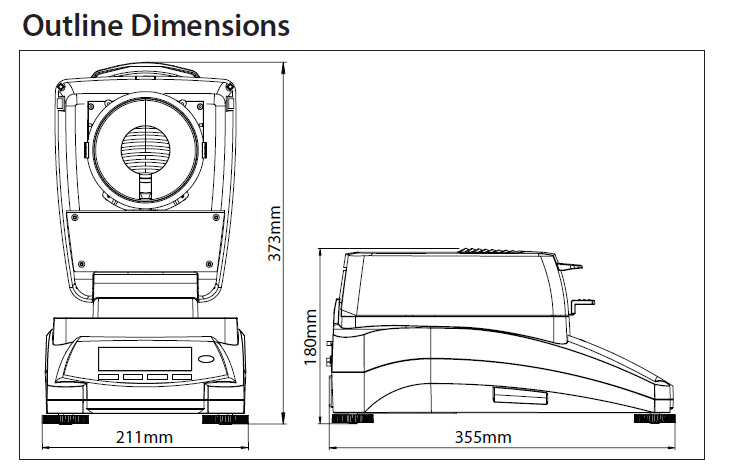

Dimensions (W × H × D) 8.3 × 7.7 × 14.0 in/211 × 180 × 355 mm 8.3 × 7.7 × 14.0 in/211 × 180 × 355 mm
Net Weight 11.5 lb/5.23 kg 11.5 lb/5.23 kg
Shipping Weight 18.4 lb/8.35 kg 18.4 lb/8.35 kg
image Alt 11831

* within the 48 continental US States


Optional Accessories


Ohaus SW12W TAL Win Wedge Software (80850080)
more info
Ohaus SW12W TAL Win Wedge Software (80850080)
$477.00

TAL Software Win Wedge V1.2 for Ohaus balances

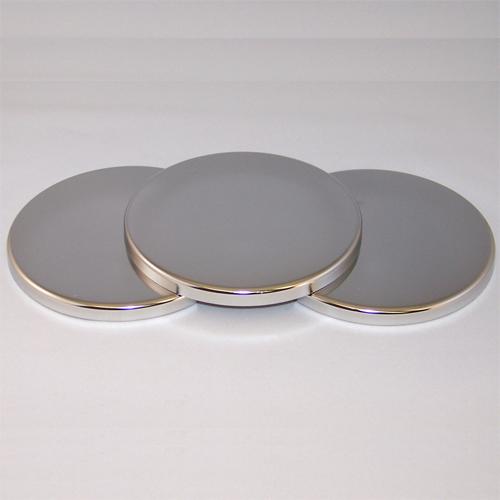

Ohaus 80252478 - Three 7mm Reusable Pans for MB Series
