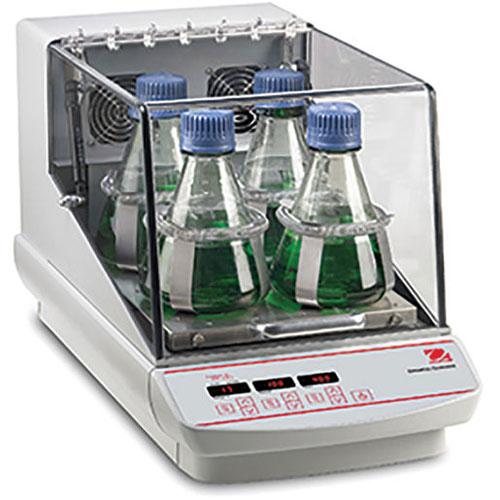

Ohaus ISHD16HDG Incubating Heavy Duty Shaker - Ambient +5°C – 65°C / 15 rpm – 500 rpm (Orbital, 19mm) |
|
| Incubating Heavy Duty Orbital Shakers offer exceptional temperature uniformity and are designed for a variety of shaking and incubating applications. more ... |
|
Laboratory Equipment >
Shakers >
Incubating and Incubating Cooling Shakers
|
|
Have Questions?
Our Staff will be glad to help |
|
|
|
|
|
|
|
|
|
Features
Incubating Heavy Duty Orbital Shakers offer exceptional temperature uniformity and are designed for a variety of shaking and incubating applications.
Applications: Cell Cultures, Solubility Studies, Bacterial Suspensions, Extraction Procedures
Display: Independent LED displays for temperature, speed and time
Communication: RS232
Construction: Aluminum and Cycoloy
Design Features Design Features: Temperature calibration feature, overload protection, overshoot protection (temperature), load sensor, PID temperature controller, Triple Eccentric Drive system
FEATURES
- The exclusive Opti-Flow Forced Ventilation System utilizes twin induction or a single large fan. Air is deflected around & not directly on samples, creating a circular flow of air ensuring uniformity
- For repeatable results, the exclusive Accu-Drive shaking system ensures speed accuracy. The Triple Eccentric Drive provides consistent shaking motion throughout the entire speed range.
- The chambers for the ISHD23HDG and ISHD23CDG units are large enough to hold 2 x 6 L Erlenmeyer flasks with optional clamps and platform.
Product Specifications
| Motion |
Orbital, 19 mm |
| Capacity |
35 lb (16kg)@ 75rpm, 5 lb (2.3kg)@ 500 rpm |
| Temp. Range |
Ambient +5°C – 65°C |
| Speed Range |
15 rpm – 500 rpm |
| Tray Size |
13 in x 11 in (330 mm x 279 mm) |
| Control |
Digital |
| Calibration |
Temperature calibration |
| Communication |
RS232 |
| Dimensions |
25.5 in x 16 in x 14 in (648 mm x 406 mm x 356 mm) (LxHxW) |
| Drive System |
Triple Eccentric
Brushless DC Motor |
| Inner Dimensions |
13.4 in x 9.5 in x 12 in (340 mm x 241 mm x 305 mm) (LxHxW) |
| Net Weight |
79.11 lb (35.9 kg) |
| Power |
120V, 5A, 50/60Hz |
| Power Consumption |
450 W |
| Safety Certification |
TUV |
| Speed Accuracy |
Above 100rpm +/- 1%, Below 100rpm /- 1 rpm |
| Timer |
1 second – 160 hours |
| Tray Construction |
Aluminum |
| Uniformity |
± 0.5°C at 37°C |
| Working Environment |
59°F – 90°F, 80%RH, non-condensing
(15°C – 32°C, 80%RH, non-condensing) |
|
|
