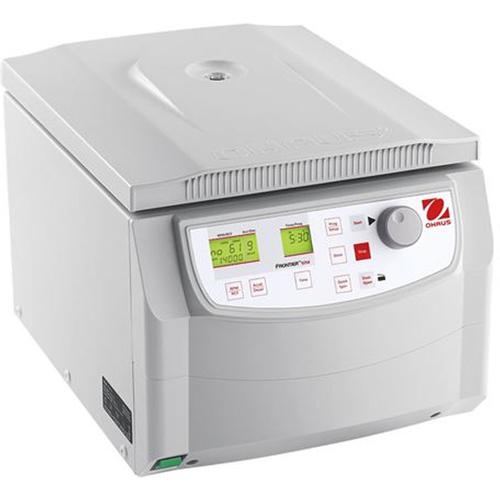

Ohaus FC5714 Frontier 5000 Series Multi Pro Centrifuge, 4 x 100 ml, 23,542 g - 120v |
|
| Frontier 5000 Multi Pro Centrifuges are designed for universal use in research, industrial & clinical laboratories, and can be combined with our rotors & accessories for customized use in specific applications. Available in 5 models with capacities from low microliter to 6x250 ml, and featuring high-speed performance at maximum volume, automatic rotor identification and safety features - these multi-purpose centrifuges are a must for any lab. more ... |
|
Laboratory Equipment >
Centrifuges >
Centrifuges
|
|
|
|
|
|
Features
Powerful and Versatile Universal Centrifuges for Virtually Every Lab Application
Frontier 5000 Multi-Pro Centrifuges are designed for universal use in virtually every application in research, industrial & clinical laboratories. Combine with our range of rotors & accessories for customized use in specific applications. Available in 5 models with capacities from low microliter to 6x250 ml - and featuring high speed performance at maximum volume, automatic rotor identification system and safety features, these multi-purpose centrifuges are a must for any lab.
Standard Features Include:
- Powerful Platform Offers Maximum Flexibility for a Range of Applications Our multi-purpose centrifuges offer a high-speed centrifugation platform which can be cust omized to fit workflow needs using a wide variety of rotors and accessories.
- Intuitively Designed for User-Friendly Operation The intuitive design of the centrifuges & accessories enable easy access to parameter settings, and quick rotation between applications. Features include automatic rotor recognition and backlit LCD.
- Solid Engineering Ensures Reliability and Durability The performance of these centrifuges is propelled by German engineering, and highquality components for reliable use. Constructed of chemical-resistant stainless steel to ensure durability in lab use.
- Increased Safety With Built-in Protective Features Frontier 5000 Series is equipped with protective features, including automatic over-speed protection, imbalance detection and self-diagnostic system to ensure reliable use and operator safety.
Maximum Application Flexibility
Choose from five models from small to medium capacity, speed range of 14,000 – 16,000 rpm and non-refrigerated/refrigerated options to suit your application. Ideal for spinning most tubes and bottles in the lab, including microtubes, blood tubes, round bottom tubes, conical tubes and microtiter plates.
FC5714 Centrifuge (non-refrigerated)
- Compatible with up to 9 optional rotors and 77 accessories
- Capacities from microliter to 4×100 ml
- High-speed centrifugation (>10000 rpm) from 0.2 ml up to 1.5/2.0 ml tubes
FC5718 (non-refrigerated) and FC5718R (refrigerated) Centrifuges
- Compatible with up to 19 optional rotors and 122 accessories
- Capacities from microliter to 4×100 ml
- High-speed centrifugation (>10000 rpm) from 0.2 ml up to 85 ml tubes
- Temperature variable range of -20 °C to 40 °C (FC5718R)
FC5816 (non-refrigerated) and FC5816R (refrigerated) Centrifuges
- Compatible with up to 13 optional rotors and 71 accessories
- Capacities from microliter to 6×250 ml
- Improved sample processing through-put with additional rotor for blood collection tubes and standard conical
- High-speed centrifugation (>10000 rpm) from 0.2 ml up to 250 ml tubes
- Temperature variable range of -20 °C to 40 °C (FC5816R)
Intuitively Designed for Simple Operation
Frontier 5000 Series was designed to make lab processes more efficient and
easier, and includes many user-friendly features & software that allow for intuitive
operation.
- Automatic rotor identification makes switching between applications extremely easy
- Simple one-hand operation enabled by the selection button/rotary knob combination —even with gloves on
- Large backlit LCD display shows centrifugation settings and real-time parameters on one interface
- Program storage up to 99 runs including parameter settings and rotor types
Solid Engineering Ensures Reliability
Manufactured with high-quality components for reliable use and German
engineered for high performance. Chemical and corrosion-resistant stainless steel
housing ensures durability in lab environments.
- Maintenance-free induction drive
- Thread-free rotor locking mechanism
- Optimized airflow system to keep samples cool (non-refrigerated models)
- Pre-cooling program to quickly reach desired temperature (refrigerated models)
- Chemical and corrosion-resistant stainless steel housing ensures durability in lab environments
- Self-diagnostic program to record usage and error history for easy maintenance and to minimize downtime
Safety Features for Increased Security
These centrifuges are equipped with additional protective features for
redundancy in safety and reliable operation.
- Over-speed protection, immediately upon rotor insertion
- Active imbalance-detection with individual imbalance tolerances set for each rotor
- Motorized lid-locking system to protect operators from accidental injuries
- Sealed and bio-containment rotors to safeguard operators from harmful aerosols
|
|
Other Ohaus Frontier 5000 Multi-Pro Centrifuges
|
Specifications
| Model |
FC5714 |
FC5718 |
FC5718R |
FC5816 |
FC5816R |
| Maximum Speed |
14000 rpm
10 rpm/set |
18000 rpm
10 rpm/set |
18000 rpm
10 rpm/set |
15000 rpm
10 rpm/set |
16000 rpm
10 rpm/set |
| Maximum RCF |
18624 × g
10 × g/set |
23542 × g
10 × g/set |
23542 × g
10 × g/set |
21379 × g
10 × g/set |
24325 × g
10 × g/sey |
| Maximum Capacity |
4 × 100ml |
4 × 100ml |
4 × 100ml |
6 × 250ml |
6 × 250ml |
| Temperatur Range |
Air cool |
Air cool |
-20~40°C |
Air cool |
-20~40°C |
| Running Time |
Short Spin, 10 sec to 99 hr 59 min 59 sec, or continuous |
Noise Level
(depending on the rotor) |
< 63 + 2 dB(A) |
< 60 + 2 dB(A) |
< 60 + 2 dB(A) |
< 61 + 2 dB(A) |
< 63 + 2 dB(A) |
| Number of Compatible Rotors |
9 |
19 |
19 |
13 |
13 |
| Acc/Dec Levels |
Allowable Kinetic Energy |
| Allowable Kinetic Energy |
5595 Nm |
16672 Nm |
25111 Nm |
34363 Nm |
34363 Nm |
| AC Power |
120V ~ 50/60 Hz |
120V ~ 50/60 Hz |
120V ~ 50/60 Hz |
120V ~ 50/60 Hz |
120V ~ 50/60 Hz |
| Current Consumption |
2.4 A |
4.0 A |
6.0 A |
4.2 A |
7.8 A |
| Power Consumption |
300 W |
475 W |
660 W |
520 W |
850 W |
| Voltage Fluctuation |
± 10 % |
| Dimensions (W × D × H) |
362 x 493 x 330 mm |
408 × 499 × 351 mm |
407 × 731 × 359 mm |
446 × 538 × 354 mm |
723 × 538 × 354 mm |
| Net Weight (without rotor) |
30 kg |
43 kg |
60 kg |
52 kg |
77 kg |
| Environment |
For indoor use only |
Other Standard Features and Equipment
Ten acceleration and ten deceleration rates, pre-selection of running time from 10s to 99h 59min or continuous, audible
signal at the end of each run with melody options, quick spin, CFC-free refrigeration system, sample temperature indication
and standstill cooling (refrigerated models)
Compliance
- Product Safety: EN 61010-1; EN 61010-2-020
- EMC: EN 61326-1
|
|
|
* within the 48 continental US States
|
|
Optional Accessories
more info
|
Ohaus 30314834 Frontier Rotor, 12x15ml RB/FA, ID
Frontier rotors extend the functionality of Frontier centrifuges by increasing the number of tubes of varied types and sizes that can be used in conjunction with each of the centrifuge models. Easy to clean and operate, the rotors are durably constructed to withstand demanding centrifugation.
| Maximum Capacity (Rotor) |
12 x 15 ml |
| Maximum Relative Centrifuge Force (x g) |
4,427 g |
| Net Weight |
2.74 kg (6.05 lb) |
| Maximum Speed |
6,000 rpm |
| Outer/Inner Radius |
11 mm |
| Rotor Style |
Angel |
| Aerosol tight |
Not applicable |
| Maximum loading weight |
300 g |
| Acceleration Time(sec) |
11 / 102 |
| Angle |
32° |
| Deceleration Time(sec) |
11 / 433 |
| Dimensions (HxLxW) |
58.82 in (22.4 mm) |
| Tube diameter without adapter |
18 mm / 15 ml |
| Working Environment |
-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity: <95%) |
| Compatible Models |
FC5714;
FC5718;
FC5718R |
| | | |
