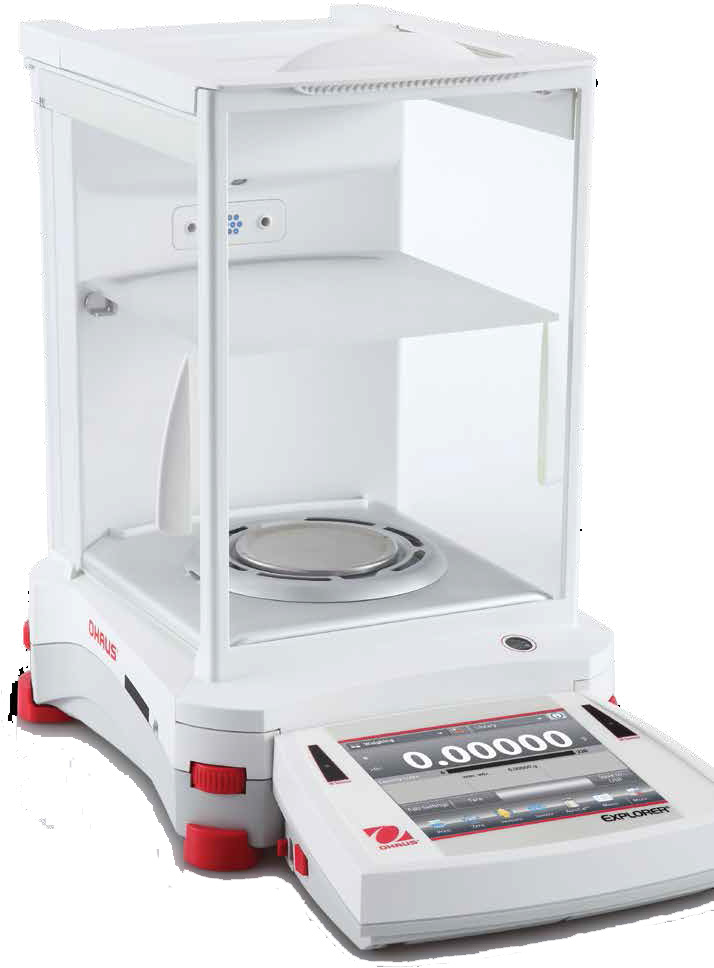

Ohaus EX125D Explorer Semi-Micro Balance (30139510) - 52 g x 0.01 mg and 120 g x 0.1 mg
Explorer delivers accurate results within seconds, improving operator efficiency, productivity and throughput, with a stabilization time up to 50% faster. Features include Fast stabilization time - Intuitive SOFTWARE - Ingenious DRAFTSHIELD - Practical TOUCHLESS SENSORS - ntelligent calibration and more more ...
Capacity x Readability 120 gx 0.1 mg 52 gx 0.01 mg Pan Size 3.14 in (Diameter)
Explorer delivers accurate results within seconds, improving operator efficiency, productivity and throughput, with a stabilization time up to 50% faster.
Fast stabilization time
Improves operational efficiency
Optimized linearity and repeatability specifications
Provides accurate and repetitive results
Superior vibration filtering
Provides balance stability in unstable environments
SmarText™ 2.0 is OHAUS’ easy-to-use graphical software featuring 14 applications, QWERTY and numeric keypads, and below-minimum weight indication.
Color VGA display with icons for simple menu navigation
High resolution, 5.7 in (145 mm) color TFT display reproduces highly readable operating software
Resistive touch screen display quickly responds to operator’s touch or stylus
14 built-in applications with customization capabilities to meet the varying needs in laboratory and industrial settings
Minimum Weight capability with visual warning feature
QWERTY keyboard and numeric keypad to quickly input GLP and GMP data and other application data • User Manager with administrator capability
Library function to store and recall customized applications
Alternate RS232 command feature adapts the balance to existing data acquisition software
External input for zero, tare or print operations via the external foot switch accessory
Audible and visual feedback for button presses as well as the indication of the check weighing status
The all-new Explorer® Series of Analytical and Precision balances — a product so extraordinary, it’s like nothing you’ve seen before!
Explorer’s draftshield provides ample access and visibility to the weighing chamber and features antistatic coated glass
Frameless, flip-top design provides unobstructed access to the weighing chamber
The expansive side entry 6.3 x 9.4 in (160mm x 240mm) allows you to freely place and remove large weigh boats or other large vessels in the weighing chamber
Antistatic coated glass helps dissipate static charges in the weighing chamber that could adversely affect the weighing results
Side doors seamlessly glide on top-mounted bearings, helping to prevent any potential bind up when balance is left uncleaned
Easy to install and remove glass panels and a stainless steel bottom make Explorer extremely easy to clean
A draftshield chamber light is available when the balance is used in low-lighting environments
Practical TOUCHLESS SENSORS
Explorer features four touchless sensors for hands-free operation of print, calibration, tare, and other selectable functions
Improves weighing efficiency
Eliminates sample residue transfer
Two sensors on the base and two on the display can be set up individually to allow for remote operations
Completely re-imagined from the ground up, the OHAUS Explorer® rises to a whole new level.
AutoCal™ ensures performance and assists with routine maintenance by automatically calibrating the balance daily
Fully-automatic internal calibration system
No need for external masses
Eliminates cost to maintain external weights
Self-calibrates the system when it senses a temperature change sufficient enough to affect weighing accuracy, or every 11 hours
Intuitive user setup
Explorer is the industry’s most easy-to-use balance, featuring leveling assistance and instructional messaging for quick out-of-the-box setup and use.
Easy to view illuminated level indicator placed at the front of the balance
Adjustable thumbwheels are easy to turn to level the balance
Level assist screen helps users to quickly identify which thumbwheels need to be adjusted to level the balance
Data Transfer Function helps to output data directly into Microsoft Excel
Instructional messaging during applications use guides users through the weighing process
User information menu allows users to quickly view and learn more about the available balances features
Up to 11 operating languages make Explorer’s Intuitive User Setup truly universal
The Explorer® is a revolutionary shift in the way users interact and operate a weighing instrument, all based on our ingeniously practical design philosophy
Ingenious modular design
Explorer’s modular design features a color touch display that can be separated from the weighing base.
Angular adjustment to optimize viewing
Easy access communication ports including standard USB and RS232 and an optional third port of either RS232 or Ethernet
Left and right side cable exit feature for customized installation capability
Tower and wall mount ready for modular installation
In-use cover for protection against rugged use
Extension cable accessory extends remote use up to 10 feet
QuadraStance™ design with four adjustable thumbwheels provides superior stability
Robust die-cast metal bottom housing
Accessory tower mount ready for modular installation
Cable storage system
Explorer is designed and engineered to meet stringent NTEP requirements for use in legal applications such as pharmacies, jewelry stores and retail outlets.
The Explorer has been designed to meet or exceed the Class I and II accuracy requirements in accordance with the National Institute of Standards and Technology (NIST) Handbook 44.
In addition to being designed to meet or exceed the Class I and II accuracy requirements for a prescription balance, the Explorer will also be approved for Counting for Prescription Filling. Explorer will make it easy to comply with the regulations requiring that an approved balance be installed in every operating pharmacy. Other Standard Features & Equipment:
Menu lock switch, security bracket, integral weigh below hook for below balance weighing applications, removable stainless steel weighing platform, stability indicator, overload and underload indicators, auto standby, powered by an ENERGY STAR® qualified adapter for a better environment.
The OHAUS Explorer’s advanced applications simplify even the most complex laboratory measurements. Whether it’s determining the difference between initial and residual weights or calculating the density of solids and liquids.
Explorer eliminates the need for time-consuming manual calculations and data logging. The high resolution display and innovative user interface make balance setup and application use effortless
Weighing - Determine the weight of items in the selected unit of measure. Minimum Weight feature is also available.
Percent Weighing - Measure the weight of a sample displayed as a percentage of a pre-established Reference Weight
Dynamic Weighing - Weigh an unstable load. Balance takes an average of weights over a time period.
Totalization - Measure cumulative weight of multiple items. Cumulative total may exceed Balance capacity
Differential Weighing - Store sample weights and calculate the difference between initial weights and final weights
Peak Hold - Capture and store highest weight in a series. Both stable and unstable weights are captured
Parts Counting - Count samples of uniform weight. Choose Standard Counting, Check Counting, or Fill Counting
Pipette Adjustment - Check pipette values by weight analysis, with built-in water density table
Check Weighing - Compare the weight of a sample against target limits. Choose from Standard, Nominal-weight, or Nominal-Percent
Filling - Fill a container to a target weight. Progress bar displays filling status
Formulation - For compounding and recipe making. The number of components can be from two to 99.
Density Determination - Determine density of solids more dense than water, solids less dense than water, liquids, or porous material.
Ingredient Costing - Determine cost of formula or recipe based on known cost/quantity of components or ingredients.
SQC - Monitor and/or control processes to eliminate under and over filling.
Printing Method - Thermal
Power - DC 7V ±1V (Printing), use exclusive adapter (DC 7V 1.6A) Thermal paper
Operating Temperature - 30 - 104° F / 0 - 40° C
Dimensions (W x D x H) - 4.17 x 7. x 3.5 in / 106 x 180 x 88 mm
Weight - 1lb / 470 g
Safety Standards - CE Marking/TUV - GS/FCC Class, B/VCCI Class B (AC adapter PSE/UL/C - UL/TUV - GS)
OHAUS Value in a Full-Featured, Portable Printer The all-new SF40A combines high performance and multiple functions to offer OHAUS quality and durability in a portable dot-matrix impact printer. The SF40A offers advanced functionality in an easy-to-use and set up printer at an exceptional value. This versatile printer is ideal for use in conjunction with OHAUS balances and scales in laboratory, industrial, and educational applications to ensure accurate documentation of weighing results.
Standard Features Include
Multiple Application Modes and Features Support the Data Reporting Process — SF40A is equipped with statistics and totalization modes that provide additional functionality for QA/QC and reporting processes. SF40A also offers a real-time clock with battery backup and date and time on printouts
Easy Setup And Configuration Eliminate Wasted Time — Don’t let your printer inhibit the efficiency of your weighing process. OHAUS balances and scales improve productivity and increase throughput and SF40A speeds recordkeeping to keep your job on track and get it completed as proficiently as possible. PC configuration software makes connecting the printer between balance or scale and computer a fast and convenient process and also makes setting up date, time, and baud rate hassle-free. The SF40A combined with GLP/GMP data output can help meet traceability and compliance requirements.
Multi-Language Printing Supports Universal Operation — SF40A supports printing in the language of the connected device in 13 different languages.
Other Standard Features
Status indicator, compatible with continuous label paper, perform zero and tare operations directly from the printer. Full functionality with Discovery, Adventurer™ Pro, Explorer®, Navigator®, MB Series Moisture Analyzers, Trooper®, Ranger®, Valor™ 7000, Defender™ bench and floor scales and “T” Series indicators. Statistics and Totalization not supported on other OHAUS products with RS232.
Multi-Language Printing: English, Spanish, French, German, Italian, Chinese, Korean, Japanese, Russian, Polish, Portuguese, Hungarian and Czech.
