Features

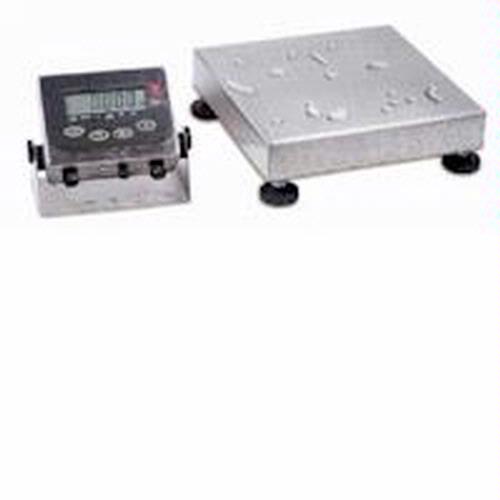

Ohaus Champ bench scales feature RS-232 bi-directional interface, net, gross and tare functions, auto power off timer, easy to read LCD display, low battery warning and more. Capacity x readability: 25 x 0.002 lb.
For precise industrial requirements, the ChampTM SQ washdown bench scale is just right for your application and budget. When you need affordable performance, the Champ’s washdown models offer simple operation, setup and menu navigation. Every Champ SQ NEMA 4X/IP65 bench scale comes with an impressive range of features, including:
- Capacities from 10kg to 250kg
- All stainless steel construction, with a precise, easy-to-use NEMA 4X/IP65 washdown indicator
- RS232 interface standard
- Weigh modes include dynamic animal weighing and parts counting
- AC or battery powered for full portability
- Large backlit LCD display
- Includes stainless steel bench/wall mount bracket
- NTEP 1:5,000 resolution; 1:10,000 - 1:12,500 maximum displayed resolution
Standard Features
All stainless steel construction, RS232 bi-directional interface, backlit LCD display, Net/Gross/Tare function, auto-off timer, low battery warning, indicator includes stainless steel wall/bench mount bracket, adjustable averaging and stability levels, retain zero data, auto-zero tracking, leveling feet, leveling bubble.
| Model Number |
CQ10-R11W |
CQ25-
R11W |
CQ50-
L11W |
CQ100-
L11W |
CQ250-
XL11W |
| Capacity (lb/kg) |
25/10 |
50/25 |
100/50 |
250/100 |
500/250 |
Readability (lb)
Non-type approved
(kg) |
0.002
0.001 |
0.005
0.002 |
0.01
0.005 |
0.02
0.01 |
0.05
0.02 |
Readability (lb)
Type approved (kg) |
0.005
0.002 |
0.01
0.005 |
0.02
0.01 |
0.05
0.02 |
0.1
0.05 |
| Protection |
IP65 |
| Weighing Modes |
lb, kg, g, oz, plus parts counting and dynamic weighing. |
| Load Cell Excitation (V dc) |
5 to 15 |
| Safe Overload Capacity |
150% |
| Stabilization Time |
1-4 seconds depending upon filter selection |
| Keyboard |
4 function membrane switches and 12 function keys |
| Display |
25.4 mm (1) Backlit LCD |
| Power |
AC Hardwired Cord-set, 120 V (water tight)
6 C-type Batteries (water tight), up to 100 hours |
| Repeatability |
NTEP 5000d |
| Platform size |
12 x 12 x 4
(30 x 30 x 10 cm) |
18 x 18 x 4.1
(45 x 45 x 10.4 cm) |
24 x 24 x 6.4
(60 x 60 x 16 cm) |
| Operating Temp |
14°F to 104°F (-10°C to 40°C), 10% to 95% relative humidity |
| Storage Temp |
14°F to 104°F (-10°C to 40°C), 10% to 95% relative humidity |
| warranty |
5 years |
| Construction |
Frame: Stainless Steel
Platform: Stainless Steel |
|
5 Year Manufacture Warranty
|
