Features

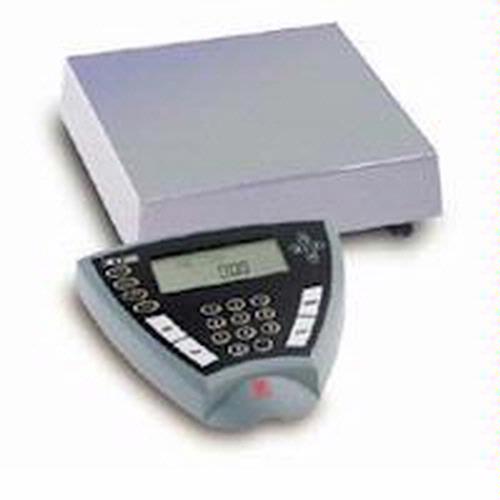

Ohaus Champ bench scales feature RS-232 bi-directional interface, net, gross and tare functions, auto power off timer, easy to read LCD display, low battery warning and more. Capacity x readability: 25 x 0.001 lb.
From general weighing needs to precise industrial requirements, there’s a ChampTM SQ Multi-Functional Bench Scale that’s just right for your application and budget. When you need custom performance, the Champ’s Multi-Functional models offer versatility with a choice of an Ohaus CD31 or CD33 indicator. Every Champ SQ Multi-Functional Bench Scale comes with an impressive range of features, including:
-
Capacities from 10kg/25lb to 250kg/500lb
-
NTEP 1:5,000 Legal-for-Trade type approved resolution
-
1:20,000 to 1:25,000 maximum displayed resolution
-
Stainless steel platter with painted steel frame
-
RS232 interface standard with GMP data output: time, date, operator number, scale ID number, project number and name
-
Weighing, parts counting, dynamic/animal weighing, percent weighing, and checkweighing modes
Standard Features
Stainless steel platform with painted steel frame construction, RS232 bi-directional interface, GMP data output: time/date/operator number/scale ID number/project number/name, easy to read 2-line LCD display, Gross/Net/Tare function, auto-off timer, low battery warning, adjustable averaging and stability levels, retain zero data, auto-zero tracking, leveling feet and leveling bubble.
| Model Number |
CQ10-R31 |
CQ25-
R31 |
CQ50-
R31 |
CQ100-
L31 |
CQ250-
XL31 |
| Capacity (lb/kg) |
25/10 |
50/25 |
100/50 |
250/100 |
500/250 |
Readability (lb)
Non-type approved
(kg) |
0.001
0.0005 |
0.002
0.001 |
0.005
0.002 |
0.01
0.005 |
0.02
0.01 |
Readability (lb)
Type approved (kg) |
0.005
0.002 |
0.01
0.005 |
0.02
0.01 |
0.05
0.02 |
0.1
0.05 |
| NTEP Resolution |
1:5,000 |
| Weighing Modes |
lb, kg, g, plus parts counting, dynamic weighing, GMP, percent and checkweighing |
| Safe Overload Capacity |
150% |
| Stabilization Time |
1-4 seconds depending upon filter selection |
| Keyboard |
4 function membrane switches and 12 function keys |
| Display |
25.4 mm (1) LCD: 2 line, weigh and prompt message |
| Power |
AC Adaptor (standard) |
| Repeatability |
NTEP 5000d |
| Platform size |
12 x 12 x 4
(30 x 30 x 10 cm) |
18 x 18 x 4.1
(45 x 45 x 10.4 cm) |
24 x 24 x 6.4
(60 x 60 x 16 cm) |
| Operating Temp |
14°F to 104°F (-10°C to 40°C), 10% to 95% relative humidity |
| Storage Temp |
-4°F to 140°F (-20°C to 60°C), 10% to 95% relative humidity |
| warranty |
5 years |
| Construction |
Frame: Painted Steel
Platform: Stainless Steel |
Weight:
22.00 lb
|
5 Year Manufacture Warranty
|
