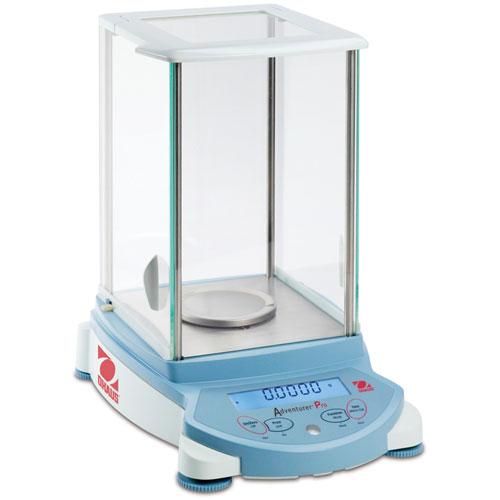

Ohaus AV64C Adventurer Pro Digital Balance, 65 x 0.0001 g with InCal |
|
Ohaus Adventurer Pro digital balances are new for 2005! Improved performance with frameless draftshield, Internal calibration option, optional second USB port or second RS-232, multiple programs and weighing modes. In capacities from 65 to 8100 grams more ... |
Laboratory Equipment >
Analytical Balances >
Analytical - 0.1 mg
|
|
|
|
Features
Since its introduction, the Ohaus Adventurer™ Pro analytical balance has established itself as the industry’s most versatile balance. It counts, it sums, it holds and it delivers traceable results. Now, with your input, Ohaus is taking versatility to the next level by expanding the Adventurer™ Pro line to include a full range of Analytical and High Precision models. In addition, Adventurer™ Pro now offers an optional internal calibration feature, as well as a state of the art frameless draftshield for Analytical and High Precision models. Combining value, quality and performance, the Ohaus Adventurer™ Pro digital balances feature:
- Improved Performance – Improved linearity and stabilizations at 0.1 mg readability enable faster and more accurate results. A 2-line alphanumeric LCD and intuitive software with text prompts makes Adventurer TMPro easy to use
- Frameless Draftshield – The new frameless, flip-top draftshield is designed without a top rail for the glass doors. This design permits easy access into the weighing chamber and helps to eliminate spillage. Its doors are easy to remove and replace making it fast and easy to clean
- Available Options – Ohaus Adventurer™ Pro is available with InCal™ internal calibration. With InCal, you can calibrate the balance prior to use without the need of external weights.
For use in laboratory, industrial or education applications, the Ohaus Adventurer™ Pro features an ergonomic leveling system with up front indicator, two-line backlit LCD, seven application modes and RS232. Other options include secondary RS232 and USB interfaces. The Ohaus Adventurer™ Pro is the ideal balance combining all the value and all the performance you need! Other Features include:
- Multiple Application Modes – Enhanced parts counting, animal/dynamic weighing, checkweighing, percentage weighing, totalization, and display hold
- RS232 Interface with GLP Data Output – Connect to a PC or a printer and record GLP/GMP data including date, time, balance ID, user ID, project ID and reference data
- Environmental Settings – User selectable filter settings to compensate for vibrations and other disturbances
- Up Front Level Indicator – Ensure that the balance is level with a quick view of the up front level indicator
- Battery or AC Power – Some models offer portability utilizing 4 "AA" batteries with an auto shut-off feature. All models can be run on the included AC power pack
- In-Use Cover & Security Bracket – Protect against theft and spillage at no additional cost
General Specifications
Weighing Units * |
Milligram, Gram, Kilogram, Ounce, Pound, Carat, Pennyweight, Ounce Troy, Grain, Newton, Hong Kong Tael, Singapore Tael, Taiwan Tael, Momme, Tical, Baht, Mesghal, Tola, Custom |
Application Modes |
Weighing, Animal /Dynamic Weighing, Parts Counting with Automatic Sample Recalibration, Percent Weighing, Checkweighing, Totalization, Display Hold |
Tare Range |
To capacity by subtraction |
Operating Temperature Range |
50° - 86°F/10° - 30°C |
Calibration |
Digital with External Weight (non-"C" models)
Digital with Internal Weight ("C" models with InCal option) |
Display Type |
2-Line Alphanumeric Backlit LCD Display |
Display Size (in/cm) |
4 x 1 / 10 x 2.5 |
Warranty |
2 year Ohaus warranty |
* Milligram unit available on 0.1mg to 1mg models
Kilogram and Pound available on 0.01g to 0.1g models |
Technical Specifications, Precision Balances
Model Number (without InCal Internal Calibration)
Price |
AV64
 |
AV114
 |
AV264
 |
AV53
 |
AV213
 |
AV313
 |
AV212
 |
AV412
 |
AV812
 |
AV2102
 |
AV3102
 |
AV2101
 |
AV4101
 |
AV8101
 |
without InCal Internal Calibration and with Secound RS232 |
AV64R
 |
AV114R
 |
AV264R
 |
|
|
|
|
|
|
|
|
|
|
|
without InCal Internal Calibration and with USB |
AV64U
 |
AV114U
 |
AV264U
 |
|
|
|
|
|
|
|
|
|
|
|
Model Number (with InCal Internal Calibration)
Price |
AV64C
 |
AV114C
 |
AV264C
 |
N/A |
AV213C
 |
AV313C
 |
AV212C
 |
AV412C
 |
AV812C
 |
AV2102C
 |
AV3102C
 |
AV2101C
 |
AV4101C
 |
AV8101C
 |
WithInCal Internal Calibration and with Secound RS232 |
AV64CR
 |
AV114CR
 |
AV264CR
 |
|
|
|
|
|
|
|
|
|
|
|
With InCal Internal Calibration and with USB |
AV64CU
 |
AV114CU
 |
AV264CU
 |
|
|
|
|
|
|
|
|
|
|
|
Capacity (g) |
65 |
110 |
260 |
51 |
210 |
310 |
210 |
410 |
810 |
2100 |
3100 |
2100 |
4100 |
8100 |
Readability (g) |
0.0001 |
0.001 |
0.01 |
0.1 |
Repeatability (Std. dev.) (g) |
0.0001 |
0.001 |
0.01 |
0.1 |
Linearity (g) |
± 0.0002 |
± 0.0003 |
± 0.002 |
± 0.02 |
± 0.2 |
Stabilization Time (seconds) |
3 |
2.5 |
3 |
1.5 |
3 |
2 |
Power Requirements with InCal |
AC Adapter (Included) |
Power Requirements without InCal |
AC Adapter (Included) |
AC Adapter (Included) or 4 AA Batteries (Not Included) |
AC Adapter (Included) |
AC Adapter (Included) or 4 AA Batteries (Not Included) |
AC Adapter (Included) |
AC Adapter (Included) or 4 AA Batteries (Not Included) |
Draftshield Type with
Height Over Pan (in/cm) |
Square, Flip-Top: 9 / 23 |
Round:
2.75 / 7 |
Square, Flip-Top:
4.5 / 11.5 |
None |
Pan Size with InCal (in/cm) |
N/A |
4.7 / 12 dia. |
6.6 x 7.1 / 16.8 x 18 |
Pan Size without InCal (in/cm) |
3.5 / 9 dia. |
3.9 / 10 dia. |
4.7 / 12 dia. |
5.8 x 6.3 / 14.9 x 16.2 |
6.6 x 7.1 / 16.8 x 18 |
5.8 x 6.3 / 14.9 x 16.2 |
Balance Dimensions with InCal
WxHxD (in/cm) |
N/A |
8.7 x 6.3 x 11.8 /
22 x 16 x 30 |
8.7 x 3.3 x 11.8 /
22 x 8.5 x 30 |
Balance Dimensions without InCal
WxHxD (in/cm) |
8.7 x 10.8 x 11.8 /
22 x 27.5 x 30 |
7.6 x 5.7 x 10 /
19.3 x 14.5 x 25.4 |
8.7 x 6.3 x 11.8 /
22 x 16 x 30 |
7.6 x 2.8 x 10 /
19.3 x 7.2 x 25.4 |
8.7 x 3.3 x 11.8 /
22 x 8.5 x 30 |
7.6 x 2.8 x 10 /
19.3 x 7.2 x 25.4 |
Other Standard Features and Equipment
Large stainless steel weighing platform, integral weigh-below hook for density or specific gravity determination, stability indicator, mechanical and software overload/underload protection, low battery indicator, AC adapter, draftshield on 0.1/1mg models, text prompts for application use and menu navigation, linearity and user selectable span calibration points, auto tare, multiple weighing units, user selectable printing options, user selectable communications settings, user selectable data print options, user definable project and user ID’s, software reset menu, software lockout menu
Approvals
- CE, FCC, CUL US, CCSA US, NRTL
- C Tick
- CB Scheme
- IP33 (without Power Adapter; with Pan put on)
- IP20 (with Power Adapter, with Pan put on)
Weight:
16.00 lb
|
2 Year Manufacture Warranty
|
