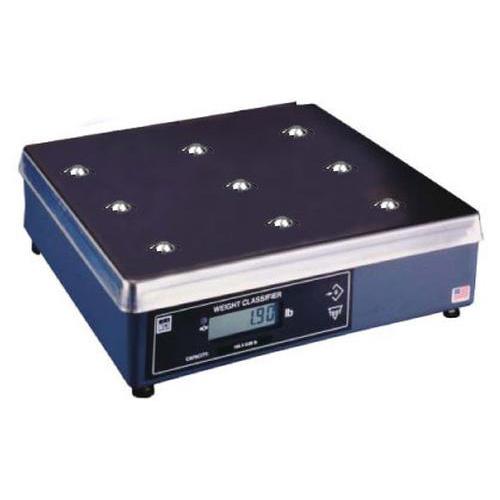

NCI 7820 Series 9503-16509 Shipping Scale Legal for trade with Ball Top 100 lb x 0.02 lb |
|
The 7820 is simple to use, durable, accurate and reliable. This NTEP approved scale fits into any operation as a stand-alone scale, interfaced to a shipping manifest software, or receiving station. more ... |
Shipping and Receiving >
Postal Scale >
51-100 Pound Capacity
|
|
|
|
Features
The 7820 is simple to use, durable, accurate and reliable. This NTEP approved scale fits into any operation as a stand-alone scale, interfaced to a shipping manifest software, or receiving station.
- Display Controls– ZERO: Includes Auto Zero Tracking or Manual push button to re-establish zero reference. TEST: Runs a diagnostic test to ensure scales is fully functional, and allows a real-time view of internal settings.
- Construction– Stainless steel weight platter, die cast aluminum base
- Field Calibration– Alternate span points can simplify field calibration by using less than full capacity weights. Can be set-up as either decimal pound or kilogram.
- RS-232 Cable– Included with each scale, DB 9-pin, null modem, female connector allows you to connect to a PC
- Emulation Protocols– Standard NCI default with field configurable settings of 8213, 3835, SMA, and Auto Weight Send. This allows you to select compatible scale communication settings or scale drivers during field installation when interfacing with shipping software programs or host devices.
- Internal Display– 1/2" high, 6 digit LCD
7820R Remote Display
- Remote Display– Six-digit LCD display housed in an extruded enclosure with a 7 cable, connected via RJ45 connector on the rear of the scale
- Remote Display Bracket– Front mounted, using velcro strips to attach the remote display to base
Weight:
27.00 lb
|
|
Other NCI Model 7820 / 7820R Parcel Shipping Scales
|
Specifications
Model |
7820 9503-16504 |
7820 9503-16509 |
7820 9503-16505 |
7820 9503-16510 |
7820R 79503-17229 |
7820R 9503-17230 |
Capacity x Readability |
100 lb x 0.02 lb |
100 lb x 0.02 lb |
150 lb x 0.05 lb |
150 lb x 0.05 lb |
150 lb x 0.05 lb |
150 lb x 0.05 lb |
50 kg x 0.01 kg |
50 kg x 0.01 kg |
60 kg x 0.02 kg |
60 kg x 0.02 kg |
60 kg x 0.02 kg |
60 kg x 0.02 kg |
Legal For Trade |
Class III |
NTEP CC#95-070 |
Canada: MOI #AM-5076 Rev 2 |
Computer Interface |
RS232 |
RS232 |
RS232 |
RS232 |
RS232 |
RS232 |
Platter Type |
Flat Stainless Steel |
Stainless Steel Ball Top |
Flat Stainless Steel |
Stainless Steel Ball Top |
Flat Stainless Steel |
Stainless Steel Ball Top |
Platter Size |
12" x 14" |
12" x 14" |
12" x 14" |
12" x 14" |
12" x 14" |
12" x 14" |
Construction |
Stainless steel weight platter, die cast aluminum base |
Display |
1/2" high, 6 digit LCD |
Dimensions |
12.5" L x 14" W x 4" H 318 mm (L) x 358 mm (W) x 104 mm (H) |
Power |
120 VAC (+10% -15%), 60 Hz, standard 3-wire ground |
Operating Environment |
Temperature: 42° F to 104° F (5° C to 40° C) Relative Humidity: 10 to 95% (non-condensing) |
Input/Output |
RS-232, bi-directional, configurable 1200 – 19.2K baud. Transmits weight and scale status whenever ASCII “W” is sent by a remote device. |
|
|
|
|
|
|
|
