Minebea Puro® EF-IN4P Indicator |
|
| The Puro® weight indicator is suitable for a wide variety of industrial weighing tasks. A large, bright display, a traffic light function and five tactile keys ensure convenient operation of the powerful applications. User-friendliness is combined with simple charging and connection technology more ... |
|
Scales >
Indicators & Remote Displays >
Indicators & Remote Displays
|
|
|
|
|
|
Features

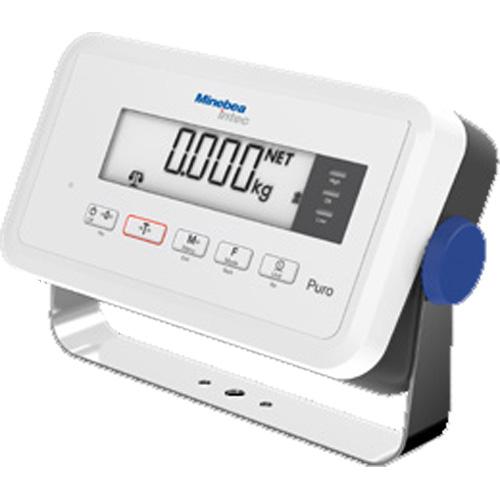

The Puro® weight indicator is suitable for a wide variety of industrial weighing tasks. A large, bright display, a traffic light function and five tactile keys ensure convenient operation of the powerful applications. User-friendliness is combined with simple charging and connection technology. The rechargeable lithium-ion battery is easy to change and provides operating time for up
Special characteristics
- Large display and a traffic light function for easy and comfortable weighing
- Instant stabilisation
- Highly developed battery with exceptional operating time
- Easy charging via USB-C
Exceptionally user-friendly weight indicator with powerful applications for versatile operations
- Large , bright display and a traffic light function for easy and comfortable weighing
- Instant stabilisation
- Highly developed battery with exceptional operating time
- Easy charging via USB-C
- The U-Bracket is within the scope of delivery
Dimensions
X:
19.50
Y:
15.75
Weight:
4.00 lb
|
|
Specifications
| Puro® Indicator |
| MODEL |
EF-IN4P |
| Displayed Resolution |
1:30,000 max |
| Material weight indicator |
P ABS housing |
| Application package |
Weighing, Counting, Check Weighing, Check Counting, Totalizing |
| Weighing units |
kg, g, lb, oz, lb:oz |
| Ingress protection rating |
IP43 |
| Display |
LCD display with white backlight, 1.4 in/35 mm height, 6 digits, 14-segment |
| Keypad |
5 mechanical keys |
| Zero range |
2 % or 10 % of full scale capacity |
| Tare range |
Full capacity by subtraction |
| Stabilization time |
1 second |
| Auto-zero tracking |
Off, 0.5, 1 or 3 divisions |
| Load cell excitation/input sensitivity |
5 V DC/up to 3 mV/V (min 1 ìV/d) |
| Load cell drive |
Up to four 350 Ù load cells |
| Power |
100 – 240 V – 50/60 Hz AC adapter or internal rechargeable lithium battery |
| Battery operation time |
Up to 500 hours operation time between recharges with 12 hour recharge time |
| Calibration |
External, with calibration weight |
| Interface |
Built-in USB-C, USB-A, RS232 |
| Operating temperature |
-10 °C to 40 °C |
| Product dimension |
230 × 128 × 59.5 mm (w × d × h) |
| Compliance electromagnetic compatibility |
FCC Part 15 Class B, IEC 61326-1 (emissions Class B, immunity Industrial requirements) |
|
|
|
|
* within the 48 continental US States
|
| |
|
|
|
|
