Mettler Toledo 30254729 Spectrophotometer UV5Nano |
|
| Qualitative and quantitative analysis with 1-2 µl samples. Ideal for life science applications such as concentration and purity determinations of DNA, RNA and protein samples using A280, A260, A260/A280, Bradford and BCA protein assays and more. more ... |
|
Laboratory Equipment >
Spectrophotometers >
Spectrophotometers
|
Note: This product can only be shipped Ground Delivery.
|
|
|
|
|
|
|
|
Features

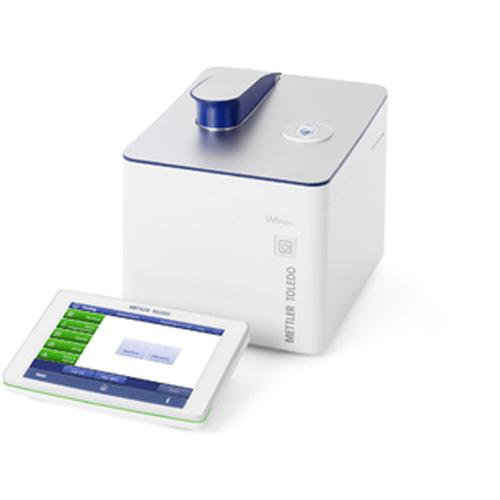

Spectrophotometer UV5Nano
DNA, RNA and Protein Quantitation.
Qualitative and quantitative analysis with 1-2 µl samples. Ideal for life science applications such as concentration and purity determinations of DNA, RNA and protein samples using A280, A260, A260/A280, Bradford and BCA protein assays and more.
- Accurate Microvolume Measurements - Only 1µL of sample is required for reliable measurements. Thanks to LockPath™ Technology, measurement accuracy is guaranteed and errors are avoided.
- Measure Wide Concentration Ranges Fast - Measurement is taken at two defined pathlengths, allowing a wide concentration range to be covered without further dilutions.
- Double Application Power - The UV5Nano is two instruments in one: you can perform micro-volume or cuvette measurements.
Keep Control of all Costs
With no moving parts in the optical set-up, the instrument is robust and easy to maintain.
Measurements within Seconds
Modern fiber optics are combined with a CCD array detector and Xenon flash lamp, allowing for a full spectrum scan within just 1 second.
Open Sample Area
Sample handling is fast and easy with the open sample compartment. Installation of accessories like holders is straightforward.
Clean Up Your Lab Bench
Compact layout of optical components allows for strikingly small footprint. Instrument can be operated as a standalone without the use of a PC.
|
|
Technical Specifications
Wavelength Range (nm)
190 nm - 1,100 nm
Photometric accuracy (K2Cr2O7)
+0.006 A
Wavelength accuracy
+0.9 nm
Resolution (Toluene in hexane)
>1.5
Stray light (KCl, 198nm)
>1.7
Compatibility with LabX Software
Yes
Options
Fingerprint Reader, Cuvettes, Handheld barcode scanner, USB-P25 printer, FillPalMini, LabX PC Software
Max. number of methods
50
Pharmacopeia compliant
No
Micro-volume measurements
YES
Languages
English, Italian, French, Russian, Portuguese, Chinese, German, Spanish, Japanese
Display
7 inch QVGA Color TFT touch sensitive screen
Displayed Resolution
800x400
Dimensions (HxWxD)
8.98 in x 8.19 in x 10.04 in (228 mm x 208 mm x 255 mm)
Weight (incl. Terminal)
7.2 kg
|
|
|
Other Mettler Toledo Spectrophotometer UV5 and UV7
|
Spectrophotometer UV5 and UV7 Specifications
| Model |
UV5 30254725 |
UV5Bio 30254728 |
UV5Nano 30254729 |
UV7 30254726 |
| Wavelength Range (nm) |
190 nm - 1,100 nm |
190 nm - 1,100 nm |
190 nm - 1,100 nm |
190 nm - 1,100 nm |
| Photometric accuracy (K2Cr2O7) |
±0.005 A |
±0.005 A |
±0.006 A |
±0.005 A |
| Wavelength accuracy |
±0.9 nm |
±0.9 nm |
±0.9 nm |
±0.5 nm |
| Resolution (Toluene in hexane) |
>1.5 |
>1.5 |
>1.5 |
>1.9 |
| Stray light (KCl, 198nm) |
>2 |
>2 |
>1.7 |
>2.3 |
| Compatibility with LabX Software |
Yes |
Yes |
Yes |
Yes |
| Options |
CuvetteChanger, Fingerprint Reader, Cuvettes, FillPalMini, Printer, LabX PC Software, CertiRef, Barcode Reader |
CuvetteChanger, Fingerprint Reader, Cuvettes, Handheld barcode scanner, Printer USB-P25, FillPalMini, LabX PC Software, CertiRef |
Fingerprint Reader, Cuvettes, Handheld barcode scanner, USB-P25 printer, FillPalMini, LabX PC Software |
CuvetteChanger, Fingerprint Reader, Cuvettes, Handheld barcode scanner, Printer USB-P25, FillPalMini, LinSet, LabX PC Software, CertiRef |
| Shortcuts per user |
24 |
| Max. number of methods |
50 |
100 |
| Pharmacopeia compliant |
- |
No |
No |
Yes |
| Kinetic Measurements |
- |
Yes |
Yes |
- |
| User Identification |
- |
Yes |
Yes |
Yes |
| Micro-volume measurements |
- |
No |
YES |
- |
| Bio applications |
- |
Yes |
Yes |
- |
| Languages |
English, Italian, French, Russian, Portuguese, Chinese, German, Spanish, Japanese |
| Minimal Scan time |
- |
1 s |
1 s |
1 s |
| Display |
7 inch QVGA Color TFT touch sensitive screen |
| Displayed Resolution |
800x400 |
| Dimensions (HxWxD) |
8.98 in x 8.19 in x 10.04 in (228 mm x 208 mm x 255 mm) |
| Optics |
Array |
- |
Array |
| Light Source |
Xenon flash lamp |
- |
Xenon flash lamp |
| Application |
Water, Color, Scan, Quant |
Water, Kinetic, Color, Bio, Scan, Quant |
- |
Water, Kinetic, Pharma, Color, Scan, Quant |
| Weight (incl. Terminal) |
4.25 kg |
4.25 kg |
7.2 kg |
6.4 kg |
| Cuvette Changer |
No |
Yes |
- |
|
|
|
|
