Mark-10 MR55-5000 Square Drive Torque Sensor, 5,000 lbFin |
|
| This rugged series of torque sensors is ideal for a wide range of torque testing applications in numerous industries. Square drives on both ends permit inline use with a torque wrench, or for use in OEM and other applications. Ranges available up to 5,000 lbFin (550 Nm). more ... |
|
Test Equipment >
Force Gauges >
Torque Sensors
|
|
|
|
|
|
Features
This rugged series of torque sensors is ideal for a wide range of torque testing applications in numerous industries. Square drives on both ends permit inline use with a torque wrench, or for use in OEM and other applications. Ranges available up to 5,000 lbFin (550 Nm).
FEATURES & SPECIFICATIONS
- Rugged cylindrical design

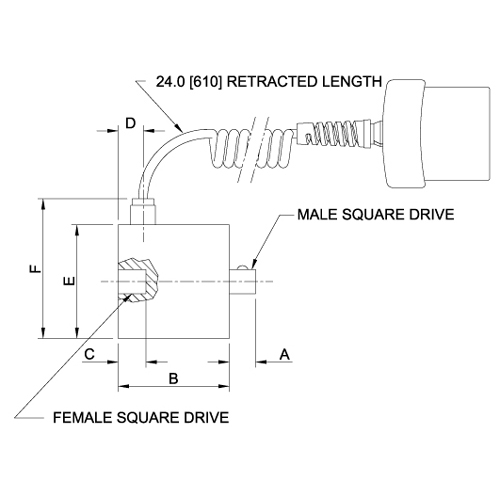

- Square drives on each end

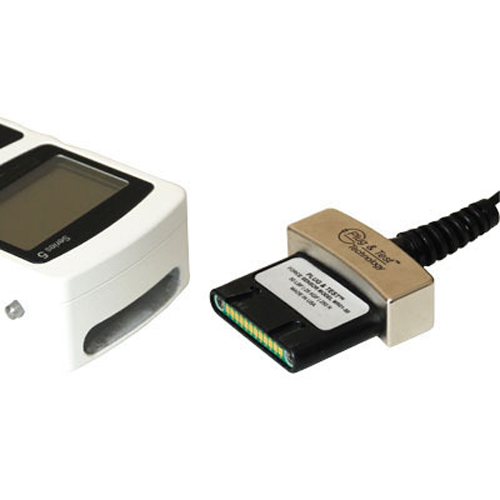

- Member of the Plug & Test™ family of interchangeable sensors and indicators
- Stainless steel and aluminum construction
- NIST-traceable certificate of calibration with data included
- Accuracy: ± 0.6% of full scale + indicator

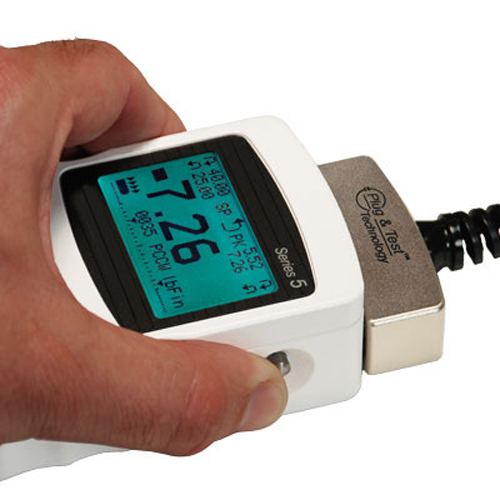

Capacity x Resolution with Models 7i and 5i Indicators
| MODEL |
lbFin |
ozFin |
lbFft |
kgFmm |
Ncm |
Nm |
| MR55-20 |
20 x 0.02 |
320 x 0.2 |
1.5 x 0.002 |
-- |
220 x 0.2 |
2 x 0.002 |
| MR55-50 |
50 x 0.05 |
800 x 0.5 |
4 x 0.005 |
-- |
570 x 0.5 |
5.7 x 0.005 |
| MR55-100 |
100 x 0.1 |
1600 x 1 |
8 x 0.01 |
-- |
1150 x 1 |
11.5 x 0.01 |
| MR55-200 |
200 x 0.2 |
-- |
16 x 0.02 |
2300 x 2 |
2200 x 2 |
22 x 0.02 |
| MR55-400 |
400 x 0.5 |
-- |
32 x 0.05 |
4600 x 5 |
4500 x 5 |
45 x 0.05 |
| MR55-1000 |
1000 x 1 |
-- |
80 x 0.1 |
11500 x 10 |
11000 x 10 |
110 x 0.1 |
| MR55-5000 |
5000 x 5 |
-- |
400 x 0.5 |
55 x 0.05 kgFm |
55000 x 50 |
550 x 0.5 |
Capacity x Resolution with Model 3i Indicator
| MODEL |
lbFin |
ozFin |
kgFmm |
Ncm |
| MR55-20 |
20 x 0.02 |
320 x 0.5 |
-- |
220 x 0.2 |
| MR55-50 |
50 x 0.05 |
800 x 1 |
-- |
570 x 0.5 |
| MR55-100 |
100 x 0.1 |
1600 x 2 |
-- |
1150 x 1 |
| MR55-200 |
200 x 0.2 |
-- |
2300 x 2 |
2200 x 2 |
| MR55-400 |
400 x 0.5 |
-- |
4600 x 5 |
4500 x 5 |
| MR55-1000 |
1000 x 1 |
-- |
11500 x 10 |
11000 x 10 |
| MR55-5000 |
5000 x 5 |
-- |
55 x 0.05 kgFm |
550 x 0.5 Nm |
Weight:
5.00 lb
|
3 Year Manufacture Warranty
|
