Mark-10 ESM Motorized Test Stand |
|
| Versatile and precise test stand for compression & tensile force testing with modular design. Adjustable speed with a remote control unit. With a manual fine adjustment knob and stepper motor more ... |
|
Test Equipment >
Force Test Stands >
Motorized Test Stands
|
|
|
|
|
|
Features

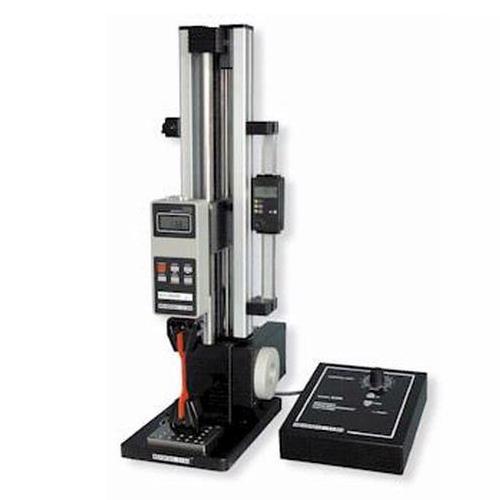

The Mark-10 ESM Motorized Force Measurement Test Stand is a versatile and precise testing solution for most compression and tensile testing applications up to 200 lb. It can accept a wide variety of sample shapes and sizes and can be configured in many positions due to modular design.Speed is adjustable in up and down directions and a remote control unit provides added safety during testing. Other features include a manual fine adjustment knob and a stepper motor that prevents speed variation with load, making testing precise and repeatable. Use this test stand with any Mark-10 force gauge and grips to create a complete testing solution.
Features / Specifications:
- Maximum force: 200 lb [1kN]
- Maximum travel: 13 [330 mm]
- Speed range: 0.5-13 in/min [13-330 mm/min]
- Speed accuracy: ±5% of setting, ±0% variation with load
- Remote control console with a 3 [1 M] cable
- Universal power supply: 80-250 VAC
- Manual travel knob
- Mounting holes for bench mounting
- Removable base plate with 25 #10-32 threaded holes for fixture mounting
- Base may be removed for alternative mounting
The Mark 10 ESM motorized test stand is supplied with a small hook, medium hook, 2 diameter compression plate, extension rod, and #10-32 coupler
A wide range of force gauges and gripping fixtures
Digital travel display - 6 [152 mm] travel, 0.0005 [0.01 mm] resolution, 0.001 [0.03 mm] accuracy, SPC output for automated data collection
Limit switch kit - Set of upper and lower adjustable solid state limit switches. Repeatable to within 0.001 [0.03 mm].
Overload protection module - Protects the force gauge against accidental overloads during motorized tests. Adjustable from 20 - 110% of gauges capacity. Compatible with all Mark-10 force gauges with outputs.
Set point cable - Stops test stand travel at programmable high and low set points for tension and compression forces, programmed on a compatible force gauge.
Column extensions - Available in 6, 12, 24, and custom lengths
Custom speed ranges - Speeds can be modified to as slow as 0.02 in/min [0.5 mm/min] or as fast as 45 in/min [1143 mm/min]. Note that in some cases, the maximum force will be affected. Contact us at 800-832-0055 for details
| Model |
Capacity x resolution |
Price |
| ESM |
Motorized Test STand, 200 lb, 110V |
$2375 |
| ESM001 |
Digital travel display, 6 in x 0.0005 in (150 x 0.01 mm) |
$665 |
| ESM002 |
Limit switch kit for ESM |
$380 |
| ESM003-1 |
6 inch column extension for ESM / ES30 |
$142 |
| ESM003-2 |
12 inch column extension for ESM / ES30 |
$166 |
| ESM003-3 |
24 inch column extension for ESM / ES30 |
$190 |
| 11-1042 |
Overload protection module, gauge to test stand |
$185 |
| 09-1090 |
Cable, set point, gauge to test stand |
$137 |
Weight:
30.00 lb
|
|
|
| |
|
