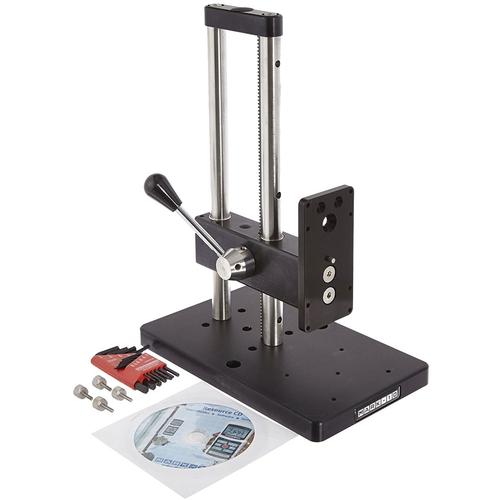

Mark-10 ES10 Manual Test Stand, 100 lb, Lever Operated |
|
| Compact and economical solutions for compression and tensile testing of small samples. Choose between a lever (ES10) for quick-action testing or a hand wheel (ES20) for more precise testing with greater consistency in testing results more ... |
|
Test Equipment >
Force Test Stands >
Horizontal Test Stand
|
|
|
|
|
|
Features
The Mark10 ES10 and ES20 manual test stands are compact and economical solutions for compression and tensile testing of small samples. Choose between a lever (ES10) for quick-action testing or a hand wheel (ES20) for more precise testing with greater consistency in testing results. An optional dial indicator kit displays up to 1 of displacement. Use these stands with force gauges and grips to create complete and economical testing systems.
Features / Specifications:
- Small size
- Compatible with all Mark-10 force gauges, accessories and grips
- Mounting holes for bench mounting
- Large, removable baseplate with 5 #10-32 UNF holes for fixture mounting
Optional Equipment
- A wide range of force gauges and gripping fixtures
- Dial indicator kit (shown right) - Displays 1 [25.4 mm] of displacement in increments of 0.001
| Model |
Capacity x resolution |
Price |
| ES10 |
Test stand, lever-operated, 100 lb |
$470 |
| ES20 |
Test stand, hand wheel operated, 100 lb |
$565 |
| ES001 |
Dial indicator kit, 1" travel |
$133 |
| ESM003-1 |
6" Column extension for ESM/ES30 |
$142 |
| ESM003-2 |
12" Column extension for ESM/ES30 |
$166 |
| ESM003-3 |
24" Column extension for ESM/ES30 |
$190 |
|
|
Other Mark 10 ES Manual Lever Operated Test Stands
|
|
|
|
|
|
* within the 48 continental US States
|
|
Optional Accessories
more info
|
Mark-10 ES001 Dial Indicator Kit
Dial indicator kit - Displays 1 [25.4 mm] of displacement in increments of 0.001
|
|
more info
|
Mark-10 G1039 Thread Adapter, 200 lb
For use between a force gauge and another attachment or grip. Use them with a force gauge and a test stand to create a complete testing system.
| Model |
Capacity (lb / N) |
A |
B |
|
| G1050 |
100 / 500
|
0.75 / 19.1 |
#4-40M |
#10-32F |
| G1051 |
0.6 / 15.2 |
#4-40M |
#10-32M |
| G1039 |
200 / 1000
|
0.75 / 19.1 |
#10-32F |
#10-32F |
| G1030 |
0.5 / 12.7 |
5/16-18M |
#10-32F |
| G1047 |
0.75 / 19.1 |
#10-32M |
M4F |
| G1048 |
0.75 / 19.1 |
M4M |
#10-32F |
| G1040 |
500 / 2500
|
1.0 / 25.4 |
5/16-18M |
5/16-18M |
| G1037 |
1.0 / 25.4 |
5/16-18F |
5/16-18F |
| G1049 |
1.25 / 31.8 |
M6M |
5/16-18F |
| G1041 |
1000 / 5000
or
500 / 2500* |
1.0 / 25.4 |
1/2-20M |
5/16-18M |
* 1000 / 5000 when used in compression. 500 / 2500 when used in tension
|
|
more info
|
Mark-10 ES002 Digital Indicator Kit
1” displacement, 0.0005” / 0.01 mm resolution. Includes zero and in/mm selector buttons. Mounts onto the test stand and can be repositioned.
|
|
|
|
|
|
|
|
