MSI MSI-4260C-50000 Port-A-Weigh MSI-4260 Legal for Trade 50,000 x 10 lb
After three decades of production, added advancements, and thousands of worldwide installations, the next generation Port-A-Weigh embedded with ScaleCore technology continues to reign as the industry standard. Along with Port-A-Weigh, the MSI product offering features the most comprehensive line of industrial crane scales and specialized overhead weighing solutions more ...
A Wireless, Digital Crane Scale
The Industry Standard for Overhead Weighing
After three decades of production, added advancements, and thousands of worldwide installations, the next generation Port-A-Weigh embedded with ScaleCore technology continues to reign as the industry standard. Along with Port-A-Weigh, the MSI product offering features the most comprehensive line of industrial crane scales and specialized overhead weighing solutions. For medium- to heavy-capacity and duty-cycle needs, the MSI-4260 meets or exceeds all industrial safety requirements, including OSHA, ANSI and ASME and is an economical choice for many bridge crane, foundry, and in-process material handling needs.

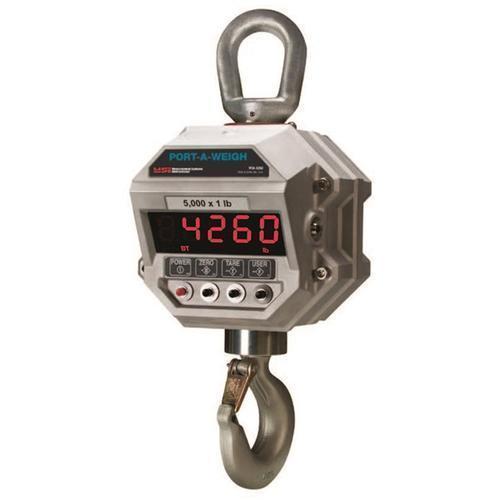

MSI-4260 Port-A-Weigh Industrial Crane Scale
Multi-color LED display
Top lifting eye or shackle, bottom thrust bearing swivel hook
12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard)
Options (Contact Scalesgalore for application consultation)
Rugged remote control (control for On/Off, Zero, Tare and other functions)
RF modem install for connectivity to MSI-8000, MSI-8000HD RF, MSI-8004HD RF remote display, TranSend™ and LaserLight2 remote display. Typically 100 to 300 ft, line of sight; for longer range consult factory
Anti-heat shielding for high temperature applications
Substitute bottom swivel hook with shackle
Oversized top lifting eye or shackle
Oversized bottom hook
Universal direct power supply; 85 to 265 VAC, 47 to 440 Hz / 130 to 300 VDC
Wi-Fi communication is available for specialty applications and for use with the ScaleCore Webserver
Low headroom top adapter
Audible alarm
Custom top and bottom interfaces
Factory Mutual and ATEX approved intrinsically safe models available
The MSI-8000 RF Remote Display: Wireless Control Made Easy
The MSI-8000 is a wireless remote display for viewing and control of any RF compatible MSI-3460 Challenger 3 or MSI-4260 Port-A-Weigh overhead crane scale, or MSI-7300 Dyna-Link 2 tension dynamometer. Just one MSI-8000 communicates wirelessly with up to four compatible MSI devices
Compact and portable, the MSI-8000’s heavy-duty NEMA 4/IP65 industrial-grade enclosure makes it ideal for use in nearly any operating environment. The MSI-8000 features a large five-digit 1.25 inch (31 mm) LCD display for improved visibility, and a user-friendly keypad for simple configuration and operation. Standard function keys include: Power, Zero, and Tare and three programmable keys for functions like Peak Hold, Totalizing, Unit Select, Print and Setpoints.
The MSI-8000 operates on a license-free 2.4 GHz frequency with a typical application range exceeding 100 feet (33 m). Power is supplied by an internal rechargeable lithium polymer battery, which provides up to 24 hours continuous use between charging. An integrated RS-232 data port allows the MSI-8000 to easily interface with peripheral devices such as printers, PCs and scoreboards
Fortified by the acclaimed reputation of its star precursor, MSI-8000HD is the heavyduty version of the reputable handheld MSI-8000 RF Remote Display. The milled anodized aluminum, IP68-rated, enclosure is mountable in either a direct panel mount or optional tilt stand. The full waterproof construction resists most elements making it especially appealing to the petro-chemical, energy, marine, and aerospace industries. Fully compatible with all MSI ScaleCore-based crane scales and dynamometers, the MSI-8000HD provides utmost versatility for any application.
Fully ergonomic with user-definable function keys and a bold six-digit one inch display ease usability and readability. Process control, safety and other systems benefit with optional relays installed to optimize workflow and operator ease. The MSI-8000HD-1 and MSI-8000HD-2 may be used as a fully functional weigh meter with the standard inclusion of a precision 24-bit A/D. Additionally, the MSI-8000HD-2 has RF capability to transmit data to a secondary MSI-8000 or non-A/D MSI-8000HD.
Wi-Fi, Ethernet, or serial option cards are available for direct connections to networks and computers for advanced traceability and reporting
IP68 Rugged Milled Aluminum enclosure
Membrane Keypad for User Control Functionality
User Definable Function Keys for added versatility
Indicator or RF remote display with six-digit 1.0 in (26.4 mm) LCD screen
IP68 milled aluminum enclosure
Membrane keypad for remote-control functionality
User definable function keys for added versatility
Compatible with all ScaleCore™-based products including: MSI-7300 Dyna-Link 2, MSI-3460 Challenger 3, MSI-4260 Port-A-Weigh, MSI-7000 and MSI-7001
MSI 173014 MSI-Rugged Remote Control for Products
Compatible with all ScaleCore™-based products including: MSI-7300 Dyna-Link 2, MSI-3460 Challenger 3, MSI-4260 Port-A-Weigh, MSI-7000 and MSI-7001 TranSend™, MSI-9600HT and MSI-6360 Four button interface: Power, Zero, Tare, Function Requires RF modem
Prominently display weight, numeric data and messages with the
LaserLight2 remote display. A super-bright LED display with non-glare
lens provides sharp seven-segment, six-digit characters that are easy to
read. Never lose visibility in dark conditions or experience wash-out in
direct sunlight. Simply power up a LaserLight2 remote display in your
application and the benefits are clearly visible.
A redesigned enclosure provides easy access to internal
components. The front panel swings open for
convenient setup and service, yet
is securely held in place.
The weather-tight, IP66
rated enclosure provides
superior protection for
worry-free daily use. The
external keypad makes
navigating configuration
options safe and easy
with up, down, left and
right arrow keys as well as Enter, Setup, Mode, Set and Learn buttons.
Available in four-inch or six-inch character sizes, LaserLight2 remote displays
include annunciators for gross, net, pounds, and kilograms. For added
convenience, time and date is also included.
Standard Features
Six high-intensity red digits (double-row discrete LED)
Auto Learn mode of communication protocol
Hold displayed weight (demand input)
Software selectable standstill mode for no updates while in motion
Mirror (reverse image) feature, auto mode
Durable weather-tight IP66 enclosure
Adjustable daylight/night intensity
Non-glare contrast filtered lens
RS-232, 20 mA, and RS-485 communications
Auto sensing 115/230 VAC power supply
PEMs locations accomdate flange or VESA mounting brackets
6-digit, 7-segment discrete oval precision optical
performance red LED lamps Contrast enhanced optical filtering lens 1- or 2- place decimal or comma indication 4 annunciators for GR, NT, lb, kg 4-inch red, green ball/arrow in Stop/Go model
Maximum
Viewing Distance
4-inch: 200 ft (60 m)
6-inch: 300 ft (100 m)
Input Interface
RS-232, RS-485, 20 mA current loop
(active or passive, switch selectable)
Input Data Format
Baud Rate: 1200, 2400, 4800, 9600 and 19,200
self-learning or software selectable
Character Format
7 or 8 data bits; even, odd, or no parity; 1 or 2 stop bits,
self-learning or software selectable
Update
Continuous or out-of-motion only; software selectable
Power Consumption
4-inch: 21 watt 6-inch: 27 watt
Time
Software enable/disable, 12- or 24-hour format
Date
Software enable/disable, US or ISO format
Rating/Material
IP66 Weather tight, mild steel, black powder coated
Dimensions
4-inch (L x H): 22.28 in x 9.8 in 6-inch (L x H): 30.63 in x 12.77 in Stop/Go (L x H): 30.63 in x 12.77 in (flanges add 3.16 inches in width)
Weight
4-inch: 20 lb (9 kg) 6-inch and Stop/Go: 25 lb (11 kg)
Prominently display weight, numeric data and messages with the
LaserLight2 remote display. A super-bright LED display with non-glare
lens provides sharp seven-segment, six-digit characters that are easy to
read. Never lose visibility in dark conditions or experience wash-out in
direct sunlight. Simply power up a LaserLight2 remote display in your
application and the benefits are clearly visible.
A redesigned enclosure provides easy access to internal
components. The front panel swings open for
convenient setup and service, yet
is securely held in place.
The weather-tight, IP66
rated enclosure provides
superior protection for
worry-free daily use. The
external keypad makes
navigating configuration
options safe and easy
with up, down, left and
right arrow keys as well as Enter, Setup, Mode, Set and Learn buttons.
Available in four-inch or six-inch character sizes, LaserLight2 remote displays
include annunciators for gross, net, pounds, and kilograms. For added
convenience, time and date is also included.
Standard Features
Six high-intensity red digits (double-row discrete LED)
Auto Learn mode of communication protocol
Hold displayed weight (demand input)
Software selectable standstill mode for no updates while in motion
Mirror (reverse image) feature, auto mode
Durable weather-tight IP66 enclosure
Adjustable daylight/night intensity
Non-glare contrast filtered lens
RS-232, 20 mA, and RS-485 communications
Auto sensing 115/230 VAC power supply
PEMs locations accomdate flange or VESA mounting brackets
6-digit, 7-segment discrete oval precision optical
performance red LED lamps Contrast enhanced optical filtering lens 1- or 2- place decimal or comma indication 4 annunciators for GR, NT, lb, kg 4-inch red, green ball/arrow in Stop/Go model
Maximum
Viewing Distance
4-inch: 200 ft (60 m)
6-inch: 300 ft (100 m)
Input Interface
RS-232, RS-485, 20 mA current loop
(active or passive, switch selectable)
Input Data Format
Baud Rate: 1200, 2400, 4800, 9600 and 19,200
self-learning or software selectable
Character Format
7 or 8 data bits; even, odd, or no parity; 1 or 2 stop bits,
self-learning or software selectable
Update
Continuous or out-of-motion only; software selectable
Power Consumption
4-inch: 21 watt 6-inch: 27 watt
Time
Software enable/disable, 12- or 24-hour format
Date
Software enable/disable, US or ISO format
Rating/Material
IP66 Weather tight, mild steel, black powder coated
Dimensions
4-inch (L x H): 22.28 in x 9.8 in 6-inch (L x H): 30.63 in x 12.77 in Stop/Go (L x H): 30.63 in x 12.77 in (flanges add 3.16 inches in width)
Weight
4-inch: 20 lb (9 kg) 6-inch and Stop/Go: 25 lb (11 kg)
The MSI-8004HD has all of the heavy duty versatility of the MSI-8000HD with the added beneft of extreme high visibility in indoor and outdoor applications. The MSI-8004HD features 1.5-inch high characters on its LED display. The display is available in either red/green, allowing the controller to be clearly visible in many environments. The red/green display can be confgured to change color based on weight and setpoint conditions, making the MSI-8004HD a natural t for safety-critical industrial applications.
The milled anodized aluminum, IP65-rated enclosure is mountable in either a direct panel mount or included tilt stand. The MSI-8004HD is highly adaptable for integration with overhead crane weighing systems, providing visibility for crane cab and ?oor operators. The MSI-8004HD is compatible with all MSI-ScaleCore™ crane scales, dynamometers and TranSend™ systems. The meter version can also be used with any standard load cell or scale base, supporting up to four independent measurement channels.
LED display
IP65 rugged milled aluminum enclosure
Backlit membrane keypad for user functioning and controls
Tilt bracket included
Color changing display (via setpoints)
Wi-Fi, Bluetooth® or serial RF options are available for direct connections to networks and computers. The MSI-8004HD includes user-depnable function keys, and optional relays for safety, operator interfaces and process work ?ow. The MSI-8004HD meter can also be a functional weigh controller with the inclusion of a precision, four-channel multi-deck 24-bit A/D.
Options (Contact Scalesgalore)
Expanded relay outputs
Battery pack for mobile operation
Second radio module for additional network connectivity
