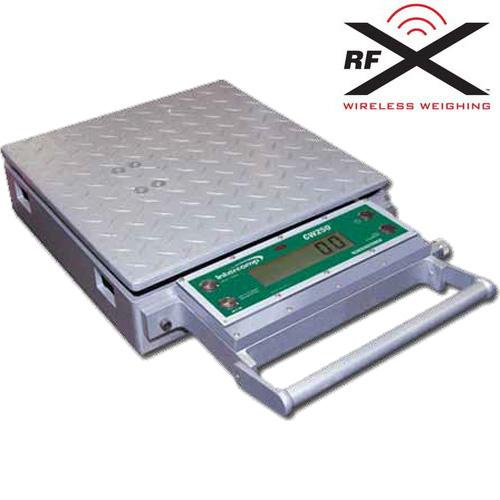

Name: Intercomp CW250 100175-RFX 24x24x4 In Legal for Trade Platform Scale 500 x 0.2 lb
Brand: Intercomp
SKU: 27066
Price: 1525.50 USD
Availability: InStock
Rating: 5 (1 reviews)

Manufacturers

Other Products

Intercomp CW250 100175-RFX 24x24x4 In Legal for Trade Platform Scale 500 x 0.2 lb
Integrated RFX™ Wireless Weighing Technology makes the CW250™ Scale is ideal for weighing 55 gallon drums, chlorine cylinders, propane bottles, freon/puron tanks, hazardous medical waste and other liquid or gaseous containers. Wireless weighing improves safety and scale can be controlled from the optional Handheld RFX™ Wireless Weighing Indicator. NTEP Approved Models Available* more ...

Industrial Scales > Bench Scales > Low Profile Bench Scales

Intercomp CW250 100175-RFX 24x24x4 In Legal for Trade Platform Scale 500 x 0.2 lb

Specifications Chart View Full Detail Page

Have Questions?

email Us

Our Staff will be glad to help

Intercomp CW250 100175-RFX 24x24x4 In Legal for Trade Platform Scale 500 x 0.2 lb

Price: $1,525.50

Out of Stock

Optional Accessories

	Intercomp Part 340105 Thermal Printer, Roll, Battery or AC Operation for Intercomp CS750, CS1500 & CS3000, TL6000 & CW250 & PT600 (Need 101165 cable) , $535.50

	Intercomp Part 100449 Ramp (Cast aluminum) 15 x 15 inches , $233.10

	Intercomp Part 100183 Transport Wheels (two per platform) for Intercomp CW250 , $157.50

	Intercomp Part 100480 Universal Charger for Intercomp CW250, PT300 , $160.00

	Intercomp Part 101165, Cable for 340105 Printer , 15 ft. , $175.50

	Intercomp Part 101234, Serial Output USB cable for CW250, CW250 RFX, 15 ft. , $130.50

View Features

Intercomp
SKU: 100175RFX

Features

Portable Platform Scale is Ideal for Weighing Tanks, Drums, Boxes, Cylinders & Hazardous Waste

Intercomp’s CW250™ Platform scales are equipped with Fully Integrated RFX™ Wireless Weighing Technology and are ideal for a variety of weighing applications. Available in capacities ranging from 150lb (75kg) to 3,000lb (1,500kg), RFX™ Wireless CW250™ Platform Scales are offered in two platform sizes (15"x15"x4"/381x381x100mm and 24"x24"x4"/610x610x100mm), are battery operated, rugged and can be transported to any weighing application.

Compatible with These Intercomp Devices

Wireless Handheld Weighing Indicator - Easily process weight related data to monitor and control loads in a compact, handheld device.

PT20 CPU - Enclosed in a rugged, weather-resistant case, this portable weight management CPU features wireless communication and integrated printer; ideal for remote use

IntercompWeigh Software - Manage any weighing process, view scale data, customize layouts and generate reports in one, easy-to-use program.

S400 Display & Wireless Printer - Offers wireless communication with scales through the RFX™ Data Converter.

Other Intercomp CW250-RFX Platform Scales

CW250 100161-RFX 15x15x4 In Platform Scale 150 x 0.05 lb $1,660.50	CW250 100167-RFX 15x15x4 In Legal for Trade Platform Scale 300 X 0.1 lb $1,660.50	CW250 100168-RFX 15x15x4 In Legal for Trade Platform Scale 500 x 0.5 lb $1,660.50	CW250 100170-RFX 15x15x4 In Legal for Trade Platform Scale 1000 x 0.5 lb $1,660.50	CW250 100169-RFX 15x15x4 In Legal for Trade Platform Scale 500 x 0.2 lb $1,660.50
CW250 100171-RFX 15x15x4 In Legal for Trade Platform Scale 1500 x 0.5 lb $1,660.50	CW250 100172-RFX 15x15x4 In Legal for Trade Platform Scale 2000 x 1 lb $1,660.50	CW250 100162-RFX 24x24x4 In Platform Scale 150 x 0.05 lb $1,480.50	CW250 100174-RFX 24x24x4 In Legal for Trade Platform Scale 500 x 0.5 lb $1,525.50	CW250 100175-RFX 24x24x4 In Legal for Trade Platform Scale 500 x 0.2 lb $1,525.50 You are viewing this product
CW250 100176-RFX 24x24x4 In Legal for Trade Platform Scale 1000 x 0.5 lb $1,525.50	CW250 100177-RFX 24x24x4 In Legal for Trade Platform Scale 1500 x 0.5 lb $1,525.50	CW250 100178-RFX 24x24x4 In Platform Scale 2000 x 1 lb $1,525.50

Specifications

Models W/RFX	100161-RFX	100167-RFX	100168-RFX	100169-RFX	100170-RFX	100171-RFX	100172-RFX	101058-RFX	100162-RFX	100173-RFX	100174-RFX	100175-RFX	100176-RFX	100177-RFX	100178-RFX
Capacity X Graduation	150 x 0.05 lb	300 X 0.1 lb	500 x 0.5 lb	500 x 0.2 lb	1000 x 0.5 lb	1500 x 0.5 lb	2000 x 1 lb	3000 x 1 lb	150 x 0.05 lb	300 x 0.1 lb	500 x 0.5 lb	500 x 0.2 lb	1000 x 0.5 lb	1500 x 0.5 lb	2000 x 1 lb
Capacity X Graduation	75 x 0.02 kg	150 X 0.05 kg	250 x 0.2 kg	250 x 0.1 kg	500 x 0.2 kg	750 x 0.2 kg	1000 x 0.5 kg	1500 x 0.5 kg	75 x 0.02 kg	150 x 0.05 kg	250 x 0.2 kg	250 x 0.1 kg	500 x 0.2 kg	750 x 0.2 kg	1000 x 0.5 kg
Legal for Trade	-	YES	YES	YES	YES	YES	YES	-	-	YES	YES	YES	YES	YES	-
Platform Size	15"x15"x4" (381x381x100mm)								24"x24"x4" (610x610x100mm)
Weight	39 lb - 18 kg							45 lb - 20 kg	87 lb - 40 kg
Accuracy:	+/- 0.1%
General:	On/Off, Zero, Local/Total, Print/Accum
Outputs:	RS232/RS485
Outputs:	RFX™ Wireless Weighing Technology Provides Wireless Signal up to 300 (90m) Line of Sight
Display:	1" (25mm) LCD on Scale, .5" (12mm) on Indicator
Temperature:	-20° to 150°F (-28° to 65°C)
Battery:	4 x AA-Sized NiMH
Battery Life:	300 Hours

Optional Accessories

more info

Intercomp Part 340105 Thermal Printer, Roll, Battery or AC Operation for Intercomp CS750, CS1500 & CS3000, TL6000 & CW250 & PT600 (Need 101165 cable)

$535.50

This compact, fully featured, portable thermal printer is the perfect printer for your weighing system application.

The small, lightweight design ensures this printer can be used on the go, and its high speed, low noise mechanism is perfect for any environment.

This printer features a long life print head with high reliability, easy paper handling, a large capacity Lithium-ion rechargeable battery, and your choice of paper diameters up to 40mm.

GENERAL SPECIFICATIONS

Interface
- Serial Interface
Printing System
- Direct Thermal Printing
Printing Speed
- 50mm/Sec
Character matrix
- ASCII Code, Alphanumeric Characters, International Characters, Windows Code Page
Characters Per Line
- 32 - 42 Characters per Line, Two Font Size Choices
Paper Width
- 58 +/-0.5mm
Recommended Paper
- TF50-KS-E2D (Nippon Paper)
External dimensions
- 4.5"x4"x2.5"/116W x 104L x 63Hmm
- 5°C - 40°C, 41°F - 104°F
Weight
- Less Than 1lb

Printer Includes:

Printer
1 Sample Roll of Paper
AC Adapter
Battery
Serial Cable

Fully compatable with Intercomps CS750 Crane Scale, CS1500 Crane Scale, CS3000 Crane Scales, CS5000 Crane Scales, TL6000 Tension Link Scales, CW250 Cargo Scales, TB830 Twin Beam Scales, US840 U-Beam Scales, PT300 Wheel Load Scales, LP600 Low-Profile Wheel Load Scales, GP1000 Indicator, GP1200 Indicator, GP2000 Indicator, GP2000EM Indicator and the MS450 Mining Scale Systems.
