Intercomp CW250 100161-R Platform Scale with Wired Indicator 150 x 0.05 lb |
|
| Intercomp's CW250-R™ Platform scales. Available in capacities ranging from 150lb (75kg) to 3,000lb (1,500kg), CW250-R™ Platform Scales are available in two platform sizes (15"x15"x4"/381x381x100mm and 24"x24"x4"/610x610x100mm), are battery operated, rugged and can be transported to any weighing applicatio more ... |
|
Scales >
Industrial Scales >
Digital Platform Scales
|
|
|
|
This Item Contains the following items
|
|
|
|
|
Optional Warranty
|
Features

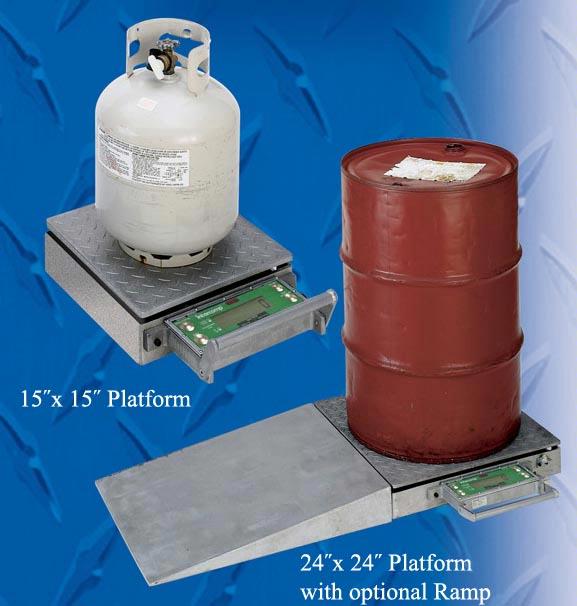

With its compact design, plus easy portability, the Intercomp Model CW250TM Scale is ideal for weighing 55-gallon
drums, chlorine cylinders, propane bottles, freon tanks, hazardous medical wastes and other liquid or gaseous containers.
But those are just a few uses. Think of the many other items in your plant that you can weigh with it. Portable Platform Scale is Ideal for Weighing Tanks, Drums, Boxes, Cylinders & Hazardous Waste

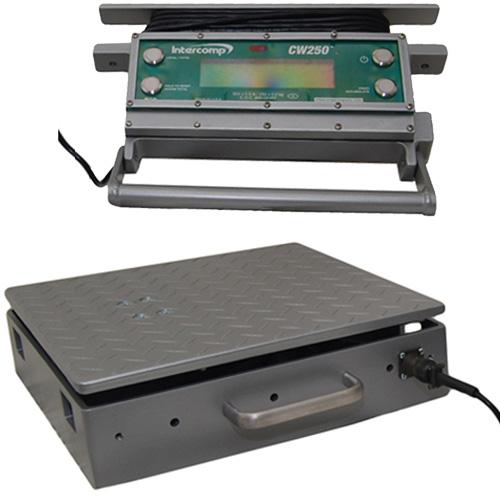

Intercomp’s CW250™ Platform scales are equipped with Wired Indcator and are
ideal for a variety of weighing applications. Available in capacities ranging from 150lb (75kg) to 3,000lb (1,500kg),
RFX™ Wireless CW250™ Platform Scales are offered in two platform sizes (15"x15"x4"/381x381x100mm and
24"x24"x4"/610x610x100mm), are battery operated, rugged and can be transported to any weighing application.
It’s available in fourteen high performance models with capacities ranging from 150 to 2,000 lb/75 to 1,000 kg. There
are two sizes of weigh platforms: 15” x 15” x 4” / 381 x 381 x 100 mm, and 24” x 24” x 4” / 610 x 610 x 100 mm.
This rugged, all aluminum, self-contained unit provides accuracy of ±0.1% (NTEP Class III) of applied load.
Fully battery operated, this Intercomp scale requires only infrequent recharging from any 12, 120 or 220 volt power
source (charger adapter and cable provided). To record weights, the scale will interface with an optional printer or
display (such as our P-DP printer or SA2000 display).
- Lightweight, portable and rugged
- Platform sizes:
15 x 15 or 24 x 24 inches/
381 x 381 or 610 x 610 mm
- Capacities from 150 - 2,000 lbs/
75 - 1,000 kg
- Stainless steel switches
- Self contained battery operated
Indicator standard or optional remote
- Handy ramps and transport wheels
- RS232 or RS485 output
- General purpose applications (also
weighs baggage and passengers!)
- Giant 1 inch/25 mm LCD Display
- Efficient design – 25 hours of
continuous operation
- Power down weight recall
- Infrared remote control
| CW250 Platform Scales with Attached Monitor |
| Model |
Description |
Capacity |
Graduation |
Weight |
| 100161 |
15"x15"x4" with attached monitor |
150 x 0.05 lb |
75 x 0.02 kg |
39 lb |
| 100167 |
15"x15"x4" with attached monitor |
300 x .1 lb |
150 x 0.05 kg |
39 lb |
| 100168 |
15"x15"x4" with attached monitor |
500 x .5 |
250 x 0.2 kg |
39 lb |
| 100169 |
15"x15"x4" with attached monitor |
500 x .2 lb |
250 x 0.1 kg |
39 lb |
| 100170 |
15"x15"x4" with attached monitor |
1000 x .5 lb |
500 x 0.2 kg |
39 lb |
| 100171 |
15"x15"x4" with attached monitor |
1500 x .5 kg |
750 x 0.2 kg |
39 lb |
| 100172 |
15"x15"x4" with attached monitor |
2000 x 1 lb |
1000 x 0.5 kg |
39 lb |
| 101058 |
15"x15"x4" with attached monitor |
3000 x 1 lb |
1500 x 0.5 kg |
45 lb |
| 100162 |
24"x24"x4" with attached monitor |
150 x .05 lb |
75 x 0.02 kg |
87 lb |
| 100173 |
24"x24"x4" with attached monitor |
300 x 1 lb |
150 x 0.05 kg |
87 lb |
| 100174 |
24"x24"x4" with attached monitor |
500 x .5 lb |
250 x 0.2 kg |
87 lb |
| 100175 |
24"x24"x4" with attached monitor |
500 x .2 lb |
250 x 0.1 kg |
87 lb |
| 100176 |
24"x24"x4" with attached monitor |
1000 x .5 lb |
500 x 0.2 kg |
87 lb |
| 100177 |
24"x24"x4" with attached monitor |
1500 x .5 lb |
750 x 0.2 kg |
87 lb |
| 100178 |
24"x24"x4" with attached monitor |
2000 x 1 lb |
1000 x .5 kg |
87 lb |
|
|
Other Intercomp CW250 with Remote Indicator
|
Specifications
| Models |
100161-R |
100167-R |
100168-R |
100169-R |
100170-R |
100171-R |
100172-R |
101058-R |
| Capacity X Graduation |
150 x 0.05 lb |
300 X 0.1 lb |
500 x 0.5 lb |
500 x 0.2 lb |
1000 x 0.5 lb |
1500 x 0.5 lb |
2000 x 1 lb |
3000 x 1 lb |
| 75 x 0.02 kg |
150 X 0.05 kg |
250 x 0.2 kg |
250 x 0.1 kg |
500 x 0.2 kg |
750 x 0.2 kg |
1000 x 0.5 kg |
1500 x 0.5 kg |
| Legal for Trade |
- |
YES |
YES |
YES |
YES |
YES |
YES |
- |
| Platform Size |
15"x15"x4" (381x381x100mm) |
| Weight |
39 lb - 18 kg |
45 lb - 20 kg |
| Accuracy: |
+/- 0.1% |
| General: |
On/Off, Zero, Local/Total, Print/Accum |
| Outputs: |
RS232/RS485 |
| Display: |
1" (25mm) LCD on Scale, .5" (12mm) on Indicator |
| Temperature: |
-20° to 150°F (-28° to 65°C) |
| Battery: |
4 x AA-Sized NiMH |
| Battery Life: |
300 Hours |
|
|
|
|
|
|
Optional Accessories
more info
|
Intercomp Part 100449 Ramp (Cast aluminum) 15 x 15 inches
Intercomp Part 100449 Ramp (Cast aluminum)15 x 15" - Sold Individually
|
|
more info
|
Intercomp Part 100183 Transport Wheels (two per platform) for Intercomp CW250
Intercomp Part 100183 Transport Wheels (two per platform) for Intercomp CW250
|
|
more info
|
Intercomp Part 100480 Universal Charger for Intercomp CW250, PT300
Intercomp Part 100480 Universal Charger PT for Intercomp CW250 & PT300
|
|
more info
|
Intercomp Part 340105 Thermal Printer, Roll, Battery or AC Operation for Intercomp CW250 (Need 101165 cable)
This compact, fully featured, portable thermal printer is the perfect printer for your weighing system application.
The small, lightweight design ensures this printer can be used on the go, and it's high speed, low noise mechanism is perfect for any environment.
This printer features a long life print head with high reliability, easy paper handling, a large capacity Lithium-ion rechargeable battery, and your choice of paper diameters up to 40mm.
GENERAL SPECIFICATIONS
- Interface
- Printing System
- Printing Speed
- Character matrix
- ASCII Code, Alphanumeric Characters, International Characters, Windows Code Page
- Characters Per Line
- 32 - 42 Characters per Line, Two Font Size Choices
- Paper Width
- Recommended Paper
- TF50-KS-E2D (Nippon Paper)
- External dimensions
- 4.5"x4"x2.5"/116W x 104L x 63Hmm
- 5°C - 40°C, 41°F - 104°F
- Weight
Printer Includes:
- Printer
- 1 Sample Roll of Paper
- AC Adapter
- Battery
- Serial Cable
Fully compatable with Intercomp's CS750 Crane Scale, CS1500 Crane Scale, CS3000 Crane Scales, CS5000 Crane Scales, TL6000 Tension Link Scales, CW250 Cargo Scales, TB830 Twin Beam Scales, US840 U-Beam Scales, PT300 Wheel Load Scales, LP600 Low-Profile Wheel Load Scales, GP1000 Indicator, GP1200 Indicator, GP2000 Indicator, GP2000EM Indicator and the MS450 Mining Scale Systems.
|
|
|
|
|
|
|
|
|
)
