Intercomp 181063-RFX PT300 6 Scale Sys Complete System w / Cables 30,000 X 5 lb |
|
PT300 scales have been setting the bar for portable, self-contained, compact wheel load scales for decades. Used to maximize legal payloads with concern for violations and reduction of maintenance due to overload stress on equipment, these all aluminum, fully electronic scales are capable of weighing up to 40,000lbs (18,000kgs) with an accuracy of ± 1%. more ... |
Wheel Weighing Scales >
Wheel Load Systems >
6 Scale Wheel Load System
|
|
|

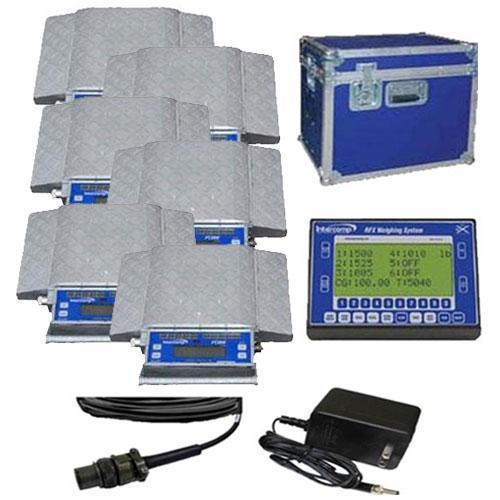

This Item Contains the following items
|
|
|
|
Features
PT300 Wheel Load Scales
Self-Contained, High-Capacity Portable Wheel Load Scales
The Industry Standard in Digital Wheel Load Weighing
PT300 scales have been setting the bar for portable, self-contained, compact wheel load scales for decades. Used to maximize legal payloads with concern for violations and reduction of maintenance due to overload stress on equipment, these all aluminum, fully electronic scales are capable of weighing up to 40,000lbs (18,000kgs) with an accuracy of ± 1%.
Progressive advancements in weighing technology have opened the doors to improving on this time-tested industry standard. Today, PT300 scales are built with fully integrated RFX Wireless Weighing Technology providing the ability for scale data to be received, recorded, and observed on a variety of indicators; as well as control scale functions remotely.
In addition, battery life has been significantly enhanced with the use of solar panels that will power the scales for up to a year before needing direct power charging with daytime outdoor use.
- 5,000 lb (2,500 kg) to 40,000 lb (20,000 kg) Pad Capacities
- Accuracy of ±1% of Reading
- Large, Easy-to-Read, LCD Display
- Solar Boost Provides up to One Year of Battery Life with Daytime, Outdoor Use
Compatible with These Intercomp Devices:
- Wireless Handheld Weighing Indicator - Easily process weight related data to monitor and control loads in a compact, handheld device.
- PT20 CPU - Enclosed in a rugged, weather-resistant case, this portable weight management CPU features wireless communication and integrated printer; ideal for remote use
- IntercompWeigh Software - Manage any weighing process, view scale data, customize layouts and generate reports in one, easy-to-use program.
- iVehicleWeigh Scale App - Input weight data into an iPhone, iPod or iPad to save and email information easily and conveniently.
- S400 Display & Wireless Printer - Offers wireless communication with scales through the RFX™ Data Converter.
|
|
Other Intercomp PT300 Wheel Load Scale Systems with 6 Scales
|
Specifications
PT300 Wireless Wheel Load Scale with RFX Wireless Weighing Indicator With Six Scales |
Model |
181008-RFX-K2 PT300 |
181003-RFX-K2 PT300 |
181004-RFX-K2 PT300 |
181005-RFX-K2 PT300 |
181006-RFX-K2 PT300 |
Connection Type |
RFX™ Wireless |
RFX™ Wireless |
RFX™ Wireless |
RFX™ Wireless |
RFX™ Wireless |
Wired |
Wired |
Wired |
Wired |
Wired |
Capacity |
40,000 x 50 lb (2 x 20,000 lb) |
40,000 x 20 lb (2 x 20,000 lb) |
40,000 x 10 lb (2 x 10,000 lb) |
20,000 x 5 lb (2 x 10,000 lb) |
10,000 x 5 lb (2 x 5000 lb) |
20,000 x 5 kg (2 x 10000 kg) |
20,000 x 10 kg (2 x 10000 kg) |
20,000 x 5 kg (2 x 10000 kg) |
10,000 x 2 kg (2 x 5000 kg) |
5000 x 2 kg (2 x 2,5000 kg) |
Legal for Trade |
YES |
- |
- |
- |
- |
Accuracy |
±1% of Reading |
Display |
Large, Easy-to-Read, 1 " (25mm) LCD Display with Backlight |
Push Button Controls |
On/Off, Local/Total, Zero & Print/Accum |
Power |
Solar Power Standard AA Rechargeable Batteries Provide up to 300 Hours of Continuous Use & Display Shows Battery Life |
Platform Size |
12 " x 12 " (305 x 305 mm) |
|
|
|
|
|
|
|
|
