Imada Z2S-DPU-1 Programmable Force Gauge, 18 oz

• Programmable high/low setpoints with color-coded indicators
• 256 Data memory for computer download
• External switch display freeze and zero clear
• RS-232C, Digimatic and Analog outputs
• Capacity up to 4400 lbs (push and pull)
• Accuracy ±0.2% F.S. ±1 digit
• Overload capacity 200% of F.S.
• Ergonomic, heavy duty metal construction
• Real time and peak mode (selectable)
• lb, Kg, and N units are push button selectable
• Tare function
• Overload alarm, low battery indicator
• Runs on internal NiCad batteries or AC adapter
• Full set of accessories, AC adapter/charger and carrying case included

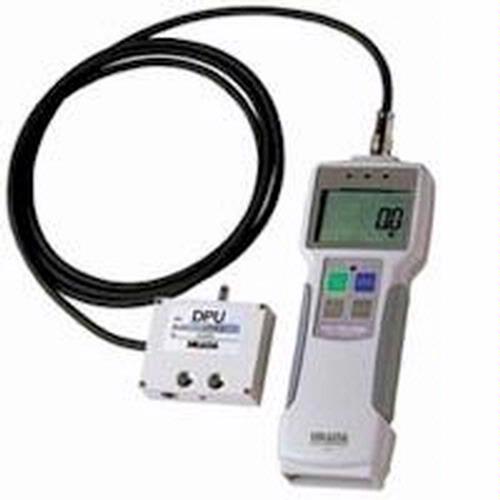

The Imada Z2S-DPU are high-performance digital force gauges that feature a separate sensor that is ideal for confined spaces or difficult to reach measurements. All standard sensors are good for both compression and tension. A standard six foot cable connects the gauge to the sensor.

The Imada Z2S-DPU force gauge offers programmable high/low setpoints for go/no-go testing. ORANGE lights up for measurements less than Low setpoint, GREEN for between High and Low setpoint, and RED for over High setpoint.

Store up to 256 values in memory, which can be displayed or transmitted using the serial output port. Use the real time mode to display load transients, or the peak mode to capture the peak force achieved during a test. Selectable measuring units of lbf, kgf, or Newtons.

Optional Data Buttons and Data Software
Imada DB-Series data input buttons work with Imada SW software to automate data collection from Imada force or torque gauges. Enter peak measurements into the spreadsheet and "zero" the gauge with a touch of the button. Minimize computer time and mouse useage.

Imada Z2S-DPU Specs

Z2S-DPU Ranges (Resolution) Accuracy +/-0.2% FS +/- 1 LSD
