Imada SH-750 Horizontal Wheel Test Stand |
|
| The SH Manual Horizontal Hand Wheel Force Measurement Test Stand is an ideal choice or push / pull tests where a horizontal setup is required. more ... |
|
|
|
|
|
|
|
Features

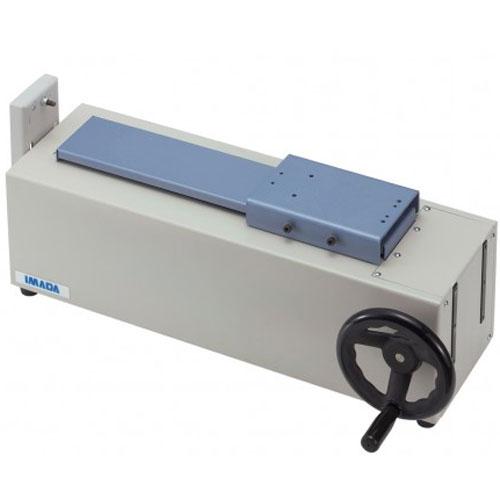

SH-750 Horizontal Wheel Test Stand
The SH Manual Horizontal Hand Wheel Force Measurement Test Stand is an ideal choice or push / pull tests where a horizontal setup is required. Horizontal setups are ideal for testing on large objects. The all metal construction of the test stand ensures a stable measurement platform. The SH series is available in two capacities, 220 lbf and 750 lbf.
The test stand features the advantages of the hand wheel design; relatively consistent speed, precise gauge positioning, and bi-directional movement. The low-profile SH-220 accepts any of the standard range Imada force gauges and special attachments.
SH-750 Standard Features
- Horizontal design is ideal for push / pull testing and other applications
- Hand wheel provides relatively consistent speed for repeatable tests
- Gauge remains in place when hand wheel is released
- One stand for both compression (push) and tension (pull) tests
- Stroke: 11.8? (300mm)
- Travel distance per wheel rotation 1.2mm
- Optional digital distance meter
Weight:
30.00 lb
|
|
Other Imada SH Horizontal Hand Wheel Test Stand
|
Specifications
| Features |
| Model |
Capacity |
Stroke |
Travel/Rotation |
| SH-110 or SH-110-S |
110 lbf |
- |
- |
| SH-220 or SH-220-S |
220 lbf |
11.8" (300mm) |
1.2mm |
| SH-750 or SH-750-S |
750 lbf |
14.5" (370mm) |
0.6mm |
|
|
|
|
|
|
| |
|
|
|
|
