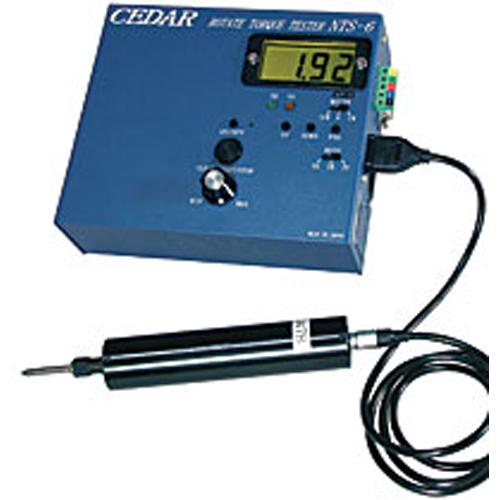

Imada NTS-6-S1oz Cedar Motorized Rotating Friction Torque Tester |
|
| NTS-6 is a motorized friction torque tester that tests the smoothness of rotation of bearings, tightness of oil seals, etc. while turning the sample. more ... |
|
Test Equipment >
Specialty Testers >
Torque Testers
|
|
|
|
|
|
Features
NTS-6 is a motorized friction torque tester that tests the smoothness of rotation of bearings, tightness of oil seals, etc. while turning the sample.
Torque data can be continuously output via RS-232 enabling you to display a torque profile using data acquisition software.
- Selectable units lbf-in, Kgf-cm, mN-m or N-m (except oz models)
- Peak, Real Time and Continuous Output modes (selectable)
- RS-232C output n Both CW and CCW operation
- Programmable high/low setpoints for Go/No Go testing
NTS-6 Ranges Accuracy: ±1% F.S., 1LSD
| Model |
NTS-6-S1oz |
NTS-6-S2oz |
NTS-6-S5oz |
NTS-6-S1 |
NTS-6-S2 |
NTS-6-S5 |
NTS-6-S10 |
NTS-6-S20 |
| Capacity |
ozf-in |
0.30 ~14.00 |
0.30 ~ 28.00 |
3.0 ~ 70.0 |
- |
- |
- |
- |
- |
| lbf-in |
- |
- |
- |
0.030 ~ 0.900 |
0.030 ~ 1.740 |
0.30 ~ 4.50 |
0.30 ~ 9.00 |
0.30 ~ 17.40 |
| kgf-cm |
- |
- |
- |
0.030 ~ 1.000 |
0.030 ~ 2.000 |
0.30 ~ 5.00 |
0.30 ~ 10.00 |
0.30 ~ 20.00 |
| mN-m |
- |
- |
- |
3.0 ~ 100.0 |
3.0 ~200.0 |
- |
- |
- |
| N-m |
- |
- |
- |
- |
- |
0.030 ~ 0.500 |
0.030 ~ 1.000 |
0.030 ~ 2.000 |
| Accuracy |
±1% F.S., 1LSD |
| Max. Speed (no-load) |
85rpm |
25rpm |
13rpm |
85rpm |
25rpm |
13rpm |
18rpm |
18rpm |
| Display |
4 digit LCD display |
| Operation |
Both CW and CCW motorized rotation |
| Measurement modes |
- PP: Peak Mode displays PEAK torque value that will not change until a higher value is measured.
- GO: Real Time Mode displays TRANSIENT torque values.
- RG: Output Torque Data every 1/100 seconds.
|
| Measurement start time |
Can be set up to 1 second in 0.1 second increments |
| Measuring time |
Time can be programmed between 1 and 20 seconds |
| Go/No go testing |
Programmable High and Low values; Green lamp (OK solid, NG blinking). |
| External input/output |
- Signal output (open collector): Go and No Go
- Data output: RS-232C (9600 baud) External start switch input
|
| Power supply |
AC100V~240V |
| Bit size |
4mm diameter |
HEX 6.35mm |
| Dimensions (indicator) |
165mm W × 110mm D × 58mm H |
| Dimensions (detector) |
28mm dia. × 155mm |
37mm dia. × 195mm |
28mm dia. × 155mm |
37mm dia. × 195mm |
40mm dia. x 235mm |
Weight:
10.00 lb
|
|
