Imada’s digital torque tester is ideal for calibrating power screwdrivers with torque control. It features peak mode to capture the peak torque achieved during a test, real time mode to display torque transients, and peak down mode to capture critical first peak value. Standard 3/8 inch drive is good for checking torque wrenches but not impact wrenches. All digital torque testers are sold in kit form complete with tester, hard carrying case, 2 smart driver adapters and AC charger/adapter. A calibration kit is also available.
Imada’s digital torque tester is ideal for calibrating power screwdrivers with a torque control clutch. It features peak mode to capture the peak torque achieved during a test, real time mode to display torque transients, and peak down mode to capture critical first peak value.
Standard 3/8" drive is good for checking torque wrenches but not impact wrenches.
All digital torque testers are sold in kit form complete with tester, hard carrying case, 2 smart driver adapters and AC charger/adapter.
- Programmable High/Low setpoints with audible beep for uniform torque tightening or GO/NO GO testing
- Peak, Real Time and Peak Down measuring modes (selectable)
- Selectable units lbf-in, Kgf-cm, N-cm and N-m
- USB data output (peak data only)
- Statistics: number of data, Max, Min, Avg
- Measure both clockwise and counterclockwise
- Heavy-duty metal construction
- Runs on internal NiCad batteries or AC adapter n 3/8" drive for socket wrenches
- 2 - driver adapters included: i-8 & i-80 come with smart adapters, CD-150 comes with spring adapters
Note: Do not use with impact or air tools (See the DI-1M impact wrench torque tester).
Smart driver adapters simulate screw tightening, eliminating the need for reversing the power driver which is required for conventional driver adapters
Model |
Capacity (Resolution) |
lb-in |
kg-cm |
N-cm |
| i-8 |
0.03 - 7.0 (0.001 lb-in) |
0.03 - 8.0 (0.001 kg-cm) |
0.3 - 80.0 (0.01 N-cm) |
| i-80 |
0.3 - 70.0 (0.01 lb-in) |
0.3 - 80.0 (0.01 kg-cm) |
3.0 - 800.0 (0.1 N-cm) |

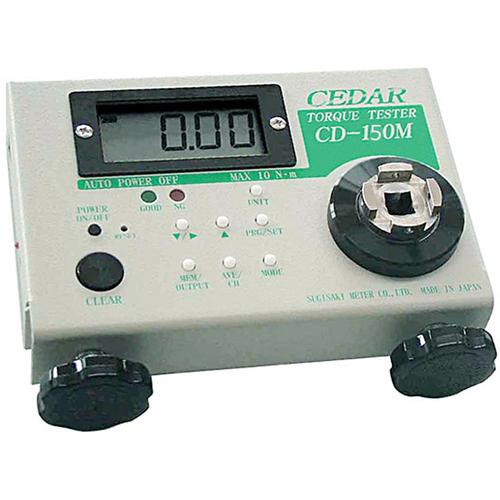

| CD-150M |
1.5 - 130.0 (0.1 lb-in) |
1.5 - 150.0 (0.1 kg-cm) |
15 - 1500 (1 N-cm) |
Standard Driver Adapters (2 included with tester)
| |
i-8 |
i-80 |
CD-150M |
| Adapter |
Smart Adapters |
Spring Adapters |
| |
|
|
|
| Model |
OW-025E |
OW-10E |
OW-20E |
OW-60E |
SJ-50 |
SJ-100 |
| Range lb-in |
2 |
9 |
18 |
52 |
8-50 |
50-130 |
| Mechanical life |
10000 hrs |
8000 hrs |
5000 hrs |
5000 hrs |
2500 times |
2500 times |
| Screw on top |
6-32 |
6-32 |
8-32 |
1/4-20 |
5/16-18 |
3/8-16 |
| Plug to socket |
3/8 inch square x 5/32 inch (20 mm square x 4 mm) |
Dimensions
X:
15.00
Y:
8.00
Z:
13.00
Weight:
10.00 lb
