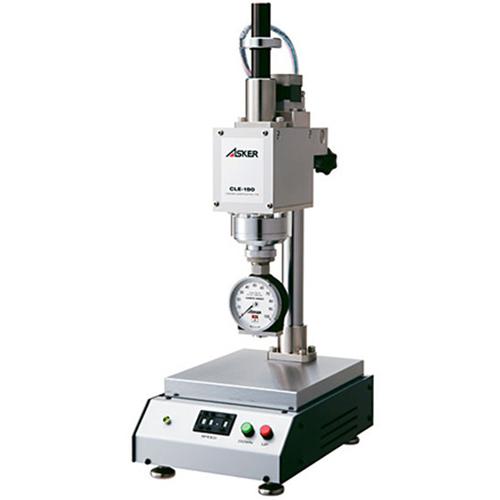

Hoto Asker CLE-150M Motorized Durometer Constant Load Test Stand - Type A, D and Asker C -1000g 5000g

CLE-150 Constant Load Stand with Flexible coupling eliminates different speed and load variables which occur when testing samples with a hand-held durometer. The test speed and load the durometer applies to rubber and plastic samples are kept constant with a pneumatic damper and a standard weight.

Flexible coupling - In addition, the unique flexible coupling on the CL-150 enables the presser foot of the durometer to make perfect contact even on samples with inclined surfaces. Conventional fixed joint testers incompletely contact inclined test samples, resulting in uneven pressure being applied by the durometer.

Choose a model with the appropriate hardness scale for the material you are testing. Mount a model EX or X durometer to the constant load stand for a full hardness testing system.

• Test speed and weight are constant
• Adjustable Test speed: 0.1~19.9 mm/sec in .1 mm increments
• Unique flexible coupling system automatically aligns the presser foot to the surface of sample
