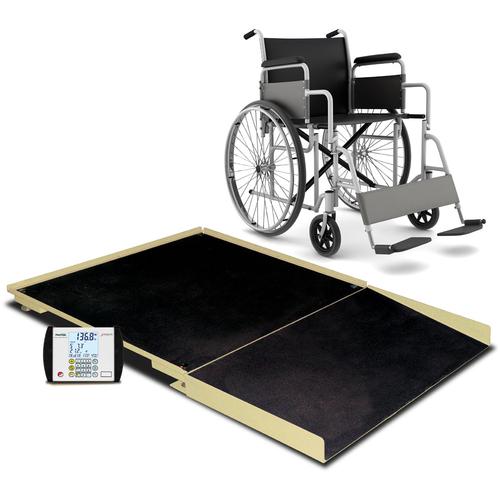

Detecto FHD-Series Wheelchair Scales / Bariatric Scales
(wheelchair not included)
The battery operated Ohaus FHD133II and FHD144II wheelchair scales have a nonskid, rubber platform and ramp. The large platform accomodates walk-on patients, wheelchairs, or straight-legged chairs. This large capacity scale can be mounted flush with the floor if desired. The remote digital weight display includes a 0.7" (18mm) high LCD readout with keypad tare and is suitable for desk or wall mount.
Includes NEW Detecto MV1 indicator (click here for specs)
Selectable units (lbs/oz or kg/g)
Push button and keypad tare
Calculates BMI (body mass index)
USB, Serial Output
ID Storage With and Without a Known Tare Weight
Power: 6 C alkaline batteries or optional AC adapter
EMR-Ready Serial Connectivity
Other Detecto FHD133II / FHD144II Geriatric/Bariatric Scale
5 digit, seven segment, 7/8 inch (22.23 mm) high LCD weight digits
15 ft (4.5 m)
Blue with black mat and ramp
Detecto MV1 MedVue Medical Weight Analyzer Indicator
DETECTO’s USA-made MedVue® medical weight analyzer is utilized on select clinical scales. The MedVue® features a striking blue 3.5-in-wide by 3-in-high backlit LCD display screen with nearly 1-in-high weight digit readouts for easy visibility. The MedVue’s 350-degree swivel mounting bracket allows the display to be tilted and rotated into position wherever it is the most convenient for the medical professional and/or patient to view. A host of other benefits include 14-digit patient ID which may be entered via the alphanumeric keypad, 99 stored tare weights, 200 stored transactions, 1LOOK display, and four different languages available in set-up (English, Spanish, French, and German). The MedVue® offers a host of both wired and optional wireless connectivity for sending measurement data to
Versatile Connectivity - DETECTOs USA-made MedVue medical weight analyzer offers a host of different options, both wired and optional wireless, for DETECTO scales to connect with multiple devices for efficient EMR/EHR.
Bar Code Scanners
Even Mobile Phones
BENEFITS OF WI-FI CONNECTIVITY - DETECTOs MedVue offers optional Wi-Fi connectivity with up to 20 ft. range (varies depending upon environmental conditions). Wi-Fi offers a number of benefits over Bluetooth, including greater range and security.
Almost every MedVue port may be used simultaneously (with the exception of Ethernet and Wi-Fi connections).
For instance, a printer could be connected to the serial port, PC connected to the USB port, while a tablet is connected via Wi-Fi all at the same time. DETECTOs model P50 printer offers plug-and-play compatibility with the MedVue
350-Degree Swivel Mounting Bracket - Enjoy freedom of movement wherever you need to position the display with the MedVues 350-degree tilt-and-swivel mounting bracket.
EASY SET-UP NAVIGATION -
DETECTOs MedVue indicator features a tiered menu system with up/down navigation controls to quickly update any settings you wish to change, such as converting to kilograms-only weighing or lowering the backlight intensity to make the batteries last longer
MULTIPLE LANGUAGE SETTINGS -
DETECTOs MedVue features user-prompting in four different languages:
Detecto P220 Direct Thermal Label Printer more info Price: $599.00 In Stock
Detecto's P220 desktop printer boasts a surprisingly compact footprint without compromising performance or value. The P220 can connect via serial port with any Detecto digital scale that has serial output capabilities, including any medical scale featuring the 758C weight indicator.
This 2-inch print width printer offers a multitude of user-friendly and innovative features, all packed in a small, but sturdy double-walled casing. With its electronic platform, the P220 delivers high-quality bar code label printing at 3.5 inches per second and is ideal for Point of Sale or product marking in Food Service use or patient tracking or medical record keeping in Health Care use.
Detecto P-150 Mobile Tape Printer With Serial Interface more info Price: $705.00 In Stock
Detecto's P150 printer is a battery-operated ticket printer that can be mounted to any 758C with the new serial port. The bracket conveniently mounts to the back of the 758C using 2 existing screws. Printing at 50 mm/sec, the P150 utilizes a long-life lithium-ion battery that supplies up to 40,000 lines of 8 dots/mm (203 dpi) thermal printing on a single charge.
PRINT WEIGHT, BODY MASS INDEX, TIME, DATE, AND HEIGHT
Lithium Ion battery with up to 20,000 printed weighments before recharging. The batteries recharge to full capacity in only 3 hours
RS-232 serial connectivity - includes compact cable ready to plug into Detecto's 758C
Battery low status lamp
The bracket conveniently mounts to the back of the 758C using 2 existing screws
Detecto P185 Thermal Tape Printer With Serial Interface more info Price: $486.00 In Stock
Detecto's P185 is capable of high speed, low cost printing with a throughput unmatched at this price today. The combination of the latest in processor speed with an 8Mbit Flash memory, a print speed of 3.9"/100 mm per second (31 lines per second) and highly sophisticated drivers has resulted in a low cost printer capable of achieving the same high quality output at speeds similar to “so-called” higher specified competitive products. Barcodes and high quality graphics can all be produced at high speed.
The P185 can connect via serial port with any Detecto digital scale that has serial output capabilities, including any medical scale featuring the 758C weight indicator
Quality thermal tape printers with high speed processor for a true print speed of 100mm per second.
Quality design for low cost receipt printing with the added cost effective flexibility of a unique tear bar version.
Quality engineering providing user-friendly features including easy paper loading, 58mm paper width option with user installable paper guide (80mm standard) and two colour print capability (red and black or blue and black).
"Drop and Load" Easy Print - It couldn’t be simpler – open the case, drop the new roll of paper in and shut the lid!
Detecto WinDDE Dynamic Data Exchange more info Price: $595.00 In Stock
WinDDE Server communicates with up to 20 weight indicators attached to a computer. Weight indicators may be connected using standard computer serial ports or via ethernet using TCP/IP. The weight and status of the weight indicators is made available to spreadsheets, databases, and industrial control applications by means of Dynamic Data Exchange, or NetDDE for networked computers.
Weight and time stamp information may be automatically captured to Excel® creating a new row of information for each stable weight above threshold. Alternatively, the capture feature may be based on the indicator print button to capture a row of data each time the print key is pressed on the indicator.
Industrial Control Software such as Rockwell RSView®, Automation Direct®, Lookout Direct®, and spreadsheet programs, such as Microsoft Excel® may be used.
A spreadsheet cell, such as A1, shows continuously updating weight.
The spreadsheet may show a continuously updating bar graph.
Formulas in the spreadsheet may show a flashing indication if the weight exceeds or drops below certain levels.
The WinDDE command for the spreadsheet to read weight is simply =windde|scale!wt
Automatic Stable Weight Capture to Excel®
After a weight is placed on the scale and the indicator sees a stable weight, the weight is placed in a spreadsheet cell, such as A5. The operator removes the weight, and the procedure is repeated, but the weight value is placed in the next spreadsheet row, such as A6.
Printer Port Capture to Excel®
After a weight is placed on the scale, the operator at the indicator may press the Print key on the indicator. Instead of printing, the printout information from the indicator is sent to the computer. The computer sets the spreadsheet cells, such as E3 Gross Weight, F3 Tare Weight, G3 Net Weight, etc. The operator then may remove the weight, and the procedure is repeated, but information is placed in the next spreadsheet row, such as E4, F4, G4, etc.
Computer Data Collection
After a weight is placed on the scale, the operator may type information at the computer, such as an ID number to associate the weight. The computer stores the information in a database or spreadsheet. The operator then may remove the weight.
With certain weight indicators, such as the Cardinal model 220, weight monitoring, automatic stable weight capture to Excel® and printer port capture to Excel® can be used simultaneously. Windows® 2000 or XP must be used if more than ten indicators will be connected.
Microsoft Excel®, Microsoft Access®, Wonderware InTouch®, Automation Direct®, Lookout Direct®, and Rockwell Automation RSView® are just a few of the well-known applications which can be used with WinDDE.
Detecto Model WACONNECT Welch Allyn Device more info Price: $170.00 In Stock
Connectivity solution allows capture and viewing of DETECTOs 1LOOK weight, height and BMI measurements and automated data transfer to EMRs.
Welch Allyn, a leading global provider of medical diagnostic equipment, has partnered with DETECTO, America’s largest healthcare scale manufacturer, to enable automated interface between the Welch Allyn Connex® Vital Signs Monitor (Connex VSM), the Welch Allyn Connex® Integrated Wall System (Connex IWS) and select DETECTO medical scales.
Connectivity-ready DETECTO medical scales included under the agreement include eye-level and waist-high electronic column scales for physician and hospital settings, bariatric, wheelchair and visiting nurse scales (listed below) — designed to accommodate every kind of patient need quickly and accurately. These scales operate digitally and are equipped with BMI, easy-to-read display, and auto-off features, plus several models feature digital height rods to speed the measurement process. These scales feature DETECTO’s unique 1LOOK feature which displays height, weight, and BMI all onscreen simultaneously to be viewed in one scan of the eye for efficient patient recordkeeping.
