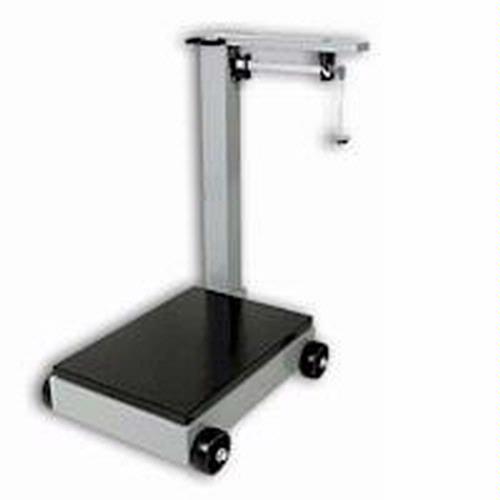

Detecto 854F-100P Mechanical Platform Scale Legal for Trade - 1000 x 0.5 lb |
|
| Detecto 954/854 mechanical scales with simplified lever systems offer maintenance-free, simple operation that is dependable, rugged, and durable. Large 5" (127mm) diameter heavy-duty rubolene wheels make the scales easy to roll wherever they're needed. more ... |
|
Scales >
Industrial Scales >
Mechanical Scales
|
|
|
|
|
|
Features
Capacity x Readability: 1000 x 0.5 lb - Legal for Trade
Constructed entirely of heavy-duty welded fabricated steel bases and electrostatically coated with long-life paint, the 854F and 954F Series provide portable, fast, accurate performances. These models have your choice of platforms sizes (19 x 28 / 483mm x 711mm or 28 x 28 / 711mm x 711m) and come in a variety of capacities listed below.
Detecto 954/854 series mechanical scales with simplified lever systems offer maintenance-free, simple operation that is dependable, rugged, and durable. Large 5 (127mm) diameter heavy-duty rubolene wheels make the scales easy to roll wherever they are needed. The die-cast beam with easy-to-read numbers can be viewed from the front or back of the scale.
| 854F / 954F Specifications |
| Platform Sizes: |
854F - 19 x 28 / 483mm x 711mm
954F - 28 x 28 / 711mm x 711mm |
| Wheels: |
Large 5 (127mm) diameter heavy-duty rubolene |
| Overall Dimensions: |
854F - 45 H x 24 W x 35 D / 114cm H x 61cm W x 89cm D
954F - 45 H x 33 W x 35 D / 114cm H x 84cm W x 89cm D |
Counterpoise weights supplied to the capacity of the scale (dual reading Model 854F supplied with both pound and kilogram weights).
| 854F/954F Features |
|
All welded base and lever system |
|
Oversized, heavy-duty wheels |
|
Large weighing platform |
|
Die-cast beam with easy-to-read numbers on the front and back |
|
Legal for Trade |
|
Choice of platform sizes and capacities to suit your weighing needs |
| 854F / 954F Series Portable Platform Scale Models |
| Model |
Capacity |
Front of Beam |
Back of Beam |
Platform Size |
| 854F100P |
1,000 lb |
100 lb x .5 lb |
100 lb x .5 lb |
19 x 28 / 483mm x 711mm |
| 854F50P |
500 lb |
50 lb x .25 lb |
50 lb x .25 lb |
19 x 28 / 483mm x 711mm |
| 854F50K |
500 kg |
50 kg x .25 kg |
50 kg x .25 kg |
19 x 28 / 483mm x 711mm |
| 854F50PK |
500 lb / 200 kg |
20 kg x 100 g |
50 lb x .25 lb |
19 x 28 / 483mm x 711mm |
| 854F100PK |
1,000 lb / 500 kg |
50 kg x .25 kg |
100 lb x .5 lb |
19 x 28 / 483mm x 711mm |
| 954F100P |
2,000 lb |
100 lb x .5 lb |
100 lb x .5 lb |
28 x 28 / 711mm x 711mm |
| 954F50K |
1,000 kg |
50 kg x .25 kg |
50 kg x .25 kg |
28 x 28 / 711mm x 711mm |
Dimensions
X:
40.00
Y:
25.00
Z:
8.00
|
|
