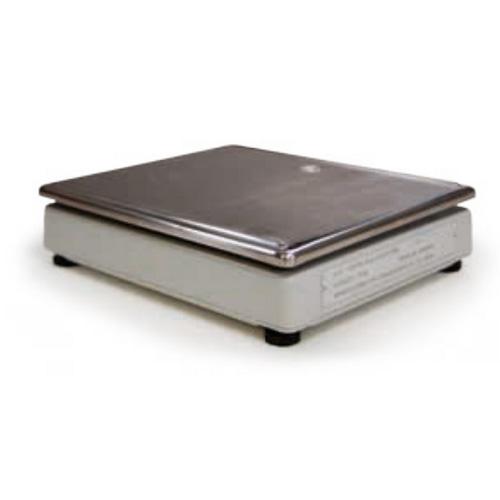

DIGI S-YC-20 Remote Scale Base Platform 20 x 0.01 lb |
|
| DIGI S-YC Series Remote Scale Base Platforms. Standard Features are: Stainless steel platter, ABS injection-molded plastic base, Single-point strain gauge load cell, Adjustable legs, Leveling bubble, 14-Pin connector on three meter cable. more ... |
|
Industrial Scales >
Counting Scales >
Remote Platforms
|
|
|
|
|
|
Features
DIGI S-YC Series Remote Scale Base Platforms. Standard Features are: Stainless steel platter, ABS injection-molded plastic base, Single-point strain gauge load cell, Adjustable legs, Leveling bubble, 14-Pin connector on three meter cable.
Standard Features
- Stainless steel platter
- ABS injection-molded plastic base
- Single-point strain gauge load cell
- Adjustable legs
- Leveling bubble
- 14-Pin connector on three meter cable
Weight:
8.00 lb
|
2 Year Manufacture Warranty
|
Other DIGI S-YC Series Remote Scale Base Platforms
|
Specifications
| Model |
S-YC-1 |
S-YC-2 |
S-YC-5 |
S-YC-10 |
S-YC-20 |
S-YC-50 |
| 154835 |
154836 |
154838 |
154839 |
154840 |
154841 |
Capacity
Readability |
1 x 0.0001 lb |
2 x 0.0005 lb |
5 x 0.001 lb |
10 x 0.002 lb |
20 x 0.01 lb |
50 x 0.02 lb |
| Pan Size |
7.9 x 5.6 in |
9.6 x 6.9 in |
13.4 x 11.10 in |
13.4 x 11.10 in |
13.4 x 11.10 in |
13.4 x 11.10 in |
| Output Impedance: |
350 ±5 ohms |
| Insulation Resistance: |
>500 Megohms |
| Rated Output: |
1.0016 mV/V |
| Color Code: |
Green............+ Output
Yellow...........– Output
Black............. Shield
White............– Input
Red...............+ Input |
| Load Cell Type: |
K-Type DIGI cell |
| Load Cell Cable Length |
118 in (3 m) |
| Operating Temperature: |
14° F to 104° F (-10° C to 40° C) |
| Warranty |
Two-year limited warranty |
|
|
|
|
|
|
| |
|
|
|
|
