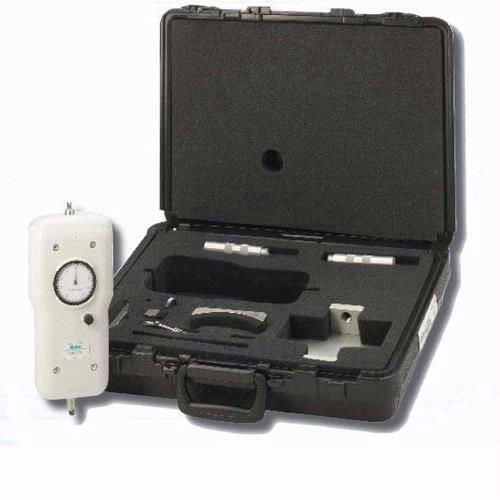

Chatillon K-DMG-500 DMG Series Medical Kit 500 x 2.5 lbf Capacity

Gauges come with handle and carrying case Only

The Chatillon DMG series hand held dynamometer lets you objectively measure manual muscle strength and fuctional task requirements for almost any application. Available in 200lb and 500lb capacities, these rugged gauges accurately measure instantaneous push or pull forces generated by the test subject. A calibrated dial shows the instantaneous force. An easy to use peak force switch freezes the pointer at the maximum force for simple identification and analysis. K-DMG models include all DMG Series standard features (gauge,case,handle, hook with latch, large rectangular compression plate) plus curved compression plate, small rectangular fixture,palm fixture, grasping cable, V-notch, and extension rod

Features

• Easy to use
• Durable construction
• Tensile or compression testing
• Peak capture mode
• Includes handles
• Available in 200lb and 500lb capacities
• 2 year warranty
• Free NIST calibration certificate
• DMG models include gauge,case,handle, hook with latch, large rectangular compression plate
• K-DMG models include all of the above plus curved compression plate, small rectangular fixture,palm fixture, grasping cable, V-notch, and extension rod

Functional Specifications

• Accuracy:± 0.5% of full scale
• Overload capacity: 110% of rated capacity
• Maximum Overload: 150% of rated capacity
• Tare Capacity: 10% of rated capacity
• Dial Resolution : 0.5% of full scale
• Deflection: 10mm (0.394") at full scale
• Temperature Range: 40°F to 110°F (5°C to 45°C)
• Warranty: 2 years
