Chatillon 719-005 Push Pull Gauge, 5 lb x 1 oz |
|
| Push pull instrument gauges. Several models available with up to 80 lb capacity. Moderately priced portable gauges with innumerable applications. Precision springs individually calibrated and checked with dead weights are used in all models more ... |
|
Test Equipment >
Force Gauges >
Mechanical Force Gauges
|
|
|
|
|
|
Features

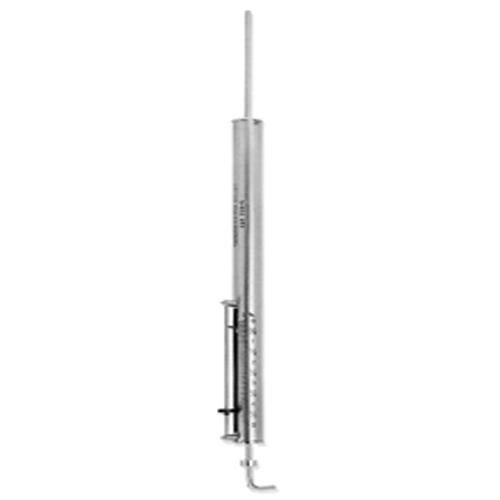

Chatillon push pull gauge is a compact, finely-built gauge whose slender shape permits use in the narrowest of spaces. All brass construction with satin chrome finish. Capacity x graduation: 5 lb x 1 oz / 2.25 kg x 0.05 kg
A compact, finely-built gauge whose slender shape permits use in the narrowest of spaces. Extended scale length, additional graduations, sensitivity and lighter capacities recommend its use in laboratories and other demanding applications. Accuracy is held to ±1 graduation.
These popular instruments have been adapted to a large variety of uses, such as fruit testing, pill crushing, resilience of rubber, etc. All brass construction with satin chrome finish. Rod in gram gauges is aluminum, and stainless steel in all other models. An adjustable knurled cap alters spring calibration and permits using the instrument in any position.
Weight:
1.00 lb
|
1 Year Manufacture Warranty
|
Other Chatillon Ametek Push/Pull Gauges
|
Specifications
Model |
Capacity x Graduation |
Model with MRP |
719-005 |
5 lb x 1 oz / 2.25 kg x 0.05 kg |
719-005M |
719-010 |
10 lb x 2 oz / 4.5 kg x 0.05 kg |
719-010M |
719-020 |
20 lb x 4 oz / 9 kg x 0.1 kg |
719-020M |
719-040 |
40 lb x 8 oz / 18 kg x 0.2 kg |
719-040M |
516-0500 |
1 lb x 1/4 oz / 500 g x 5 g |
516-0500M |
516-1000 |
2 lb x 1/2 oz / 1000 g x 10 g |
516-1000M |
|
|
|
|
|
|
| |
|
|
|
|
