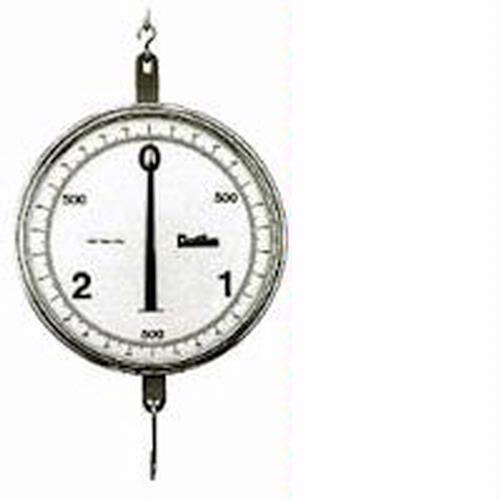

Chatillon autopsy scale with 13 diameter glass covered dials. Machined stainless steel pinion. Two brass air dashpots stop pointer oscillation. Capacity x readability: 15 kg x 25 g. With bottom hook.
13 diameter glass-covered dials
One dial reads clockwise, the opposite dial reads counterclockwise
Chrome-plated steel outer band and glass-retaining bezels
Machined stainless steel pinion and phosphor bronze rack combination assure low friction performance at elevated temperatures
Two brass air dashpots stop pointer oscillation
Capacity is reached in three pointer revolutions. Runners are indexed for each revolution
Zero adjust screw may be used to zero out additional tares up to 10% of dial reading (= 3.3% of scale capacity)
Available with a deep stainless steel pan (AS) or bottom hook
Hook models can be started for weights of your particular loading attachments
Catalog Number
Capacity
Dial Diameter
Supplied with
1315DD-AS
15 kg x 25 g
13 in
pan
1315DD-H
15 kg x 25 g
13 in
bottom hook
1309DD-AS
9 kg x 10 g
13 in
pan
1309DD-H
9 kg x 10 g
13 in
bottom hook
815-AS
15 kg x 20 g
9 in
pan
815-H
15 kg x 20 g
9 in
bottom hook
806-AS
6 kg x 10 g
9 in
pan
806-H
6 kg x 10 g
9 in
bottom hook
Weight:7.00 lb
1 Year Manufacture Warranty
Other Chatillon Ametek Autopsy Scales With 13 Inch Dials
