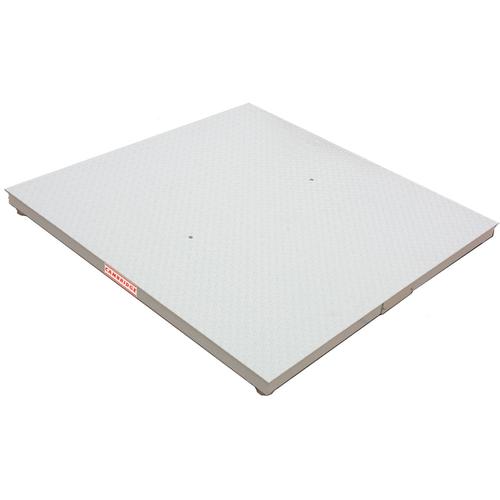

Cambridge AL660 48x60x3 Aluminum Low Profile Base Only 5000 lb (3873-1010-00)

Cambridge Scale
STANDARD FEATURES The AL660 Alulite Series Aluminum Low Profile Series standard features include 1 part in 5,000 accuracy, structural tubular aluminum construction, aluminum diamond tread deck plate, 150% overload protection, 100% end loading capacity... more ...
Scales > Industrial Scales > Floor Scales
Cambridge AL660 48x60x3  Aluminum  Low Profile Base Only 5000 lb (3873-1010-00)

Specifications Chart View Full Detail Page


Have Questions?
Call USoremail Us
Our Staff will be glad to help


Note: This product can only be shipped Ground Delivery.
Cambridge AL660 48x60x3 Aluminum Low Profile Base Only 5000 lb (3873-1010-00)

Price: $2,992.50


Available to Ship


Optional Accessories

View Features

Cambridge Scale
SKU: 3873-1010-00

Features

STANDARD FEATURES

The AL660 Alulite Series Aluminum Low Profile Series standard features include 1 part in 5,000 accuracy, structural tubular aluminum construction, aluminum diamond tread deck plate, 150% overload protection, 100% end loading capacity, low profile design allows easy incline ramping, 20 foot shielded indicator cable, shock load protection, four internally mounted shear beam load cells, is NTEP Certified-5,000 Division, class III/IIIL, is environmentally protected, and is IP 67 Water Resistant rated.

  • Remote junction box
  • Remote mountable NEMA 4 junction box and 10 Sealtite conduit for wash down applications. (Standard on Model SS660 Series)

  • Fork lift package
  • All of the standard 660 features but with added fork lift skids for those applications requiring convenient and rapid transporting of the scale. Only three inches high, this scale maintains its low profile design with built in rails that permit easy pick up and transportation by most commonly used fork lifts. Also featured are heavy steel bumpers mounted on all four corners to protect the load cells and leveling feet from fork lift blades.

  • Pit installation kit
  • unction box permitting easy access for calibration and corner adjustments. Pit spacer brackets are also included to maintain accurate alignment of scale in pit applications. For an unbeatable combination, match this scale with our pit form and one of our many indicators and you’ve got all you need for all your weighing needs.

ACCESSORIES
  • Easy incline ramps
  • Bumper guards
  • Pit forms
  • Indicator/Printer stands
  • Locator brackets

Dimensions
X:
48.00   Y: 60.00   Z: 3.00
1 Year Manufacture Warranty
Other Cambridge Scale AL660 Aluminum Low Profile Bases
Cambridge AL660 24x24x3 Aluminum Low Profile Base Only1000 lb - (3873-1000-00)
Cambridge AL660 24x24x3 Aluminum Low Profile Base Only1000 lb - (3873-1000-00
)

$1,642.50
Cambridge AL660 24x24x3 Aluminum Low Profile Base Only 2500 lb (3873-1001-00)
Cambridge AL660 24x24x3 Aluminum Low Profile Base Only 2500 lb (3873-1001-00
)

$1,642.50
Cambridge AL660 30x30x3 Aluminum Low Profile Base Only 1000 lb (3873-1002-00)
Cambridge AL660 30x30x3 Aluminum Low Profile Base Only 1000 lb (3873-1002-00
)

$1,975.50
Cambridge AL660 30x30x3 Aluminum Low Profile Base Only 2500 lb (3873-1003-00)
Cambridge AL660 30x30x3 Aluminum Low Profile Base Only 2500 lb (3873-1003-00
)

$1,975.50
Cambridge AL660 36x36x3 Aluminum Low Profile Base Only 1000 lb - (3873-1004-00)
Cambridge AL660 36x36x3 Aluminum Low Profile Base Only 1000 lb - (3873-1004-00
)

$2,065.50
Cambridge AL660 36x36x3 Aluminum Low Profile Base Only 2500 lb (3873-1005-00)
Cambridge AL660 36x36x3 Aluminum Low Profile Base Only 2500 lb (3873-1005-00
)

$2,065.50
Cambridge AL660 36x36x3 Aluminum Low Profile Base Only 5000 lb (3873-1006-00)
Cambridge AL660 36x36x3 Aluminum Low Profile Base Only 5000 lb (3873-1006-00
)

$2,065.50
Cambridge AL660 48x48x3 Aluminum Low Profile Base Only 1000 lb - (3873-1007-00)
Cambridge AL660 48x48x3 Aluminum Low Profile Base Only 1000 lb - (3873-1007-00
)

$2,587.50
Cambridge AL660 48x48x3 Aluminum Low Profile Base Only 2500 lb (3873-1008-00)
Cambridge AL660 48x48x3 Aluminum Low Profile Base Only 2500 lb (3873-1008-00
)

$2,587.50
Cambridge AL660 48x48x3 Aluminum Low Profile Base Only 5000 lb - (3873-1009-00)
Cambridge AL660 48x48x3 Aluminum Low Profile Base Only 5000 lb - (3873-1009-00
)

$2,587.50
Cambridge AL660 48x60x3  Aluminum  Low Profile Base Only 5000 lb (3873-1010-00)
Cambridge AL660 48x60x3 Aluminum Low Profile Base Only 5000 lb (3873-1010-00
)

$2,992.50

You are viewing this product
Cambridge AL660 48x72x3 Aluminum  Low Profile Base Only 5000 lb (3873-1011-00)
Cambridge AL660 48x72x3 Aluminum Low Profile Base Only 5000 lb (3873-1011-00
)

$3,325.50
Cambridge AL660 60x60x3 Aluminum  Low Profile Base Only 5000 lb (3873-1012-00)
Cambridge AL660 60x60x3 Aluminum Low Profile Base Only 5000 lb (3873-1012-00
)

$3,325.50

Specifications

<
Cambridge Alulite Aluminum Low Profile Bases
Model Size (Inch) Capacity Legal For Trade
AL66024241 24 x 24 x 3 1,000 lb NO
AL66024242 24 x 24 x 3 2,500 lb NO
AL66030301 30 x 30 x 3 1,000 lb NO
AL66030302 30 x 30 x 3 2,500 lb NO
AL66036361 36 x 36 x 3 1,000 lb NO
AL66036362 36 x 36 x 3 2,500 lb NO
AL66036365 36 x 36 x 3 5,000 lb NO
AL66048481 48 x 48 x 3 1,000 lb NO
AL66048482 48 x 48 x 3 2,500 lb NO
AL66048485 48 x 48 x 3 5,000 lb NO
AL66048605 48 x 60 x 3 5,000 lb NO
AL66048725 48 x 72 x 3 5,000 lb NO
AL66060605 60 x 60 x 3 5,000 lb NO

Optional Accessories


Cambridge 3495-50074-00 Model SS680 Stainless Steel Series Lag Down Bracket 2 Inches
more info
Cambridge 3495-50074-00 Model SS680 Stainless Steel Series Lag Down Bracket 2 Inches
$67.50

Cambridge 3495-50074-00 Model SS680 Stainless Steel Series Lag Down Bracket 2 Inches
Cambridge PFS6PT4872 SS660-PT Series Stainless Steel Low Profile Pitform 48 x 72 x 3.75
more info
Cambridge PFS6PT4872 SS660-PT Series Stainless Steel Low Profile Pitform 48 x 72 x 3.75
$1,440.00

STAINLESS STEEL PIT FORMS Includes everything but the concrete. Each Cambridge Scale Works pit form is custom built to exactly contain the scale you order. These forms feature welded reinforcing rods on all sides and corner plates for easy installation.
Cambridge BUM486 Bumper Guard for 660-Classic-HD Series - 48 x 6
more info
Cambridge BUM486 Bumper Guard for 660-Classic-HD Series - 48 x 6
$256.50

Protect your investment and add years to the life of your scale with our diamond steel bumpers. Angled design deflects fork lift blades and prevent unwanted movement and damage to scale. Bumpers are available in 360° surround style or any combination of sides to fit your specific application. Our 360° surround bumper is also available with fork lift skids to add portability to your existing scale. Each Cambridge Scale Works bumper guard is custom built to exactly fit your scale.
Cambridge BUM487 Bumper Guard for 660-Classic-HD Series - 48 x 7
more info
Cambridge BUM487 Bumper Guard for 660-Classic-HD Series - 48 x 7
$285.00

Protect your investment and add years to the life of your scale with our diamond steel bumpers. Angled design deflects fork lift blades and prevent unwanted movement and damage to scale. Bumpers are available in 360° surround style or any combination of sides to fit your specific application. Our 360° surround bumper is also available with fork lift skids to add portability to your existing scale. Each Cambridge Scale Works bumper guard is custom built to exactly fit your scale.
Cambridge PIT48486 - Pit Form for 660-Classic-HD Series - 48 x 48 x 6
more info
Cambridge PIT48486 - Pit Form for 660-Classic-HD Series - 48 x 48 x 6
$703.00

Includes everything but the concrete. Each Cambridge Scale Works pit form is custom built to exactly contain the scale you order. These forms feature welded reinforcing rods on all sides and corner plates for easy installation.
Cambridge PIT48726 - Pit Form for 660-Classic-HD Series - 48 x 72 x 6
more info
Cambridge PIT48726 - Pit Form for 660-Classic-HD Series - 48 x 72 x 6
$801.00

Includes everything but the concrete. Each Cambridge Scale Works pit form is custom built to exactly contain the scale you order. These forms feature welded reinforcing rods on all sides and corner plates for easy installation.
Cambridge PIT48727 - Pit Form for 660-Classic-HD Series - 48 x 72 x 7
more info
Cambridge PIT48727 - Pit Form for 660-Classic-HD Series - 48 x 72 x 7
$845.50

Includes everything but the concrete. Each Cambridge Scale Works pit form is custom built to exactly contain the scale you order. These forms feature welded reinforcing rods on all sides and corner plates for easy installation.
