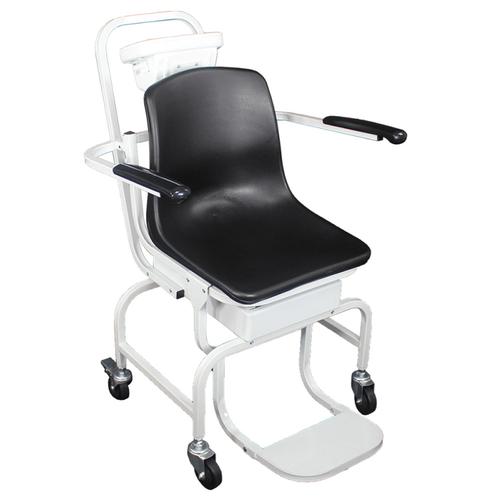

Adam Equipment MCW-300L Digital Chair Scale 660 x 0.1 lb |
|
| MCW allows medical professionals and health practitioners to gather weight and BMI measurements of people with limited mobility. With sturdy construction, stability, and easy accessibility, the MCW allows patients to relax during the weighing process. more ... |
|
Medical Equipment >
Medical Scales >
Chair Scales
|
Specifications Chart
|
Have Questions?
Our Staff will be glad to help |
Capacity x Readability
660 lbx 0.1 lb
|
|
|
|
|
|
|
|
|
Features
MCW allows medical professionals and health practitioners to gather weight and BMI measurements of people with limited mobility. With sturdy construction, stability, and easy accessibility, the MCW allows patients to relax during the weighing process. To allow personalized adjustments, foot rests and arm rests pivot for added comfort. Swiveling wheels allow the chair to be moved and maneuvered conveniently into the ideal location.
Features
- Color-coded keys facilitate quick recognition of the most frequently used buttons
- Splash-proof housing, keypad and display are easy to clean
- Footrests and armrests pivot for easy patient accessibility
- Wheels swivel, allowing easy movement
- BMI (body mass index) indicator
- Zero-tracking feature ensures display returns to zero reading
- Bright LED display for easy viewing in most environments
- Rechargeable battery included for operation almost anywhere
- AC adapter included
|
3 Year Manufacture Warranty
|
Specifications
| Model |
MCW 300L |
| Capacity x Readability |
660 x 0.1 lb
300 x 0.05 kg |
| Repeatability |
0.2 lb / 0.1 kg |
| Weighing Units |
kg, lb |
| Stabilization Time |
3 seconds |
| Interface |
RS-232 |
| Calibration |
External calibration |
| Display |
0.9" / 22mm Bright LED display for easy viewing in most environments |
| Power Supply |
15VDC 500mA adapter / Internal rechargeable battery |
| Operating Temperature |
5° to 40°C / 41° to 104°F |
| Net Weight |
55.1lb / 25kg |
| Overall Dimensions |
26.6" x 34.4" x 37.4" / 675 x 875 x 950mm (wxdxh) |
|
|
|
|
|
|
|
Optional Accessories
more info
|
Adam Equipment 3074010507 RS-232 to USB Interface Cable
9066 RS-232 to USB Interface Cable
|
|
more info
|
Adam Equipment - ATP Thermal Printer (1120011156)
Adam Equipment ATP Thermal Printer (1120011156)
Simple-to-use features combined with quick set-up makes for a truly versatile printer. A single positive push-button feed key and three easy-to-read LED indicators make operation simple.
- Thermal printer
- Dimensions: 114 mm x 184 mm x 90 mm
- Print size 24 x 24 dot
- Column size 384 dots per line
- 57.5mm paper width
|
|
more info
|
Adam Equipment 3014011014 RS-232 cable M-F
The Male to Female RS-232 interface cable is used to connect the balance or weighing scale to other devices such as the ATP Thermal Printer or simply to a computer. Data collection is streamlined and you no longer have to input the readings manually
|
|
more info
|
Adam Equipment - 1120014641 AIP dot matrix printer
The AIP is a compact, high-speed dot matrix printer that is both versatile and sturdy. Simple to use, AIP operates with only an on/off switch and a paper feed button. For efficient communication, the printer connects with any scale or balance having RS-232 or USB interface, and automatically detects the devices settings. AIP is powered by adapter or rechargeable battery, so it works even when electricity is unavailable. AIPs supports a variety of languages, and its software is compatible with Windows operating systems.
Features
- Printer method: 8 pin shuttle impact dot matrix Supplied with RS-232 interface and USB port which allows for connection between printer, computer and weighing device to update firmware and set parameters Auto-setting detection: Communication parameters can be automatically identified and set for quick configuration with devices Fast 1.7 lines/sec (approx) printing speed Printer digits: 24 digits / line or 40 digits / line, 5 x 7 dot matrix Printer paper size: 57mm width, 50mm in diameter
- AC adapter included
- Rechargeable battery included for operation almost anywhere
|
|
more info
|
Adam Equipment 700660290 Calibration Certificate
The Calibration Certificate can only be ordered with the Scale.
It provides information about the machines performance and accuracy.
Generally, its a requirement of any company with ISO Quality systems in place where a record of the scales calibration needs to be kept by the user.
Please note: Adam Equipment can not issue calibration certificates to scales previously supplied that did not include a certificate in the order.
These certificates do not make the scale or balance Trade Approved. These certificates are done by Adam Equipment in a Adam Equipment warehouse and may not be valid once shipped to a different location. they also are non-refunable.
|
|
|
|
|
|
|
|
