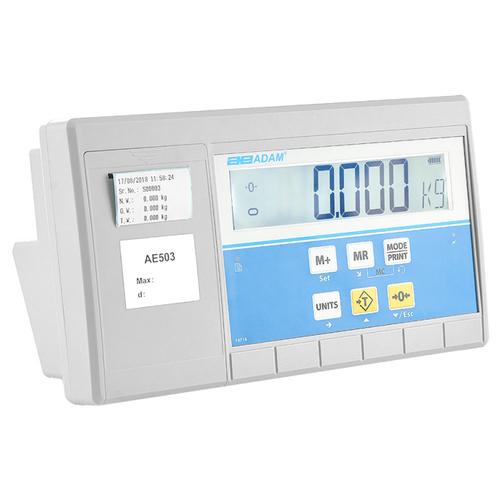

Adam Equipment AE-503 Indicator with Built-in Printer
Strong ABS construction and an integrated label printer enhance functionality for the AE 503 label printing indicator, making it an ideal option for weighing, parts counting, percentage weighing, dynamic weighing, check counting, checkweighing and averaging. more ...
Strong ABS construction and an integrated label printer enhance functionality for the AE 503 label printing indicator, making it an ideal option for weighing, parts counting, percentage weighing, dynamic weighing, check counting, checkweighing and averaging.
A large, easy-to-read backlit LCD screen features 1.3-inch/34mm-tall digits and symbols to show over, under or within limits during checkweighing. A sealed, color-coded keypad allows quick and easy configuration.
Using the built-in printer, add barcodes, QR codes, pictures and custom logos to the 50mm-wide printed labels.
Features
Vivid, backlit LCD easily visible in any lighting conditions
Programmable backlight can be set to "always on," "always off" or "light only when weighing"
Color-coded keys facilitate quick recognition of the most frequently used buttons
RS-232 interface is available to provide speedy connection to computers and printers
Rugged construction stands up to industrial use
Built in printer can print weight, QR codes, bar codes and labels in numerous languages
Zero-tracking feature ensures display returns to zero reading
Parts counting optimization automatically refines piece weight as parts are added
Checkweighing with audible alarm
External calibration allows for verification and adjustment with weights
Quick and easy configuration using the keypad
User-selectable scale division
Rechargeable battery included for operation almost anywhere
Programmable auto power-off to save energy
Applications
Weighing
Parts counting
Percentage weighing
Check counting
Averaging
Barcode / label printing
Checkweighing
Dynamic / animal weighing
Accumulation
Display hold
Peak hold
Weight:5.00 lb
Specifications
Model
AE 503
Capacity
Selectable
Capacity Range
Selectable
Resolution
1:60,000
Excitation Voltage
5VDC
Loadcells
8
Sensitivity
0.02uv/e
Zero Range
0-10mv
Signal Range
- 20mV - 20mV
Weighing Units
g, kg, lb, oz, ct, dr, mm, T, tonne
Stabilization Time (sec)
2
PLU memories
0
Interface
RS-232
Calibration
External calibration
Display
Backlit LCD with 1.3"/ 34mm -high digits
Power Supply
12VDC 3A adapter / Internal rechargeable battery
Operating Temperature
0° to 40°C / 32° to 104°F
Housing
ABS plastic
Overall Dim.
11.8”x4.9”x6.7” / 300x170x125mm (wxdxh)
Net Weight
6.2lb / 2.8kg
Accessories
3014011014 - RS-232 cable M-F
3074010507 - RS-232 to USB adapter (must order corresponding RS-232 cable)
The Male to Female RS-232 interface cable is used to connect the balance or weighing scale to other devices such as the ATP Thermal Printer or simply to a computer. Data collection is streamlined and you no longer have to input the readings manually
To stabilize a freestanding indicator that is separated from a scale, attach it to the indicator stand for reliable support. Sturdy aluminum construction is also lightweight, so the stand is easy to transport.
(Indicators are not included with the stand.)
The AE relay box is an add-on for the ABK, AFK, and the AE 403 Indicator. When installed, it allows the checkweighing limits to trigger a voltage relay. Once the trigger is set, the relay box will open or close a switch. This allows the scales to drive other items such as a motor for filling, or lights to signal the users. The relay box includes input for power to help drive the relays. The light tower has 3 colors to let you know if your weight is over, under or within preset limits at a glance.
The RS-232 interface cable is used to connect the balance or weighing scale to other devices such as the ATP Thermal Printer or simply to a computer. Data collection and transmission is streamlined and you no longer have to input the readings manually.
