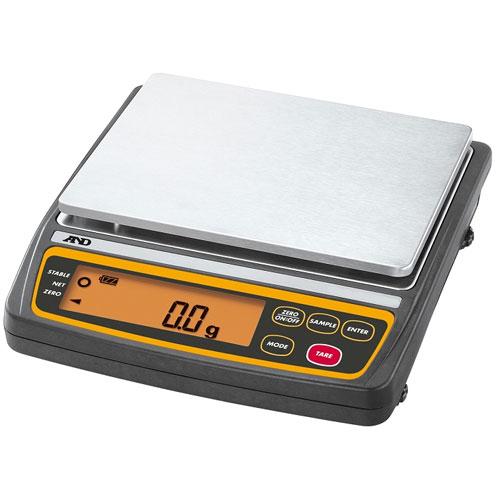

AND Weighing EK-12KEP Intrinsically Safe Explosion Proof Compact Balance - 12kg x 1g |
|
Compact, lightweight and affordable. FM and FMc approved for explosion protection. The EK-EP Series requires no power supply from a safe area making it completely portable running off battery power. more ... |
Industrial Scales >
Explosion Proof Scales >
Bench Scales
|
|
|
|
Features
Compact, lightweight and affordable. FM and FMc approved for explosion protection. The EK-EP Series requires no power supply from a safe area making it completely portable running off battery power.
FEATURES
- Compact, lightweight and extremely affordable while providing excellent explosion protection
- Battery operation (approx. 250 hours) for high portability, requiring no power supply from a safe area via a safety barrier
- Easy-to-read LCD display with backlight (16 mm character height)
- Auto power OFF function to save battery power
- Multiple weighing units: g, oz, lb, ozt, ct, mom, dwt, gr, N, in addition to SG (specific gravity)
- Counting mode with Automatic Counting Accuracy Improvement (ACAI) function
- Percent mode function for target weighing, checking the sample variation, etc
- Comparator function for faster and more accurate filling, packing, sorting, etc
- Adjustable response characteristics depending on the degree of drafts and vibrations at the location
- Security ring for wire-locking the balance to prevent theft
Only to be used with four DURACELL AA alkaline MN1500 LR6, ENERGIZER AA E91 alkaline LR6 AM3, or Panasonic AA alkaline LR6
(XJ) 1.5V batteries.
Weight:
3.00 lb
|
|
Other AND Weighing EK-EP Series - Explosion Proof Balances
|
Specifications
Model |
EK-300EP |
EK-3000EP |
EK-12KEP |
Capacity x Readability |
300 g x 0.01 g |
3000 g x 0.1 g |
12 kg x 1 g |
Min unit weight |
0.01 g |
0.1 g |
1 g |
Repeatability (standard deviation) |
0.01 g |
0.1 g |
1 g |
Linearity |
±0.02 g |
±0.2 g |
±1 g |
Sensitivity drift |
±20 ppm/°C (10 to 30°C/50 to 86°F) |
Counting Mode |
Min. unit weight |
0.01 g |
0.1 g |
1 g |
No. of samples |
5, 10, 25, 50 or 100 pieces |
Percent mode |
Min. % display |
0.1% |
Min. 100% weight |
1 g |
10 g |
100 g |
|
IECEx: Ex ia IIB T3 Ga ATEX: II 1G Ex ia IIB T3 Ga FM/FMc (NEC505): AEx / Ex ia IIB T3 FM/FMc (NEC500): IS / I / 1 / C,D / T3C |
Operating temperature |
0 to 40°C/32 to 104°F, 85% RH or less (no condensation) |
Battery life (on a full charge) |
Approx. 250 hours (with four AA alkaline batteries*1, backlight off) |
Weighing pan size |
dia 110 mm |
133 x 170 mm |
Net weight |
Approx. 1.2 kg |
Approx. 1.5 kg |
Calibration weight |
300 g |
3000 g |
10 kg |
weighing units |
g, oz, lb, ozt, ct, mom, dwt, gr, N, in addition to pcs (counting mode),
% (percent mode) and SG (specific gravity)* |
Standard accessories |
AC adapter, Instruction manual |
|
|
|
* within the 48 continental US States
|
Optional Accessories
more info
|
AND Weighing EJ-12 Carrying Case for EJ Newton Scales - except for EJ-123 & EJ-303
Hard shell transport case for AND Weighing EKi, EWi and EJ digital scales. This hard cover carrying case features die cut foam that specifically designed for EKi, EWi and EJ digital scales.
This carrying scale is convenient for carrying the digital scale or just storing your scale when not in use to lessen the chance of damage to the precision measurement weigh sensor.
The EK & EJ Series scales incorporate a loadcell weighing sensor and whether the scale is turned On or Off if one applies an excessive load or shocks the platform you can permanently damage the scale. Damage to the loadcell is not covered under the manufacturers warranty and is considered abuse. This is for any brand or model digital scale.
The optional EJ-12 carrying case can protect your investment and lessen the chance of loadcell damage especially if you transport your scale around a lot.
|
|
|
|
|
|
|
