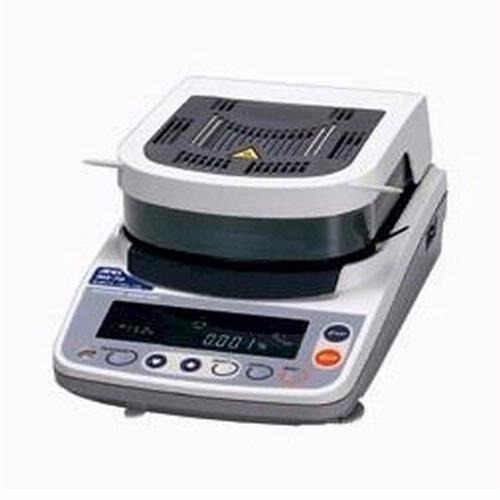

AND Weighing MS-70 Moisture Analyzer

The new MS moisture analyzers are ideal for food, pharmaceutical, chemical processing, or any moisture analysis application, particularly those needing GLP/GMP/ISO compliance. With RS-232, halogen lamp heating and SRA technology. more ...
Laboratory Equipment > Moisture Analyzers > Moisture Analyzers
AND Weighing MS-70 Moisture Analyzer

View Full Detail Page


Call for more info
Download PDF
AND Weighing MS-70 Moisture Analyzer
FREE Ground Shipping *

Price: $4,361.25
Add to Cart for Warranty Information


ClickPrice
In Stock - Ships within 24 hours

View Features

AND Weighing
SKU: MS-70
UPC: B0094M37E6

Features

The AND Weighing MF, MS and MX series moisture analyzers are ideal for food, pharmaceutical, chemical processing, or any moisture analysis application, particularly those needing GLP/GMP/ISO compliance. This one of a kind drying system, combined with an advanced heat protection mechanism for the weigh cell, provides superior accuracy and repeatability

Fast and uniform heating with halogen lamp and innovative SRA technology
Straight halogen lamp and uniquely designed SRA (Secondary Radiation Assist) filter gives shorter measurement time, thanks to fast and uniform heating.

High Repeatability
With SHS (Super Hybrid Sensor) featured as the weight sensor, ultra accurate moisture content determination is possible based on high precision weighing of even a small sample

High moisture content measurement
MS-70 measures the moisture content at 0.001% resolution suitable for low moisture content samples as well as Karl Fischer method, yet requires no special knowledge or training and produces no harmful waste

Standard WinCT-Moisture (for MS & MX) for real-time graph displaying
WinCT-Moisture is an original software application designed to display a graph of moisture content rate change while measuring with a connected PC

Sodium Tartrate Dihydrate comes a s standard for accuracy checking
Sodium Tartrate Dihydrate is a chemical material that has stable moisture content of 15.66% and thus is best for use for accuracy check to maintain the reference value of the analyzer

Calibration of the heater temperature (for MS & MX)
With the temperature calibrator (optional), calibration result can be output in the format that conforms to GLP, GMP, ISO

Memory Function - According to sample up to 20 suitable measurement conditions can be stored and recalled, which saves time and prevents the user from making a mistake when setting (10 for MF)

Five Measurement Programs - Five choices of measurement programs: Standard, Automatic, Quick, Timer and Manual Mode are provided:

  • Standard Mode: just measurement accuracy: HI, MID or LO needs to be set
  • Automatic Mode: Ends measurment when moisture content changes at a rate less than the set rate
  • Quick Mode: Begins heating samples at 200° C for 3 minutes, then is the same as Automatic Mode
  • Timer Mode: Continues measurement for a set duration of time (1-60 minutes by 1 minute, 60-480 min by 5 min)
  • Manual Mode: STOP button should be pressed to end measurement (max heating time = 480 minutes)

Selectable Heating Mode
Choose the heating mode from standard, quick, step and ramp heating modes for the most suitable measurement (ML has Standard and Quick heating modes only)

Clear and easy to see, large VFD display
Measurement, setting value, change in moisture content, action status, data number and other important information are clearly displayed

Easy handling of the unit
Ergonomically designed pan handle eliminates mishaps such as burns when moving a hot sample pan into or out of the unit from either side. Wing handle for easy opening and closing of the heater cover

Low maintenance cost assured
The halogen lamp is user replaceable without unit downtime with protective chamber for easy cleaning (lamp life is 5000 hours)

Progress window for heating check
Heating process can be checked through the translucent window

Self Check function
Deflect check function is available with temperature control

Quick Reference card
A convenient operating guide is installed at the bottom of the analyzer

Standard RS-232C
Bi-directional communication with a PC or connects directly to a printer

Conformity to GLP, GMP, GCP and ISO with date/time, ID, calibration data and check record outputs
Data output for daily record management





MF-70 MX-50 MS-70
Price
$3995
$2395
$1825
Measurement Method
400W straight halogen lamp heating system with SRA filter and SHS weighing technology
Maximum Sample Weight Capacity
71 g
51 g
51 g
Weight Resolution
0.0001 g
0.001 g
0.002 g
Moisture Content Display
0.001 / 0.01 / 0.1 %
0.01 / 0.1 %
0.05 / 0.1 / 1 %
Moisture Content Accuracy - over 1 g
0.05%
0.10%
0.20%
Moisture Content Accuracy - over 5 g
0.01%
0.02%
0.05%
Heating Technology
Halogen lamp (straight type: 400 watt max, 5000 hours)
Drying Temperature
50-200°C (1° C increments)
Memory of Measurement Programs
20 sets
10 sets
5 sets
Measurement Programs
Standard Mode, Automatic Mode, Quick Mode, Timer Mode, Manual Mode
Measurement Mode
Moisture content (wet or dry base), Dry content, Ratio, Weight
Heating Mode
Standard, Quick, Step, Ramp
Standard, Quick
Pan Size
85mm
85mm
85mm
Communication Software
WinCT standard
WinCT Moisture Standard
WinCT standard
Display Type
Large VFD
Interface
RS-232C standard
Data Memory Function
100
50
30
Operating Temperature
5°C ~ 40 °C (14°F ~ 104°F)
GLP/GMP/ISO
Available
Self Check Function
Standard
Communication Software
WinCT-Moisture standard
WinCT standard
n/a
Sample Pan Size
2.16 inches (0.85 mm)
Power
AC 100V to 120V or AC 200V to 240V, 50/60 Hz, approximately 400 W
Dimensions
5.46 W x 8.1 D x 4.4 H inches
(215 W x 320 D x 173 H)
Standard Accessories
20 Sample Pans, 2 Pan Handles, Tweezers, Spoon, Test Sample (30 g of Sodium Tartrate Dihydrate), CD-ROM Software (WinCT-Moisture for MS & MX, WinCT for MF), Glass Fiber Sheet, RS-232C cable (for MS, MX), Display Cover, Dust Cover, Instruction Manual, Quick Reference Card, Power Cable, Fuse

Weight: 15.00 lb
