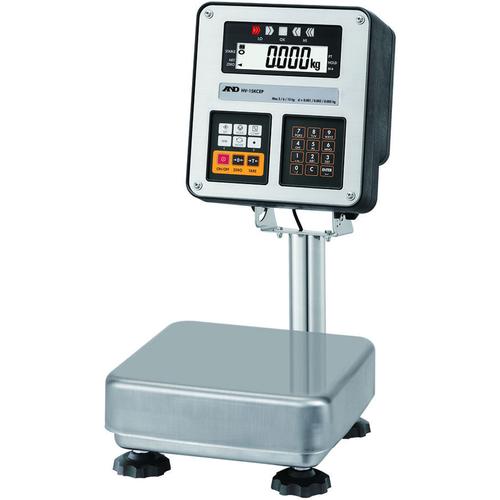

AND Weighing HW-10KCEP Intrinsically Safe IP65 Waterproof Bench Scale - 20lb x 0.002lb
The HW-CEP bench scale family is designed to weigh safely in potentially explosive atmospheres. The intrinsically safe product design ensures the highest level of safety and complies with the latest hazardous area standards.
The fully configurable, large 5 segment lights enable fast, accurate checkweighing.
Auto-tare, accumulation and counting features add to the benefits of this truly versatile hazardous area scale. more ...
Capacity x Readability 20 lbx 0.002 lb Pan Size 250x250 mm
Features
The HW-CEP bench scale family is designed to weigh safely in potentially explosive atmospheres. The intrinsically safe product design ensures the highest level of safety and complies with the latest hazardous area standards.
The fully configurable, large 5 segment lights enable fast, accurate checkweighing.
Auto-tare, accumulation and counting features add to the benefits of this truly versatile hazardous area scale.
FEATURES
Intrinsically Safe
IP65 Dust & Waterproof Platform
Accumulation Function
Comparator Function
Auto Power Off
Battery Operation
Piece Counting
Capacity
10kg / 20lb / 320oz / 20lb-oz
Resolution
0.001kg / 0.002lb / 0.05oz / 0.1oz
Counting Mode (Max. Countable Number)
100,000
Counting Mode (Number of Samples)
5, 10, 20, 50 or 100
Response Time *i
Within 1.5 seconds
Repeatability (std. deviation)
0.002kg
Linearity
±0.002kg
Sensitivity Drift (typical)
±20 ppm / °C (5 °C to 35 °C / 41 °F to 95 °F)
Display
7 segment LCD (Character height: 25 mm) with backlight; 3-color, 5-step LED comparator lights
Display Refreshment Rate
10 times / second
Operating Temperature
–10 °C to 40 °C / 14 °F to 104 °F, 85% R.H. or less (no condensation)
Power Supply
Four D-size, alkaline, 1.5 V batteries*ii
Battery Life (approx.)
1,500 hours with LED and backlight OFF or 1,000 hours with LED and backlight ON
Weighing Pan Size
250 × 250mm / 9.8 x 9.5in
Dimensions (W x D x H)
250 × 439 × 397mm / 9.8 x 17.3 x 15.6in
Weight (approx.)
8kg / 17.6lb
*i Time required for the last digit to settle (the stabilization mark will be lit one second after), which is subject to the weighing environment, response characteristic setting and how the target object is placed. *ii Only DURACELL MN1300, ENERGIZER E95, or Panasonic LR20 (XI) can be used (but not mixed).
Weight:18.00 lb

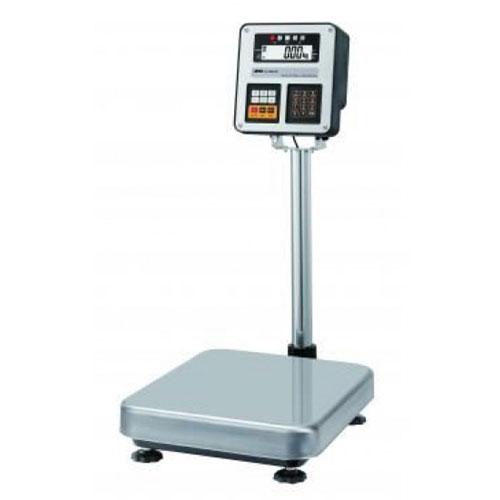

Other AND Weighing HW-CWP Waterproof Platform Scales
7 segment LCD (Character height: 26 mm) with backlight 3-color, 5-step LED comparator lights
Display refresh rate
10 times / second
Operating environment
-10 to 40 ºC / 14 to 104 ºF, 85% RH or less (no condensation)
Power supply
Four D-size, alkaline, 1.5 V batteries *iii
Battery life (approx.)
1,500 hours with LED and backlight OFF or 1,000 hours with LED and backlight ON
Weighing pan size
250 x 250 mm 9.8 x 9.8 in
330 x 424 mm 13.0 x 16.7 in
390 x 530 mm 15.4 x 20.9 in
Dimensions (W × D × H)
250 × 439 × 397 mm 9.8 × 17.3 × 15.6 in
330 × 585 × 776 mm 13.0 × 23.0 × 30.6 in
390 × 691 × 776 mm 15.4 × 27.2 × 30.6 in
Dimensions (W × D × H)
8 kg / 17.6 lb
12 kg / 26.5 lb
18 kg / 39.7 lb
*i Multi-interval: The lighter the target object, the finer the readability.
*ii Time required for the last digit to settle (the stabilization mark will be lit one second after), which is subject to the weighing environment, response characteristic setting and how the target object is placed.
*iii Only DURACELL MN1300, ENERGIZER E95, or Panasonic LR20 (XJ) can be used (but not mixed).
