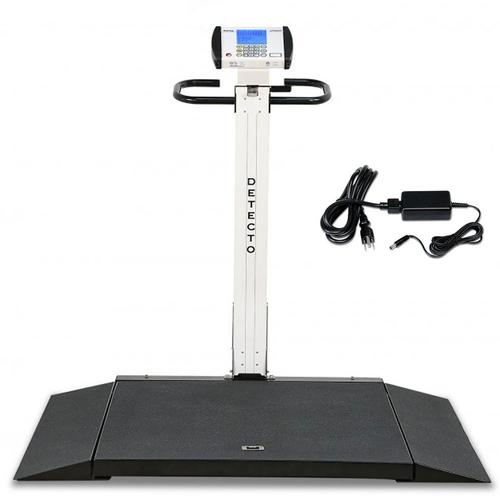

Detecto 6550AC Digital Wheelchair Scale with AC Adapter 1000 lb x 0.2 lb
Detecto portable wheelchair scales are sturdy, yet lightweight. The Detecto 6550 folds up for easy transport. Highly versatile with a large 800 pound capacity, the 6550 can be used with wheelchairs, straight-legged chairs or as a stand-alone scale. Detecto 6550AC Digital Wheelchair Scale with AC Adapter 1000 lb x 0.2 lb more ...
Sturdy, yet lightweight, this Detecto 6550 portable wheelchair scale folds up for easy transport. Highly versatile, the 6550 wheelchair scale can be used with wheelchairs, straight-legged chairs or as a stand-alone scale. The fold-up ramps allow entry from either side, along with the vertical fold up feature. Heavy duty wheels and self-contained power make the 6550 Detecto medical scale mobile while minimizing storage space.
Dimensions: 40 L x 38 W x 10 H (closed)
Platform: 28 x 28 non-slip rubber mats cover deck and ramps
Capacity: 800 lbs x 0.2 lbs or 382 kg x 0.1 kg - switchable between pounds and kilogram
Easy to read LCD display is easy to view from wide angles
Power: 6 C Alkaline batteries (included)
Functions: Auto power off, Auto zero, motion detection/weight lock in, numeric keypad for easy entry of chair weight
This incredibly-popular lightweight USA-made scale offers a wide range of versatility. It can be used with wheelchairs, straight-legged chairs or as a stand-on scale, and its sloped ramps offer versatility by allowing entry from either side. The 6550s vertical fold-up feature and heavy-duty wheels contribute to its ease of mobility in four directions and minimal storage space needed. The 6550s digital weight indicator is the industry’s most advanced, featuring serial, USB and optional wired and Wi-FI Ethernet output, BMI calculation, yellow “quick keys” for basic weighing, 350-degree rotating mounting bracket for viewing in all angles, and an easy-to-read blue LCD display. Platform measures 30 x 32 inch (76 x 81 cm). EMR/EHR ready. 1,000 lb x 0.2 lb / 450 kg x 0.1 kg capacity. OIML EC Class III model available.
This sturdy, but lightweight, scale offers a wide range of versatility. It can be used with wheelchairs, straight-legged chairs or as a stand-on scale, and its sloped ramps offer versatility by allowing loading from either side. The 6550s vertical fold-up feature and heavy-duty wheels contribute to its ease of mobility and lack of needed storage space.
With the 6550, tare weight may be either preset or keyed in directly and the patients weight is automatically displayed. The digital display makes it easy to view from wide angles. The large, easily accessed weighing platform and low angle ramps make the 6550 ideal for patient comfort and security.
Capacity: 1000 lb x 0.2 lbs (450 kg x 0.1 kg)
Includes NEW Detecto MV1 indicator (click here for specs)
Body Mass Index feature
Easy storage - Column folds down and latches securely into position, ready for transport
Easy transport - Unit may be lifted and stored or transported in an upright position
Platform: 31.7 x 30 inch wide with nonskid removable mat, entrance and exit mats
Display: 0.7 inch high contrast LCD display for wall or table mount
Power: 6 "C" alkaline batteries or optional AC adapter
Detecto P220 Direct Thermal Label Printer more info Price: $599.00 In Stock
Detecto's P220 desktop printer boasts a surprisingly compact footprint without compromising performance or value. The P220 can connect via serial port with any Detecto digital scale that has serial output capabilities, including any medical scale featuring the 758C weight indicator.
This 2-inch print width printer offers a multitude of user-friendly and innovative features, all packed in a small, but sturdy double-walled casing. With its electronic platform, the P220 delivers high-quality bar code label printing at 3.5 inches per second and is ideal for Point of Sale or product marking in Food Service use or patient tracking or medical record keeping in Health Care use.
Detecto P-150 Mobile Tape Printer With Serial Interface more info Price: $705.00 In Stock
Detecto's P150 printer is a battery-operated ticket printer that can be mounted to any 758C with the new serial port. The bracket conveniently mounts to the back of the 758C using 2 existing screws. Printing at 50 mm/sec, the P150 utilizes a long-life lithium-ion battery that supplies up to 40,000 lines of 8 dots/mm (203 dpi) thermal printing on a single charge.
PRINT WEIGHT, BODY MASS INDEX, TIME, DATE, AND HEIGHT
Lithium Ion battery with up to 20,000 printed weighments before recharging. The batteries recharge to full capacity in only 3 hours
RS-232 serial connectivity - includes compact cable ready to plug into Detecto's 758C
Battery low status lamp
The bracket conveniently mounts to the back of the 758C using 2 existing screws
Detecto P185 Thermal Tape Printer With Serial Interface more info Price: $486.00 In Stock
Detecto's P185 is capable of high speed, low cost printing with a throughput unmatched at this price today. The combination of the latest in processor speed with an 8Mbit Flash memory, a print speed of 3.9"/100 mm per second (31 lines per second) and highly sophisticated drivers has resulted in a low cost printer capable of achieving the same high quality output at speeds similar to “so-called” higher specified competitive products. Barcodes and high quality graphics can all be produced at high speed.
The P185 can connect via serial port with any Detecto digital scale that has serial output capabilities, including any medical scale featuring the 758C weight indicator
Quality thermal tape printers with high speed processor for a true print speed of 100mm per second.
Quality design for low cost receipt printing with the added cost effective flexibility of a unique tear bar version.
Quality engineering providing user-friendly features including easy paper loading, 58mm paper width option with user installable paper guide (80mm standard) and two colour print capability (red and black or blue and black).
"Drop and Load" Easy Print - It couldn’t be simpler – open the case, drop the new roll of paper in and shut the lid!
Detecto WinDDE Dynamic Data Exchange more info Price: $595.00 In Stock
WinDDE Server communicates with up to 20 weight indicators attached to a computer. Weight indicators may be connected using standard computer serial ports or via ethernet using TCP/IP. The weight and status of the weight indicators is made available to spreadsheets, databases, and industrial control applications by means of Dynamic Data Exchange, or NetDDE for networked computers.
Weight and time stamp information may be automatically captured to Excel® creating a new row of information for each stable weight above threshold. Alternatively, the capture feature may be based on the indicator print button to capture a row of data each time the print key is pressed on the indicator.
Industrial Control Software such as Rockwell RSView®, Automation Direct®, Lookout Direct®, and spreadsheet programs, such as Microsoft Excel® may be used.
A spreadsheet cell, such as A1, shows continuously updating weight.
The spreadsheet may show a continuously updating bar graph.
Formulas in the spreadsheet may show a flashing indication if the weight exceeds or drops below certain levels.
The WinDDE command for the spreadsheet to read weight is simply =windde|scale!wt
Automatic Stable Weight Capture to Excel®
After a weight is placed on the scale and the indicator sees a stable weight, the weight is placed in a spreadsheet cell, such as A5. The operator removes the weight, and the procedure is repeated, but the weight value is placed in the next spreadsheet row, such as A6.
Printer Port Capture to Excel®
After a weight is placed on the scale, the operator at the indicator may press the Print key on the indicator. Instead of printing, the printout information from the indicator is sent to the computer. The computer sets the spreadsheet cells, such as E3 Gross Weight, F3 Tare Weight, G3 Net Weight, etc. The operator then may remove the weight, and the procedure is repeated, but information is placed in the next spreadsheet row, such as E4, F4, G4, etc.
Computer Data Collection
After a weight is placed on the scale, the operator may type information at the computer, such as an ID number to associate the weight. The computer stores the information in a database or spreadsheet. The operator then may remove the weight.
With certain weight indicators, such as the Cardinal model 220, weight monitoring, automatic stable weight capture to Excel® and printer port capture to Excel® can be used simultaneously. Windows® 2000 or XP must be used if more than ten indicators will be connected.
Microsoft Excel®, Microsoft Access®, Wonderware InTouch®, Automation Direct®, Lookout Direct®, and Rockwell Automation RSView® are just a few of the well-known applications which can be used with WinDDE.
Detecto Model WACONNECT Welch Allyn Device more info Price: $170.00 In Stock
Connectivity solution allows capture and viewing of DETECTOs 1LOOK weight, height and BMI measurements and automated data transfer to EMRs.
Welch Allyn, a leading global provider of medical diagnostic equipment, has partnered with DETECTO, America’s largest healthcare scale manufacturer, to enable automated interface between the Welch Allyn Connex® Vital Signs Monitor (Connex VSM), the Welch Allyn Connex® Integrated Wall System (Connex IWS) and select DETECTO medical scales.
Connectivity-ready DETECTO medical scales included under the agreement include eye-level and waist-high electronic column scales for physician and hospital settings, bariatric, wheelchair and visiting nurse scales (listed below) — designed to accommodate every kind of patient need quickly and accurately. These scales operate digitally and are equipped with BMI, easy-to-read display, and auto-off features, plus several models feature digital height rods to speed the measurement process. These scales feature DETECTO’s unique 1LOOK feature which displays height, weight, and BMI all onscreen simultaneously to be viewed in one scan of the eye for efficient patient recordkeeping.
