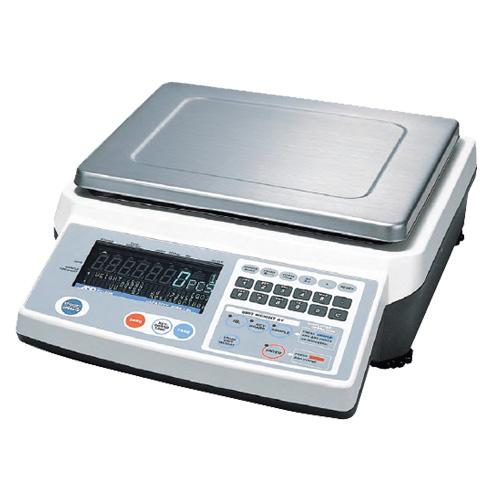

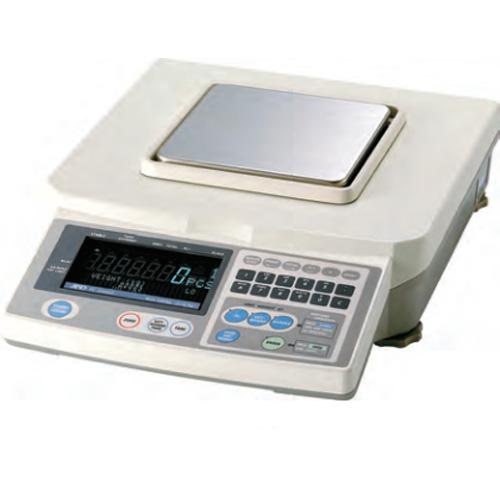

AND FC-1000i Digital Counting Scale, 1 kg x 0.1 g |
|
| All FC-i and FC-Si models utilize ACAI, A&D's exclusive Automatic Count Accuracy Improvement. ACAI combines the two most critical performance requirements of a counting scale: count accuracy and operation expediency. With 1/1 million internal resolution, more ... |
|
Industrial Scales >
Counting Scales >
Dedicated Counting Scales
|
|
|
|
|
|
Features
A&D Weighing has long been a world leading manufacturer of counting scales. The FC-i family of counting scales expands upon the former, popular FC design with higher resolution and more powerful performance features. Thanks to A&Ds unique Super Hybrid Sensor (SHS) technology, the FC-Si models have a remarkable internal resolution of FIVE million parts.
All FC-i and FC-Si models utilize ACAI, A&Ds exclusive Automatic Count Accuracy Improvement. ACAI combines the two most critical performance requirements of a counting scale: count accuracy and operation expediency. Initial Average Piece Weight can be determined through an operators choice of fixed, random, keyboard entry, or memory recall
- 1/1 million internal resolution for FC-i models and 1/5 million internal resolution on FC-Si models
- Standard RS-232C (2nd & 3rd optional)
- 500 sets memory with alphanumeric product names/codes
- 4-line display for easy operator viewing
- Rechargeable battery option
- Remote Scale Option
- 2 Year Warranty
Features:
- High Resolution: 1/5 million internal for FC-Si models and 1/1 million internal for FC-i models
- 500 ID Memories with 6 Digit ID to store and retrieve up to unit weights, tare weights, comparator limits, accumulator and 12 digit alphanumeric codes/names.
- Optional Remote Scale Connector (FC-05) allows easy connection to a remote platform
- Standard bi-directional RS-232C interface with optional 2nd and 3rd interfaces
- LED display steps operator through the proper keys without a manual -- virtually eliminates operator training time
- Simplified Operation Mode disables all but the essential keys
- Optional Hi/Go/Lo Comparator Function with built-in buzzer makes checkweighing easy
- Four Displays always show weight, average piece weight, piece count, item code, tare weight and accumulator
- ACAI Counting Function continuously updates the average piece weight. Provides increased accuracy for parts with inconsistent weights
- Automatic Counting Accuracy Improvement (ACAI) ensures quick, high count accuracy with minimal hand sample count.
- Display prompting eliminates operator errors and maximizes count accuracy
- Optional NiMH built-in battery pack allows recharge while unit is still in use
- 1" high Count display is unmistakable
- Universal Flex Com (UFC) Setup Software allows user to format printer output data.
- Rugged Aluminum Die-Cast Frame Housing with Splash proof Display and Keyboard.
- Full Digital Calibration.
Weight:
16.00 lb
|
|
Other AND Weighing FCi Series Digital Counting Scale
|
Add to Cart for Warranty Information |
| Image |
Name |
Price |
|
|
$1,389.15
|
|
|
$1,024.00
|
|
|
$1,024.00
|
|
|
$1,024.00
|
|
|
$1,024.00
|
|
|
$1,389.15
|
|
|
$1,024.00
|
|
|
$1,024.00
|
|
|
$1,024.00
|
Specifications
| Model |
FC-500i |
FC-1000i |
FC-2000i |
FC-5000i |
FC-10Ki |
FC-20Ki |
FC-50Ki |
FC-500Si |
FC-5000Si |
| Capacity x Readability |
500g x 0.05 g |
1 kg x 0.1 g |
2 kg x 0.2 g |
5 kg x 0.5 g |
10 kg x 1 g |
20 kg x 2 g |
50 kg x 5 g |
500 g x 0.02 g |
5 kg x 0.2 g |
| 1 x 0.0001 lb |
2 x 0.0002 lb |
5 x 0.0005 lb |
10 x 0.001 lb |
20 x 0.002 lb |
50 x 0.005 lb |
100 x 0.01 lb |
1 x 0.00005 lb |
10 x 0.0005 lb |
| Min Weight Unit |
0.0005 g |
0.001 g |
0.002 g |
0.005 g |
0.01 g |
0.02 g |
0.05 g |
0.0001 g |
0.001 g |
| Calibration Weight |
500 g |
1 kg |
2 kg |
5 kg |
10 kg |
20 kg |
50 kg |
500 g |
5 kg |
| Sample Size |
10 pieces normal -- 5, 25, 50, 100 or random number, user selectable |
| Display |
Vacuum Florescent - 7 segment - 5 x 7 dot |
| Power |
100, 120, 220, 240 VAC 50/60Hz (AC Adapter) or optional NiMH battery pack
Operating time approximately 10 hours (main scale only) |
| Platter Dimensions |
8 x 6 in
(200 x 150 mm) |
11.8 x 11.0 in
(300 x 280 mm) |
5 x 5 in
(128 x 128 mm) |
6.5 x 6.5 in
(165 x 165 mm) |
| Dimensions (mm/inches) |
13" (W) x 18.2" (D) x 4.6" (H)
(330 x 462 x 106 mm |
| Accessories |
instruction manual, AC adapter, breeze break (FC-500Si only) |
| Options |
NiMH Battery Pack (Approx. 10 Hrs. Operating time)
2nd and 3rd additional RS-232C ports
Remote second weighing platform in capacities from 30 to 450 lbs |
AD-8121 Statistical Printer
- Rugged impact dot matrix printer
- Full range of statistical functions including .....Weight, Total Weight, Counting Data, Total Count, .Number of operations, Max, Min, Range, Standard..Deviation
- Real Time Clock provides date & time stamp
- Powered by AC adaptor or internal dry batteries
- Chart printing available in standard software
- Interval printing easy to set up via keypad
- Connects to any A&D scale or balance
- Integral self test mode aids service
- Can accept current loop or RS232C from A&Ds .range of scales or balances
|
|
|
|
* within the 48 continental US States
|
| |
|
|
|
|
|
