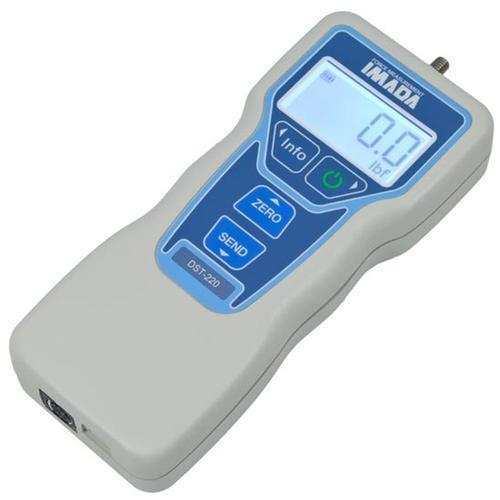

DST Digital Force Gauge
Easy-to-use basic force gauge with large backlit LCD display
Imada DST digital force gauges are simple-to-use basic gauges featuring user-friendly menu operation. Selections including unit and measuring mode can be locked to prevent accidental changes.
The large backlit LCD display can be configured in basic format to show value, unit and measuring mode or multi-line format to display peak and real time values simultaneously. Additional features include reversible display and high/low setpoints with OK indicator for Go/No Go testing.
The gauges have a 30,000/sec sampling rate. Collect the data via USB or RS-232 connections with the included Force Logger or optional SW-1X software.
DST gauges are powered by rechargeable Ni-MH batteries or the AC adapter/charger. The batteries are user replaceable and can also be charged using USB ports or USB portable chargers.
All DST gauges are sold as kits complete with gauge, carrying case, six attachments and AC adapter/charger.
Force Logger (optional) - Available to users who need to collect peak data. Please Call 800-832-0055 or email us.
SW-1 Data Acquisition Software (optional) - Capture and analyze real-time data from any Imada gauge with a USB or RS-232 port directly into any Windows program. Log measurements and generate a profile graph plus statistical information. Control the gauge functions from your computer.
DB-1 Data Input Button (optional) - DB-1 is a compact, one channel interface that enables users to send measurement data to a PC running SW-1X, Imada data acquisition software or other software. The data input button ‘zeros’ the gauge after sending data to the PC eliminating the need to reset manually.
SW-1 is a highly customized Excel spreadsheet specifically designed for capturing and analyzing real-time data from Imada gauges with an RS-232C port.
SW-1 allows real time data from RS-232C instruments to be input directly into any Windows program – including Microsoft Excel. SW-1 inputs gauge readings in real time and provides a running log of all force measurements along with a chart of the data as well as statistical information including Min, Max, Mean, Median, Standard Deviation, Average Deviation and Variance.
Complete control of the gauge is provided through a set of “buttons” on the spreadsheet that enable easy editing of the sampling rate, force measurement units, peak/real time, tare and power off.
Other features include a memory download option for Z2, Z2S-DPU and Z2H gauges only. If desired, the entire stack can be saved to disk, analyzed or cleared. Because all data is entered directly into a standard Excel spreadsheet, you are virtually unlimited in your ability to analyze your force gauge data using all of the powerful tools available in Excel.
Hardware Requirements:
Imada Gauge with RS-232C serial port, CB-203 or CB-204 cable, a Pentium or equivalent with 32MB RAM or better, a mouse and approximately 1 MB hard disk space.
Software Requirements:
Windows 95, Windows 98, Vista, XP, Windows 7, Windows 8 or later
Excel ‘97 or later is Require
DB-1 is a simple, compact, one channel interface that enables the user to send measurement data to a PC running SW-1, Imada data acquisition software, or other software.
Single data mode
This mode simplifies peak measuring tests because it also ‘zeros’ the gauge after sending the data to the computer, thus eliminating the need to reset manually for each test.
Automatic acquisition mode allows users to select different acquisition rates from 20 data/second to 1 data/999.9 seconds. Start data acquisition by clicking the button, then click again to stop, which simplifies start/stop functions by eliminating the need to use computer mouse and screen to control testing. This allows users to focus on the testing rather than the PC and the data acquisition spreadsheet.
As a visual confirmation, the LED lamp will light up for both single data and automatic acquisition modes when data is being sent to the computer.
No external power supply is needed as power is supplied through the PC. Connect Imada gauges to the data input button with cable CB203 and the computer to the data button with a 6 DB9 serial cable (included with DB-1).
DB-1 can also be initiated with a remote switch.
DB-4 data button is available for Digimatic output.
)
