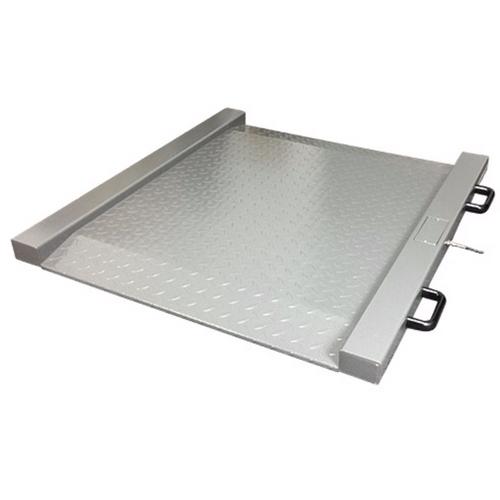

Name: CAS R2-500 Roll on Drum Scale Base 1000 x 0.5 lb
Brand: CAS
SKU: 49502
Price: 865.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Manufacturers

Other Products

CAS R2-500 Roll on Drum Scale Base 1000 x 0.5 lb
The CAS R2 Series Drum Scale is a portable, low profile platform scale with integral ramps, live side rails, wheels, and handles to insure versatility and portability. Use with any general industrial indicator capable of powering up to four (4) 350 ohm load cells or order with CAS Quick Connect hardware to simply interface CAS CI-2001 Series, CI-200 Series, or CI-100A Indicators. more ...

Industrial Scales > Scale Bases No Indicator > Drum Scale Bases

CAS R2-500 Roll on Drum Scale Base 1000 x 0.5 lb

Specifications Chart View Full Detail Page

Have Questions?

email Us

Our Staff will be glad to help

Capacity x Readability
1000 lbx 0
Pan Size
31.5 x 31.5 in

Features

The CAS R2 Series Drum Scale is a portable, low profile platform scale with integral ramps, live side rails, wheels, and handles to insure versatility and portability. Use with any general industrial indicator capable of powering up to four (4) 350 ohm load cells or order with CAS Quick Connect hardware to simply interface CAS CI-2001 Series, CI-200 Series, or CI-100A Indicators.

Low profile for easy access
Anti-Skid diamond plate deck
Integral ramps
Live side rails
Built-in casters for easy transport
Handles for portability
Top access junction box
Adjustable load cell feet
Four environmentally protected planar beam load cells
Patented load cell design and overload checking
150% load cell overload rating
High quality paint finish

OPTIONAL INDICATORS
Use with any general industrial indicator capable of powering up to four (4) 350 ohm load cells or order with CAS optional Quick Connect hardware to simply interface to CAS CI-2001 Series, CI-200 Series, or CI-100A Indicators.

PORTABILITY
The light weight R2 Series Drum Scale has two heavy duty handles and two casters built into the frame. Need to move your scale? No problem. Pick it up and roll it. Its that easy!

Other CAS Roll On

Image	Name			Price
	CAS R2-500 Roll on Drum Scale Base 500 x 0.2 lb SKU: R2-500 500 lb x 0 Pan Size: 31.5 x 31.5 in More Info			$716.00

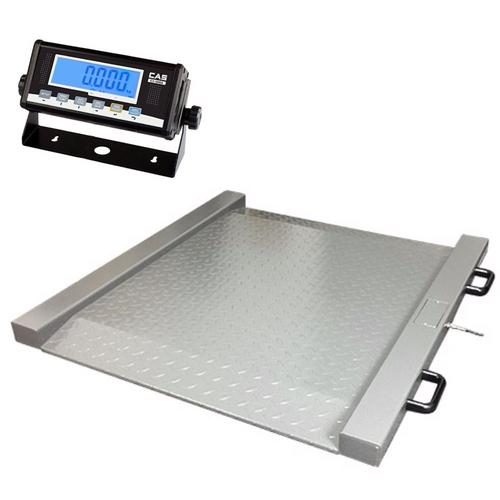

	CAS R2-500 Roll on Drum Scale with Ci-100A 500 x 0.2 lb SKU: R2-500-CI100A Capacity x Readability : 500 lb x 0.2 lb Pan Size: 31.5 x 31.5 in More Info			$796.00
	CAS R2-500 Roll on Drum Scale Base 1000 x 0.5 lb SKU: R2-1000 1000 lb x 0 Pan Size: 31.5 x 31.5 in More Info			$865.00
	CAS R2-1000 Roll on Drum Scale with Ci-100A 1000 x 0.5 lb SKU: R2-1000-CI100A Capacity x Readability : 1000 lb x 0.5 lb Pan Size: 31.5 x 31.5 in More Info			$975.00

Specifications

Model	R2-500	R2-1000
Capacity x Readability	500 x 0.2 lb	1000 x 0.5 lb
Platform Size	31.5 x 31.5 x 1.8 800 x 800 x 46
Cable Length	10 ft - J-Box to Indicator
Overall Dimensions	Inch: 41.3 (W) x 41.3 (D) - mm: 1050 (W) x 1050 (D) x 68 (H)
Product Weight	105.8 lbs / 48 kg
Operating Environment	-10ordm;C ~ 40ordm;C / -14ordm;F ~ 104ordm;F

Optional Accessories

more info

CAS CI-100A Indicator with 1 Inch LCD Display, Legal for Trade

$229.00

The CI-100A is a simple, yet versatile indicator with NTEP and Measurement Canada certifications suitable for legal for trade use. Functionality includes:Weight • Count • Percentage • Accumulation • Hold • Checkweighing • Animal Weighing Capabilities

With a display resolution up to 1/100,000, visibility is insured by a blue backlit 1" high LCD display.

Standard features include a full duplex RS232 serial interface, USB interface, multiple communication protocols, time & date, and various selectable units of measurement including lb, kg, g, oz, lb:oz, pieces (non-commercial only), and percent.
