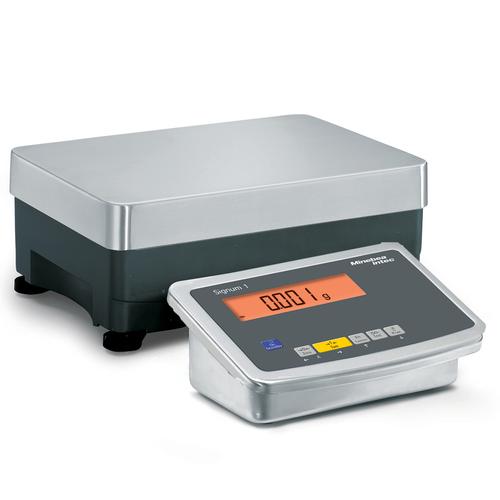

Minebea SIWADCP-V25 Washdown Level 1 Industrial Scale 35 kg x 0.5g |
|
Minebea SIWADCP-V25 is a compact industrial scale in which a mechatronic weigh cell is used. Speed-up technology makes the Signum uniquely fast, which means Signum bench scales can weigh in half a second. more ... |
Scales >
Industrial Scales >
Bench Scales
|
|
|
|
Features
Minebea Signum compact bench scale features gorgeous cast aluminum base and a 14 segment, orange backlit display. Most displays on balances are only 7 segments, but Sartorius Signum indicators use twice as many segments for an easier to read digital display.
Pre-configured Signum offers exceptional performance features and is very easy to operate. SIWADCP-V25 is extremely rugged and resistant, and perfectly adapts to any ambient conditions in an industrial environment. With Signum, anything is possible: pick and choose your level of applications and different resolutions, and enjoy the benefits of a wide variety of interfaces and options for IP65 protection, use in harsh areas and for many more features. Sartorius Signum is a compact scale built exactly the way you want it – without compromises.
Model |
SIWADCP-V3 |
SIWADCP-V4 |
SIWADCP-V5 |
SIWADCP-V6 |
Capacity x Readability |
7 kg x 0.1 g |
7 kg x 0.1 g |
35 kg x 0.5 g |
65 kg x 1 g |
Repeatability |
0.2 g |
0.2 g |
1 g |
2 g |
Linearity |
0.3 g |
0.3 g |
2 g |
4 g |
Platform Size |
12.6" x 9.4" |
12.6" x 9.4" |
12.6" x 9.4" |
12.6" x 9.4" |
Scale Dimensions |
16.4" x 5.2" |
16.4" x 5.2" |
16.4" x 5.2" |
16.4" x 5.2" |
Weigh Cell |
Strain Gauge |
Strain Gauge |
Strain Gauge |
Strain Gauge |
Display Type |
Backlit Liquid Crystal Display with 14 Segments |
Backlit Liquid Crystal Display with 14 Segments |
Backlit Liquid Crystal Display with 14 Segments |
Backlit Liquid Crystal Display with 14 Segments lb |
Power |
AC Powered Only |
AC Powered Only |
AC Powered Only |
AC Powered Only |
Operating Temperature |
-10°C to 40°C (14°F to 104°F) |
-10°C to 40°C (14°F to 104°F) |
-10°C to 40°C (14°F to 104°F) |
-10°C to 40°C (14°F to 104°F) |
Protection Rating |
IP65 |
IP65 |
IP65 |
IP65 |
Indicator/Platform Material |
Die-Cast Aluminum - (AISI304)
(Stands up to most citrus applications) |
Die-Cast Aluminum - (AISI304)
(Stands up to most citrus applications) |
Die-Cast Aluminum - (AISI304)
(Stands up to most citrus applications) |
Die-Cast Aluminum - (AISI304)
(Stands up to most citrus applications) |
Indicator Cable Length |
3 meters (coiled in units base) |
3 meters (coiled in units base) |
3 meters (coiled in units base) |
3 meters (coiled in units base) |
External Calibration |
Requires 2000 g Cal. Weight |
Requires 2000 g Cal. Weight |
Requires 10,000 g Cal. Weight |
Requires 2000 g Cal. Weight |
Functions |
Zero, Tare |
Zero, Tare, Counting, Checkweighing, Classification, Averaging(animal weighing), Totalizing, Neutral Measurement, % Weighing, Formulation, Product Data Memory (100), 4 Configurable ID Fields |
Zero, Tare, Counting, Checkweighing, Classification, Averaging(animal weighing), Totalizing, Neutral Measurement, % Weighing, Formulation, Product Data Memory (100), 4 Configurable ID Fields |
Zero, Tare, Counting, Checkweighing, Classification, Averaging(animal weighing), Totalizing, Neutral Measurement, % Weighing, Formulation, Product Data Memory (100), 4 Configurable ID Fields |
Standard Features |
Basic Weighing, RS232 interface, Underhook |
Basic Weighing, RS232 interface, Underhook |
Basic Weighing, RS232 interface, Underhook |
Basic Weighing, RS232 interface, Underhook |
Level |
Level 1 Weigh Only |
Level 3 |
Level 3 |
Level 3 |
Application Levels and Their Capabilities
Level Capabilities |
Level 1 |
Level 2 |
Level 3 |
Keypad |
6 Keys |
14 Keys |
17 Keys |
Display |
14 Segments |
14 segments plus application symbols |
14 segments plus application symbols |
Weighing |
Yes |
Yes |
Yes |
Averaging |
N/A |
Yes |
Yes |
Reference Scale Connection |
N/A |
Yes |
Yes |
Counting |
N/A |
Yes |
Yes |
Totalizing |
N/A |
Yes |
Yes |
Checkweighing |
N/A |
Yes |
Yes |
Product Data Memory |
N/A |
N/A |
Yes |
Date/Time |
N/A |
Option A31 |
Option A31 |
SQ min (min sample qty) |
Yes |
Yes |
Yes |
ID Codes (4x40 characters) |
N/A |
N/A |
Yes |
Dimensions X:
35.00
Y:
0.50
Weight:
30.00 lb
|
|
Other Minebea Intec Signum Models Advanced - Scales
|
Specifications
Sartorius Preconfigured Signum Advanced Weighing System
|
Model |
Capacity(Lbs.) x Readability(g) |
Pan Size |
Appplication Level |
Advanced Weighing |
SIWADCP-V3 |
7 x 0.1 |
13.7 x 9.7 |
1 |
SIWADCP-V4 |
7 x 0.1 |
13.7 x 9.7 |
3 |
SIWADCP-V5 |
35 x 0.5 |
13.7 x 9.7 |
3 |
SIWADCP-V6 |
65 X 1.0 |
13.7 x 9.7 |
3 |
SIWADCP-V24 |
16 x 0.2 |
13.7 x 9.7 |
1 |
SIWADCP-V25 |
35 x 0.5 |
13.7 x 9.7 |
1 |
Regular, Basic Weighing |
SIWRDCP-V20 |
6 x 0.2 |
13.7 x 9.7 |
3 |
SIWRDCP-V21 |
15 x 0.5 |
13.7 x 9.7 |
3 |
SIWRDCP-V22 |
35 x 1.0 |
13.7 x 9.7 |
3 |
SIWRDCP-V23 |
60 x 2.0 |
13.7 x 9.7 |
3 |
Regular, Application Level 3 |
SIWSBBP-V16 |
3.1 x 0.01 |
7.1 x 7.1 |
1 |
SIWSBBP-V17 |
6.1 x 0.01 |
7.1 x 7.1 |
1 |
SIWSDCP-V18 |
16 x 0.1 |
13.7 x 9.7 |
1 |
SIWSDCP-V19 |
35 x 0.1 |
13.7 x 9.7 |
1 |
Legal For Trade |
NO |
Calibration |
External |
Options |
IP65 |
Features |
External Standard RS232 IP65 LCD Backlight Remote |
Applications |
Application Level 1:Basic Weighing, Toggle Key Application Level 2:Basic Weighing, Counting, Check Weighing, Classification, Averaging, Totalizing, Neutral Measurement, % Weighing, Formulation, 2nd A/D converter connection for reference scale option. Application Level 3:Basic Weighing, Counting, Check Weighing, Classification, Averaging, Totalizing, Neutral Measurement, % Weighing, Formulation, 2nd A/D converter connection for reference scale option, Product Data Memory (100), 4 Configurable ID fields, Ability to combine 3 applications. |
|
|
* within the 48 continental US States
|
