Name: Cambridge 3877-1004-00 Model 660 Classic HD 48 x 48 x 7 Base Only 40000 lb
Brand: Cambridge Scale
SKU: 40703
Price: 4270.25 USD
Availability: InStock
Rating: 5 (1 reviews)

Manufacturers

Other Products

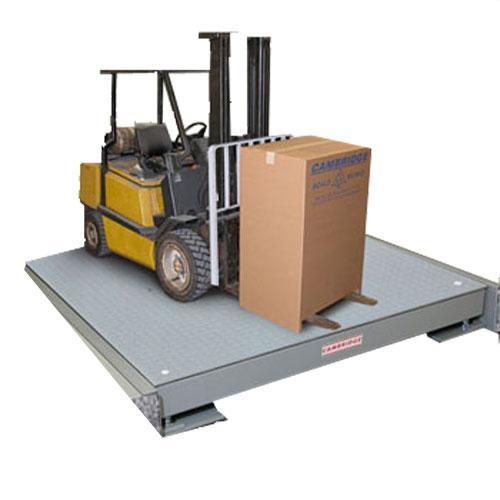

Cambridge 3877-1004-00 Model 660 Classic HD 48 x 48 x 7 Base Only 40000 lb
Stainless Steem NEMA 4x junction box shown with top access plated removed. Top access simplified periodic adjustments. Each load cell is pocketed in the frame of the scale protecting both the load cell and wiring. more ...

Scales > Industrial Scales > Floor Scales

Cambridge 3877-1004-00 Model 660 Classic HD 48 x 48 x 7 Base Only 40000 lb

Specifications Chart View Full Detail Page

Have Questions?

email Us

Our Staff will be glad to help

Note: This product can only be shipped Ground Delivery.

Cambridge 3877-1004-00 Model 660 Classic HD 48 x 48 x 7 Base Only 40000 lb

Price: $4,270.25

Available to Ship

Optional Accessories

View Features

Cambridge Scale
SKU: 3877-1004-00

Features

Stainless Steem NEMA 4x junction box shown with top access plated removed. Top access simplified periodic adjustments. Each load cell is pocketed in the frame of the scale protecting both the load cell and wiring.

ACCESSORIES

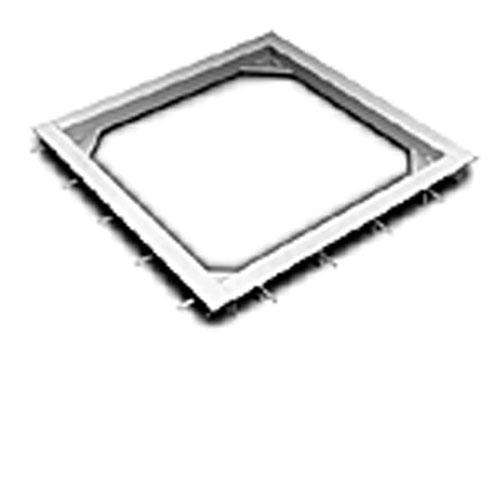

PIT FORMS

Includes everything but the concrete. Each Cambridge Scale Works pit is custom built to exactly contain the scale you order. These forms feature welded tubular steel sections on all sides and corner plates for easy installation.

BUMPER GUARDS

Protect your investment and add years to the life of your scale with our diamond steel bumpers. Angled design deflects fork lift blades and prevents unwanted movement and damage to scale. Bumpers are available in 360° surround style or any combination of sides to fit your specific application/ Each Cambridge Scale Works bumper guard is custom built to exactly fit your scale.

EASY INCLINE RAMPS

These back saving ramps are ideal when a pit application is impossible. Easy 6° incline ramps are designed to fit all four sides of any 660 scale and lock in place with the attached brackets. Includes lag down brackets.

CONCENTRATED LOAD CRADLE

Designed to secure round objects, such as coils, from moving during weighing. The cradle is designed to work with our 660-Coil series scale and is adjustable to match the diameter of the object being weighed.

INDICATOR / PRINTER STANDS

360° of movement as well as telescoping capability make these rugged, sturdy stands ideal for the secure mounting of your valuable indicator or printer or both. Both models feature adjustable leveling feet for a wobble free stance on almost any floor environment. These stands work equally well as a companion to many of the other scales in the Cambridge Scale Works line.

LOCATOR BRACKETS

These heavy steel brackets help to keep your 660 securely where you want it. Choose lag downs for floor mounting or pit spacers for pit applications.

STANDARD FEATURES

10,000 through 40,000 Lb capacities

Cross strutted structural tubular steel construction.

3/8 inch thick diamond steel deck plate.

Four internally mounted, IP 67 rated water resistant load cells.

Polycarbonate NEMA 4x junction trim box.

Top access junction box and leveling feet.

Self checking, captive ball leveling feet.

20 foot shielded indicator cable.

Eye bolt holes for easy setup and moving.

OPTIONS

Stainless steel load cells

"FM" approved load cells

Dimensions
X: 48.00 Y: 48.00 Z: 4.00

1 Year Manufacture Warranty

Other Cambridge Scale Model 660 Classic HD

Image	Name			Price

Specifications

Model	Size (Inch)	Capacity	Legal For Trade
660HD484861	48 x 48 x 6	10,000 x 2 lb	YES cc# 96-157A1
660HD484862	48 x 48 x 6	20,000 x 4 lb	YES cc# 96-157A1
660HD484863	48 x 48 x 7	30,000 x 3 lb	-
660HD484864	48 x 48 x 7	40,000 LB.	-
660HD487261	48 x 72 x 6	10,000 x 4 lb	YES cc# 96-157A1
660HD487262	48 x 72 x 6	40,000 x 4 lb	YES cc# 96-157A1
660HD487263	48 x 72 x 7	30000 x 4 lb	-
660HD487264	48 x 72 x 7	40000 x 4 lb	-
660HD606061	60 x 60 x 6	10,000 LB.	YES cc# 96-157A1
660HD606062	60 x 60 x 6	20,000 LB.	YES cc# 96-157A1
660HD606063	60 x 60 x 7	30,000 LB.	-
660HD606064	60 x 60 x 7	40,000 LB.	-
660HD608461	60 x 84 x 6	10,000 LB.	YES cc# 96-157A1
660HD608462	60 x 84 x 6	20,000 LB.	YES cc# 96-157A1
660HD608463	60 x 84 x 7	30,000 LB.	-
660HD608464	60 x 84 x 7	40,000 LB.	-
660HD609661	60 x 96 x 6	10,000 LB.	YES cc# 96-157A1
660HD609662	60 x 96 x 6	20,000 LB.	YES cc# 96-157A1
660HD609663	60 x 96 x 7	30,000 LB.	-
660HD609664	60 x 96 x 7	40,000 LB.	-
660HD601263	60 x 120 x 7	30,000 LB.	-
660HD601264	60 x 120 x 7	40,000 LB.	-
660HD727261	72 x 72 x 6	10,000 LB.	-
660HD727262	72 x 72 x 6	20,000 LB.	-
660HD727263	72 x 72 x 7	30,000 LB.	-
660HD727264	72 x 72 x 7	40,000 LB.	-
660HD729662	72 x 96 x 6	20,000 LB.	-
660HD729663	72 x 96 x 7	30,000 LB.	-
660HD729664	72 x 96 x 7	40,000 LB.	-
660HD721263	72 x 120 x 7	30,000 LB.	-
660HD721264	72 x 120 x 7	40,000 LB.	-

Optional Accessories

more info

Cambridge CSW-10AT LED Digital Weight Indicator Legal for Trade

$324.00

Cambridge CSW-10AT Digital Weight Indicator Legal for Trade

Selectable: NTEP 5,000 Division - Non-NTEP 20,000 Division
Net/Gross Display Modes
Full Range Auto Tare
Adjustable Digital Filtering
All Push-button Controls
LED Display (Bright)
Printer Data Output on Demand
9 Pin Load Cell Connection
Simple No-Soldering Load Cell Connection
Clearly, Visible Center of Zero Indication on Display
Lb/Kg Conversion
Keypad Calibration with Audit Trail
Weight Totalization 1 to 5 points of Digital Calibration available
Span Adjustment at Increasing or Decreasing Weights
Full Range Push Button Zero
(1) RS-232 Port for Interface with:
Printer Output of Gross/Tare/Net
Computer Data Output
Scoreboard Continuous Output Alphanumeric or Numeric
AC Adapter Provided
Auto Zero Tracking
Adjustable Motion Detection
ABS Plastic Dust-Tight Enclosure with Stainless Steel Swivel Stand

Applications:

Floor Scales
Bench Scales
Hopper Scales
Tank Scales
Fork Lift Scales
General Purpose Weighing
Remote Display Configuration

Optional Features: Models CSW-10AT

110 VAC Dry Contact Set Point
12 VDC Accessory Port Power Cable
Peak Weight Hold
Digital Scroll Tare
Scale Warning System - strobe light with audible warns operator when sets limits have been exceeded
WiFi transmitter to customers wireless hub
Ethernet Connection

more info

Cambridge CSW-10AT-B LED Digital Weight Indicator Legal for Trade - Battery Operated

$490.50

Cambridge CSW-10AT-B Digital Weight Indicator Legal for Trade

Selectable: NTEP 5,000 Division - Non-NTEP 20,000 Division
Net/Gross Display Modes
Full Range Auto Tare
Adjustable Digital Filtering
All Push-button Controls
LED Display (Bright)
Printer Data Output on Demand
9 Pin Load Cell Connection
Simple No-Soldering Load Cell Connection
Clearly, Visible Center of Zero Indication on Display
Lb/Kg Conversion
Keypad Calibration with Audit Trail
Weight Totalization 1 to 5 points of Digital Calibration available
Span Adjustment at Increasing or Decreasing Weights
Full Range Push Button Zero
(1) RS-232 Port for Interface with:
Printer Output of Gross/Tare/Net
Computer Data Output
Scoreboard Continuous Output Alphanumeric or Numeric
AC Adapter Provided
Auto Zero Tracking
Adjustable Motion Detection
ABS Plastic Dust-Tight Enclosure with Stainless Steel Swivel Stand

Applications:

Floor Scales
Bench Scales
Hopper Scales
Tank Scales
Fork Lift Scales
General Purpose Weighing
Remote Display Configuration

Model CSW-10AT-B For portable applications where battery operation is required. Includes all standard CSW-10AT features plus:

Battery/AC Operation
Internal Battery Charger
Lithium-Ion Battery
Sleep Mode

Optional Features: Model CSW-10AT-B

110 VAC Dry Contact Set Point
Digital Scroll Tare
spare Battery Wall Charger (p/n 1165-1012-00)
12 VDC Accessory Port Power Cable
Peak Weight Hold

more info

Cambridge SSCSW-10AT Stainless Steel LED Digital Weight Indicator Legal for Trade

$585.00

Cambridge CSW-10AT Digital Weight Indicator Legal for Trade

Stainless Steel NEMA 4X Enclosure with Stainless Steel Swivel Stand
Selectable NTEP 5,000 Divisions Non-NTEP 20,000 Divisions
Net/Gross Display Modes
Full Range Auto Tare
Adjustable Digital Filtering
All Pushbutton Controls
LED Display (Bright)
Printer Data Output on Demand
Clearly, Visible Center of Zero Indication on Display
Lb/Kg Conversion
Keypad Calibration with Audit Trail
Weight Totalization
1 to 5 points of Digital Calibration
Span Adjustment at Increasing or Decreasing Weights
Full Range Push Button Zero
(1) RS-232 Port for Interface with:
- Printer Output of Gross/Tare/Net
- Computer Data Output
- Scoreboard Continuous Output Alphanumeric or Numeric
120 VAC Cord with Ground
Auto Zero Tracking
Adjustable Motion Detection
(6) Pin Water Tight Signal Connection
RFI / EMI Screened

Options: Models SSCSW-10AT

110 VAC Dry Contact Set Point
Peak Weight Hold
Digital Scroll Tare
WiFi transmitter to customers wireless hub

more info

Cambridge SSCSW-10AT-B LED Stainless Steel Digital Weight Indicator Legal for Trade - Battery Operated

$715.50

Stainless Steel NEMA 4X Enclosure with Stainless Steel Swivel Stand
Selectable NTEP 5,000 Divisions Non-NTEP 20,000 Divisions
Net/Gross Display Modes
Full Range Auto Tare
Adjustable Digital Filtering
All Pushbutton Controls
LED Display (Bright)
Printer Data Output on Demand
Clearly, Visible Center of Zero Indication on Display
Lb/Kg Conversion
Keypad Calibration with Audit Trail
Weight Totalization
1 to 5 points of Digital Calibration
Span Adjustment at Increasing or Decreasing Weights
Full Range Push Button Zero
(1) RS-232 Port for Interface with:
- Printer Output of Gross/Tare/Net
- Computer Data Output
- Scoreboard Continuous Output Alphanumeric or Numeric
120 VAC Cord with Ground
Auto Zero Tracking
Adjustable Motion Detection
(6) Pin Water Tight Signal Connection
RFI / EMI Screened

Model SSCSW-10AT-B For portable applications where battery operation is required. Includes all standard SSCSW-10AT features plus:

Battery/AC Operation
Internal Battery Charger
Internal Lithium-Ion Battery
Sleep Mode

Options: Models SSCSW-10AT-B

Digital Scroll Tare
Spare Battery (P/N 1165-1012-00)
Peak Weight Hold

more info

Cambridge CSW-15AT 1.5 LED Indicator Legal for Trade with Wireless Remote

$985.50

Standard Features Include

Wireless Remote Control
1.5" Red LED Display
Selectable NTEP 5,000 Division Non-NTEP 20,00 Division
Net/Gross Display Modes
Full Range Auto Tare
Adjustable Digital Filtering
All Pushbutton Controls
LED Display (Bright)
Printer Data Output on Demand
9 Pin Load Cell Connection
Clearly, Visible Center of Zero Indication on Display
Weight Totalization
Keypad Calibration with Audit Trail
1 to 5 Points of Digital Calibration
Span Adjustment @ Increasing or Decreasing Weights
Lb/Kg Conversion
Complete Digital Calibration
Full Range Push Button Zero
(1) RS-232 Port for Interface with:
- Printer Output of Gross/Tare/Net
- Computer Data Output
- Scoreboard Continuous Output Alphanumeric or Numeric
AC Adapter Provided
Auto Zero Tracking
Adjustable Motion Detection
Die-Cast Aluminum Dust-Tight Enclosure with Swivel Stand

Applications:

Floor Scales
Bench Scales
Hopper Scales
Tank Scales
Axle Scales
General Purpose Weighing
Remote Display Configuration

Optional Features: for Model CSW-15AT

110 VAC Dry Contact Set Point
Peak Weight Hold
Digital Scroll Tare
RFL-Radio Frequency Link
WiFi transmitter to customers wireless hub
Ethernet Connection
Scale Warning System - strobe light with audible warns operator when sets limits have been exceeded

more info

Cambridge CSW-15AT-B 1.5 LED Indicator Legal for Trade with Battery and Wireless Remote

$1,138.50

Standard Features Include

Wireless Remote Control
1.5" Red LED Display
Selectable NTEP 5,000 Division Non-NTEP 20,00 Division
Net/Gross Display Modes
Full Range Auto Tare
Adjustable Digital Filtering
All Pushbutton Controls
LED Display (Bright)
Printer Data Output on Demand
9 Pin Load Cell Connection
Clearly, Visible Center of Zero Indication on Display
Weight Totalization
Keypad Calibration with Audit Trail
1 to 5 Points of Digital Calibration
Span Adjustment @ Increasing or Decreasing Weights
Lb/Kg Conversion
Complete Digital Calibration
Full Range Push Button Zero
(1) RS-232 Port for Interface with:
- Printer Output of Gross/Tare/Net
- Computer Data Output
- Scoreboard Continuous Output Alphanumeric or Numeric
AC Adapter Provided
Auto Zero Tracking
Adjustable Motion Detection
Die-Cast Aluminum Dust-Tight Enclosure with Swivel Stand

Applications:

Floor Scales
Bench Scales
Hopper Scales
Tank Scales
Axle Scales
General Purpose Weighing
Remote Display Configuration

Model CSW-15AT-B - For portable applications where battery operation is required. Includes all standard CSW-15AT-B features plus:

Battery/AC Operation
Internal Battery Charger
Lithium-Ion Battery Charger
Sleep Mode

Optional Features: for Model CSW-15AT-B

Peak Weight Hold
Digital Scroll Tare
RFL-Radio Frequency Link
WiFi transmitter to customers wireless hub
Spare Battery
Spare Battery Charger

more info

Cambridge CSW-20AT LED Indicator Legal for Trade with Full Numeric Keypad

$652.50

Standard Features Include

Die Cast Aluminum Enclosure
Stainless Steel Swivel Stand
6-Digit .56” Red LED Display
9-Pin Connection for Signal & communications Ports
No Solder Strain Relief Connections
Red LED Annunciators
Full Numeric Keypad
1 to 5 Points of Linearization
Span Adjustment at Increasing or Decreasing Weights
Keypad Configuration & Calibration with Audit Trail
Front Panel Lock Out
Keypad / Auto Tare
Auto Zero Tracking
Adjustable Motion Detecting
Adjustable Digital Filtering
Time & Date
(2) RS-232 Ports
Print Configuration
Scale ID Entry (30 Alpha Numeric)
Weight Totalization (99 Weights)
ID# Entry (20 Digits)
Piece Counting
AC Adapter
Selectable: NTEP 5,000 Divisions NON-NTEP 20,000 Divisions

Applications:

Floor Scales
Bench Scales
Hopper Scales
Tank Scales
Fork Lift Scales
Counting Scales
General Purpose Weighing

Optional Features for CSW-20AT:

110 VAC Dry Contact Set Point
RFL-Radio Frequency Link
Bar Code Scanner (Pen or Laser)
WiFi Transmitter Connection
Ethernet Connection
Scale Warning System
WI-CELL®-LT wireless communication from carriage to indicator now available

more info

Cambridge CSW-20AT-B LED Indicator Legal for Trade with Battery and Full Numeric Keypad

$805.50

Standard Features Include

Die Cast Aluminum Enclosure
Stainless Steel Swivel Stand
6-Digit .56” Red LED Display
9-Pin Connection for Signal & communications Ports
No Solder Strain Relief Connections
Red LED Annunciators
Full Numeric Keypad
1 to 5 Points of Linearization
Span Adjustment at Increasing or Decreasing Weights
Keypad Configuration & Calibration with Audit Trail
Front Panel Lock Out
Keypad / Auto Tare
Auto Zero Tracking
Adjustable Motion Detecting
Adjustable Digital Filtering
Time & Date
(2) RS-232 Ports
Print Configuration
Scale ID Entry (30 Alpha Numeric)
Weight Totalization (99 Weights)
ID# Entry (20 Digits)
Piece Counting
AC Adapter
Selectable: NTEP 5,000 Divisions NON-NTEP 20,000 Divisions

Applications:

Floor Scales
Bench Scales
Hopper Scales
Tank Scales
Fork Lift Scales
Counting Scales
General Purpose Weighing

Model CSW-20AT-B

For portable applications where battery operation is required. Includes all standard CSW-20AT features plus:

Sleep Mode
Battery/AC Operation
Internal Battery Charger
Lithium-Ion Battery

Optional Features for CSW-20AT-B:

110 VAC Dry Contact Set Point
RFL-Radio Frequency Link
Bar Code Scanner (Pen or Laser)
WiFi Transmitter Connection
WI-CELL®-LT wireless communication from carriage to indicator now available
Replacment Battery
Replacment Battery Charger

more info

Cambridge SSCSW-20AT LED Indicator Stainless Steel Legal for Trade with Full Numeric Keypad

$855.00

Standard Features Include

Stainless Steel Nema 4X Enclosure
Stainless Steel Swivel Stand
6-Digit .56” Red LED Display
6-Pin Watertight Signal Cable Connections
No Solder Strain Relief Communication Connections
Red LED Annunciators
Full Numeric Keypad
1 to 5 Points of Linearization
Span Adjustment at Increasing or Decreasing Weights
Keypad Configuration & Calibration with Audit Trail
Front Panel Lock Out
Keypad / Auto Tare
Auto Zero Tracking
Adjustable Motion Detecting
Adjustable Digital Filtering
Time & Date
(2) RS-232 Ports
Print Configuration
Scale ID Entry (30 Alpha Numeric)
Weight Totalization (99 Weights)
ID# Entry (20 Digits)
Piece Counting
120 VAC Cord with Ground
Selectable: NTEP 5,000 Divisions NON-NTEP 20,000 Divisions

Applications:

Floor Scales
Bench Scales
Hopper Scales
Tank Scales
Fork Lift Scales
Counting Scales
General Purpose Weighing

Optional Features for SSCSW-20AT:

110 VAC Dry Contact Set Point
RFL-Radio Frequency Link
Bar Code Scanner (Pen or Laser)
WiFi Transmitter Connection
Ethernet Connection
WI-CELL®-LT wireless communication from carriage to indicator now available

more info

Cambridge SSCSW-20AT-B LED Indicator Stainless Steel Legal for Trade with Battery and Full Numeric Keypad

$967.50

Standard Features Include

Stainless Steel Nema 4X Enclosure
Stainless Steel Swivel Stand
6-Digit .56” Red LED Display
6-Pin Watertight Signal Cable Connections
No Solder Strain Relief Communication Connections
Red LED Annunciators
Full Numeric Keypad
1 to 5 Points of Linearization
Span Adjustment at Increasing or Decreasing Weights
Keypad Configuration & Calibration with Audit Trail
Front Panel Lock Out
Keypad / Auto Tare
Auto Zero Tracking
Adjustable Motion Detecting
Adjustable Digital Filtering
Time & Date
(2) RS-232 Ports
Print Configuration
Scale ID Entry (30 Alpha Numeric)
Weight Totalization (99 Weights)
ID# Entry (20 Digits)
Piece Counting
120 VAC Cord with Ground
Selectable: NTEP 5,000 Divisions NON-NTEP 20,000 Divisions

Applications:

Floor Scales
Bench Scales
Hopper Scales
Tank Scales
Fork Lift Scales
Counting Scales
General Purpose Weighing

Optional Features for SSCSW-20AT:

110 VAC Dry Contact Set Point
RFL-Radio Frequency Link
Bar Code Scanner (Pen or Laser)
WiFi Transmitter Connection
Ethernet Connection
WI-CELL®-LT wireless communication from carriage to indicator now available

more info

Cambridge - (50267) Attached Indicator Column with Indicator Mounting Plate for 660 48 inch high

$306.00

Sturdy stands ideal for the secure mounting of your valuable indicator. Feature adjustable leveling feet for a wobble free stance on almost any floor environment. , rigid 48 inches high.

more info

Cambridge Stainless Steel 48 inch Rigid Free Standing Indictor Stand (50490)

$387.00

Sturdy stands ideal for the secure mounting of your valuable indicator. Feature adjustable leveling feet for a wobble free stance on almost any floor environment. Stainless Steel construction, rigid 48 inches high.
48 inch high
4 Leaveling feet
Mounting Plate - 8 x 4 inch

more info

Cambridge BUM487 Bumper Guard for 660-Classic-HD Series - 48 x 7

$285.00

Protect your investment and add years to the life of your scale with our diamond steel bumpers. Angled design deflects fork lift blades and prevent unwanted movement and damage to scale. Bumpers are available in 360° surround style or any combination of sides to fit your specific application. Our 360° surround bumper is also available with fork lift skids to add portability to your existing scale. Each Cambridge Scale Works bumper guard is custom built to exactly fit your scale.

more info

Cambridge PIT48487 - Pit Form for 660-Classic-HD Series - 48 x 48 x 7

$703.00

Includes everything but the concrete. Each Cambridge Scale Works pit form is custom built to exactly contain the scale you order. These forms feature welded reinforcing rods on all sides and corner plates for easy installation.
