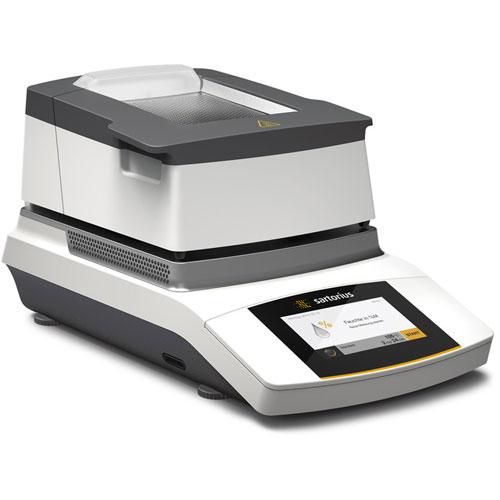

Sartorius - MA37-1US Fully Auto-IR Moisture Analyzer, 70 g x 0.001 g
MA37 is a next-generation moisture analyzer and continues the success story of the MA35. The MA37 delivers fast, accurate results and is easy to operate. This compact device has a BetterClean design which offers effortless cleaning. The status light makes it easy to track the current status of the measurement. more ...
The New Moisture Analyzer – MA37 Fast – Compact – Accurate
Your Reliable Partner for Routine Tasks
MA37 is a next-generation moisture analyzer and continues the success
story of the MA35. The MA37 delivers fast, accurate results and is easy to
operate. This compact device has a BetterClean design which offers
effortless cleaning. The status light makes it easy to track the current
status of the measurement.
Therefore, the MA37 is ideal for users who require a fast, reliable
moisture analyzer which is easy-to-operate and to clean.
Fast measurements - Due to its high-performance heating elements, the MA37 heats quickly which results in reduced measuring time.
Display of measurement status - The status light indicates the current measurement status – “running | START”, “process finished | STOP”, “analyzer OFF” or “error”. It is visible from a distance of up to 10 meters.
User-friendly operation - The intuitive user interface, including touch-screen and easy-to-understand menu, considerably simplifies operation of the MA37.
Effortless cleaning - BetterClean design enables the user to easily and thoroughly clean the instrument parts. Additionally, the heating module and the sample chamber plate are removable and dishwasher safe.
Your Reliable Partner for Routine Tasks
MA37 is a next-generation moisture analyzer and continues the success
story of the MA35. The MA37 delivers fast, accurate results and is easy to
operate. This compact device has a BetterClean design which offers
effortless cleaning. The status light makes it easy to track the current
status of the measurement.
Therefore, the MA37 is ideal for users who require a fast, reliable
moisture analyzer which is easy-to-operate and to clean.
Applications:
The MA37 moisture analyzer can be used for quick and reliable determination of the moisture content of liquid, pasty and solid substances using the thermogravimetric method.
Typical applications of the MA37 include the analysis of foods, beverages, pharmaceuticals, chemicals, paper materials and environmental protection products. For daily recurring moisture analysis tasks, such as in production or incoming goods inspection, the MA37 is perfect!
Technical Specifications:
Fully automatic endpoint determination eliminates the cumbersome capture of termination criteria. The moisture analyzer monitors the drying process and stops the measurement once the sample weight is constant. The built-in weighing system with 1 mg resolution is specifically optimized for use in higher temperature ranges and delivers the required measurement accuracy.
Two powerful metal tube heating elements heat the samples in the MA37. These heating elements are fast, extremely rugged and durable. Compared to glass heating lamps, e.g. infrared lamps or halogen heaters, they are especially resistant to dirt and vibrations.
Max. weighing capacity - 70 g
Repeatability, typical - Starting at an initial sample weight of approx. 1 g: ± 0.2% for initial sample weight approx. > 5 g: ± 0.05%
Readability - 1 mg, 0.01%
Typical sample quantity - 5 – 15 g
Reading display - Moisture content in % M and % g | dry matter in % S and g | ATRO in % M/S
Temperature range and settings - 40°C–160°C, in increments of 1 degree Standby temperature selectable from 40 to 100°C
Sample heating - Infrared heating using a metal tube heater
Heating programs - Standard drying, gentle drying
Shutoff parameter - Fully automatic, semi-automatic, manual and with timer settings
Access to sample chamber - Removable hood with wide opening angle, SoftClose mechanism
Measuring program - 1 program saved in a non-volatile memory (freely selectable method parameters)
Memory for data storage - Results are saved until the start of the next measurement
Sample inspection - LED-illuminated sample chamber, inspection window with grid above the hood
Interface - Mini USB, automatic printer detection, direct transfer to Microsoft programs
Housing dimensions - (W + D + H) 215 + 400 + 210 mm
Sartorius YDP30 thermal transfer printer works with Practum, Quintix, Secura, MA37 and MA160 balances. When you plug the Sartorius YDP30 printer in one of these balances the Sartorius balance automatically detects the YDP30 printer allowing you to generate printouts of the results on standard printer paper or on continuous labels.
The Practum, Quintix, Secura, MA37 or MA160 balance will guide you through the steps for obtaining GLP-compliant printouts. The novel GLP user guidance features will support you, especially for working with traceable sample identification.
Sartorius YDP30 Thermal Transfer Printer Specifications
Resolution - 203 dpi
Printing method - Thermal transfer and direct thermal
Max. print width - 54 mm (2.13")
Ribbon capacity - 90 m, max. 37 mm (1.46") OD, 12.7 mm (0.5") core
What comes with YDP30 - Printer unit, Operating instructions, AC Adapter, USB interface cable (Sartorius part no: 69Y03293), RS-232 interface cable (Sartorius order part: 69Y03295), 1 roll paper
Power - AC Adapter
Dimensions (LxWxH) mm 241 x 140 x 177 mm inches 9.5 x 5.5 x 6.98 inches
