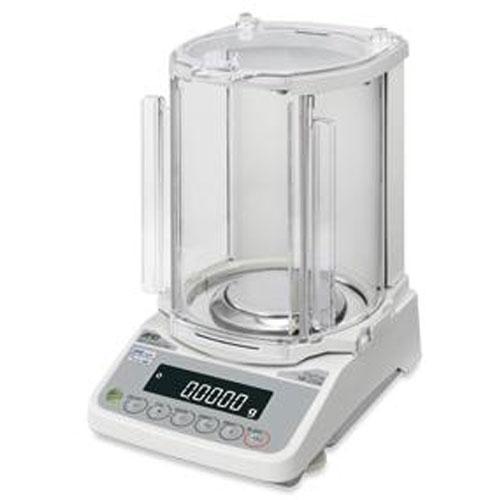

AND Weighing HR-250AZ - Compact Analytical Balance, 252g x 0.1 mg |
|
| The HR-A Series of Compact Analytical Balances are fast, accurate and reliable. They feature solid construction based on the A&D Super Hybrid Sensor (SHS) technology which has delivered consistent weighing results day-in and day-out in thousands of laboratories and production facilities worldwide. The HR-AZ models add highly reliable internal calibration. One-touch automatic calibration ensures consistent balance accuracy. more ... |
|
Laboratory Equipment >
Analytical Balances >
Analytical - 0.1 mg
|
|
|
|
|
|
Features
The HR-A & HR-AZ Series – Saving you space, effort and your budget.
The HR-A Series of Compact Analytical Balances are fast, accurate and reliable. They feature solid construction based on the A&D Super Hybrid Sensor (SHS) technology which has delivered consistent weighing results day-in and day-out in thousands of laboratories and production facilities worldwide.
The HR-AZ models add highly reliable internal calibration. One-touch automatic calibration ensures consistent balance accuracy.
The HR-A and HR-AZ meet today’s demanding needs in: Laboratory, Quality Control / QA, Production, environments and deliver performance with convenience in a compact footprint
Product Features:
- Removable, shatterproof breeze break with antistatic coating
- Compact footprint: 20x30cm / 8x12in.
- GLP/GCP/LIMS/ISO Compliant
- 14 weighing units and functions: g, mg, oz, ozt, ct, dwt, GN, mom, tael, tola, %, pieces,density, statstical function and user-defined units.
- Automatic internal calibration (HR-AZ)
- Underhook weighing
- Clear, reverse-backlit LCD
- Five Year Warranty
Save Space:
Rotary doors mean that the balance takes up no extra space when the doors are open. The HR-A Series is perfectly at home in the tight con? nes of glove boxes and fume hoods. Crowded academic lab benches are no problem: set-up 2 balances back-to-back.
The top of the breeze break also pivots open, so access to beakers and ? asks is easy.
Safe for Sensitive Environments:
The rugged, shatterproof breeze break with anti-static coating makes the HR-A/AZ safe for challenging applications where contamination is a potential concern: Pharmaceutical / FDA
Food / HACCP
Save Effort:
The breeze break detaches in seconds even with heavy gloves. This makes cleaning easier and enables top-loading operation.
The 2-second stabilization time increses productivity by delivering fast results. The HR-A/AZ lets you perform frustration-free weighing down to a resolution of 0.1 mg
Save Cost:
Developed with the value-conscious user who does not want to compromise on performance, the HR-A offers capability and simplicity. When your product goes from lab to production, the HR-A/AZ is cost-effective enough to go with it.
Accessories:
- FXi-02*Quick USB interface with cable
- FXi-08*Ethernet interface with WinCT-Plus software
- FXi-09*Built-in rechargeable battery
- AD-1654Density Determination Kit
- AD-1683Static Eliminator
* The FXi-02, FXi-08 and FXi-09 cannot be used at the same time.
Dimensions
X:
20.00
Y:
24.00
Z:
18.00
Weight:
7.80 lb
|
|
Other AND Weighing HR-A / HR-AZ Series Compact Analytical Balances
|
Specifications
See Low Price in Cart
|
| Model |
HR-100A |
HR-150A |
HR-250A |
HR-100AZ |
HR-150AZ |
HR-250AZ |
| Capacity x Readability |
102g x 0.1 mg |
152g x 0.1 mg |
250g x 0.1 mg
252g x 0.2 mg |
102g x 0.1 mg |
152g x 0.1 mg |
250g x 0.1 mg
252g x 0.2 mg |
| Minimum weighing value |
0.1 mg |
0.1 mg |
0.1 mg |
0.1 mg |
0.1 mg |
0.1 mg |
| Linearity |
±0.2 mg |
±0.2 mg |
±0.3 mg |
±0.2 mg |
±0.2 mg |
±0.3 mg |
| Internal calibration |
NO |
YES |
| Clock and calendar function |
NO |
YES |
| Stabilization time (when set to FAST under a good environment |
Approx. 2 seconds |
| Sensitivity drift |
±2 ppm/°C (10 to 30 °C/50 to 86 °F) |
| Operating environment |
5 to 40 °C (41 to 104 °F), 85% RH or less (no condensation) |
| Display mode |
gram, milligram, ounce, troy ounce, metric carat, momme, pennyweight, grain, counting mode, percent mode, density mode, and a user-programmable unit |
| Display refresh rate |
5 times/second (10 times/second can be selected) |
| Counting mode |
Minimum unit mass 0.1 mg |
| Number of samples 10, 25, 50 or 100 pieces |
| Percent mode |
Minimum 100% reference mass - 10.0 mg |
| Minimum 100% display - 0.01%, 0.1%, or 1% (depends on the reference mass stored) |
| Interface |
RS-232C |
| Weighing pan (diameter) |
190 mm |
| Applicable calibration weight value |
100 g, 50 g |
150 g, 100 g, 50 g |
250 g, 200 g, 100 g, 50 g |
100 g, 50 g |
150 g, 100 g, 50 g |
250 g, 200 g, 100 g, 50 g |
| External dimensions |
198 (W) × 294 (D) × 315 (H) mm |
| Net weight |
Approx. 3.5 kg |
Approx. 3.9 kg |
| Power supply |
AC adapter |
| Power consumption |
Approx. 11 VA (supplied to the AC adapter) |
|
|
|
|
* within the 48 continental US States
|
|
Optional Accessories
more info
|
AND Weighing FXi-02 USB interface with cable FXi--Series
AND Weighing FXi-02 Quick USB interface with cable FXi--Series
FXi-02, FXi-08 and FXi-09 cannot be used at the same time.
(Not IP65 compliant when used with FX-iWP and FZ-iWP)
|
|
more info
|
AND Weighing FXi-08 Ethernet interface with WinCT-Plus software for FXi--Series
AND Weighing FXi-08 Ethernet interface with WinCT-Plus software for FXi--Series
FXi-02, FXi-08 and FXi-09 cannot be used at the same time.
(Not IP65 compliant when used with FX-iWP and FZ-iWP)
|
|
more info
|
AND Weighing FXi-09 Built-in rechargeable battery for FXi--Series
AND Weighing FXi-09 Built-in rechargeable battery for FXi--Series
FXi-02, FXi-08 and FXi-09 cannot be used at the same time.
(Not IP65 compliant when used with FX-iWP and FZ-iWP)
|
|
more info
|
AND Weighing AD-100-2 Anti-theft Device
Anti-theft Device for AND Weighing Everest digital balances
|
|
more info
|
AND Weighing AD-1654 - Density Determination Kit
This density determination kit allows the density or specific gravity of a solid or liquid to be measured easily and accurately based on Arichimedes principle (buoyancy method): A body immersed in a liquid (or a gas) is subject to an upward force equal to the weight of the liquid (or the gas) it displaces. The upward force is buoyancy.
The AD-1654 Kit includes float, wire, float hook, thermometer clamp, thermometer, tweezers, density pan & stand, beaker & stand, balance weights and spanner
1 year warranty
|
|
more info
|
AND Weighing AD-1684 -Electrostatic Field Meter
| Features |
| Range |
0 ~ ±1.49kV (low range) |
±1.0kV ~ ±20.0kV (high range) |
0 ~ ±200V (ion balance measuring range) |
| Power supply |
9V battery (006P) × 1 |
30 hours (max.) Size --123mm(L) × 73mm(W) × 25mm(H)Weight |
Approx. 170g |
| Size |
123mm(L) × 73mm(W) × 25mm(H)Weight |
Approx. 170g |
|
|
more info
|
AND Weighing- AD-1688 -Weighing Data Logger
| AD-1688 |
Specifications |
| Application devices |
Balances and scales manufactured by A&D with an RS-232C connector |
| Memory size |
Approx. 5,000 data sets in the standard format (15 characters in 1 data set) can be stored |
| Clock error |
±1 minute / month |
| Applicable OS |
Windows 2000 / XP / Vista |
| Dedicated power supply |
Not required. Power is supplied by the weighing instrument or PC. |
| Operating environment |
50°F - 86°F (5°C - 40°C ), 85%RH or less (no condensation) |
| Dimensions |
Approx. 2.1 oz (60 g) |
| Weight |
Approx. 2.1 oz (60 g) |
|
|
more info
|
AND Weighing AD-1689 Calibration weight tweezers, pack of 5
| With a length of 210 mm, the tweezers allow a weight to be placed in a weighing pan without having to put a hand inside the chamber. This prevents convection flow that is normally attributed to heat coming from the hand. |
| Each tweezer is made from austenitic stainless steel (SUS304), therefore heat from the hand is unlikely to be transmitted to the weight via the tweezers. This is especially effective for the precise measurements required of analytical balances.
|
| Tips of the tweezers are covered in resin to prevent the weight from slipping. The hilt is also covered with resin for easy gripping. |
|
|
more info
|
AND Weighing AD-8127 Compact Multi-Function Printer
Features
- Easy setting and operation with a numeric keypad and
LCD display
- Built-in calendar and clock for printing date and time
at any time
- Sends re-zero and weighing data request commands to
the balance/scale
- Clear and visible dot matrix printing, which also enables long-term preservation of the
printed records
- Compact and lightweight for portability and installation anywhere
- Interval printing mode for printing weighing data at set intervals
- Chart printing mode for printing time-series variations of weighing data
- Dump printing mode to receive and print GLP/GMP/GCP/ISO compliant output from
the balance/scale
- Performs and prints the results of statistical calculation including standard deviation
- Prints an ID number set for the printer at any time
- Two types of RS-232C cables (D-Sub 25P and D-Sub 9P) provided as standard to
connect to balances/scales with different interfaces*
- Receives a print, paper feed, print statistical calculation results, print total, re-zero, or
weighing data request command from the optional foot switch (AX-SW128)
| Character specifications |
7 × 9 dots, 1.6 (W) × 3.2 (H) mm |
| Printing speed |
Approx. 1.6 lines/second |
| Paper feeding speed |
Approx. 4 lines/second |
| Number of characters printed |
24 characters/line |
| Printer paper width |
57.5 mm |
| Operating environment |
0 to 40 °C/32 to 104 °F, 35 to 85%RH (no condensation) |
| Storage environment |
-20 to 60 °C/-4 to 140 °F, 10 to 90%RH (no condensation) |
| Interface |
RS-232C (D-Sub 9P, male) / Current loop (DIN) |
| Power supply |
AC adapter |
| Size / weight |
174 (W) × 141 (D) × 87 (H) mm / approx. 500 g |
| Standard accessories |
Ink ribbon (1 pc), plain printer paper (1 roll), AC adapter, AC adapter label, instruction manual, two RS-232C cables (D-Sub 25P and D-Sub 9P)* |
|
|
more info
|
AND Weighing AD-1192· Compact Palm-sized Dot-impact Printer
The AD-1192 is a compact, palm-sized dot-impact printer that provides users with essential functions.
Multiple Applications - Use the AD-1192 with A&D balances & scales or in data-logging applications.
Convenient - The AD-1192 is ultra compact, lightweight, low cost and operates with low power consumption. It features a paper near-end detection function.
Connectivity - RS-232C serial interface
Features / Applications
- Compact and light weight
- Uses standard 2 ¼” paper
- High speed printing
- Paper near-end detection function
- RS-232C interface
- Low power consumption
- Wall mountable
- Balance & scale data
- Weighing slips
|
|
more info
|
AND AD-8920A Universal Remote Display
Universal Remote Display for AND Weighing balances
Connects to A&D’s balances and scales using either RS-232C or current loop
Includes an AC adapter and a communication cable that matches your instrument
Recognizes the balance/scale baud setting automatically
Large and bright VFD display
|
|
more info
|
AND AD-8922A Remote Controller
Remote Controller for AND Weighing balances
Displays weighing data Remotely controls a weighing instrument with key operations (no access to the internal settings) Outputs weighing data to another external device such as a PC or printer via the RS-232C connection Optional BCD, comparator, and analog outputs available Can be panel-mounted
|
|
more info
|
AND Weighing AX:073009456 Protective In-Use Cover for AND Weighing HR Series
AND Weighing AX:073009456 Protective In-Use Cover for AND Weighing HR Series
|
|
more info
|
AND Weighing TB:648 120V/220V AC Adapter
Compatible with the following units: Phoenix GH Series, Gemini GR Series, Galaxy HR Series, Orion HR Series, GF Series, GX Series, FZ Series, FX Series, BM Series, MC Series, AD Pipette Series
|
|
more info
|
A&D Weighing AX-USB-2920-9P Plugable RS-232 to USB DB9 Converter
A&D Weighing AX-USB-2920-9P Plugable USB to RS-232 DB9 Converter
|
|
|
|
|
|
|
|
|
