AND Weighing SE-60KAM Washdown Scale 130lb x 0.02lb |
|
The SC/SE Series bench scale is constructed with a completely sealed indicator and a washdown base that meets IP68 standards. It provides exceptional performance with a stabilization speed of just 1 second! more ... |
Scales >
Industrial Scales >
Bench Scales
|
|
|
|
Features

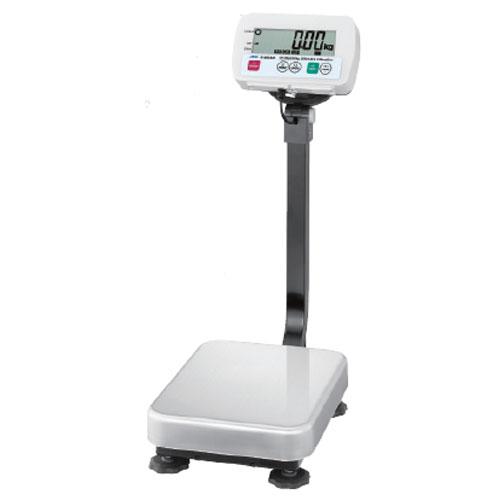

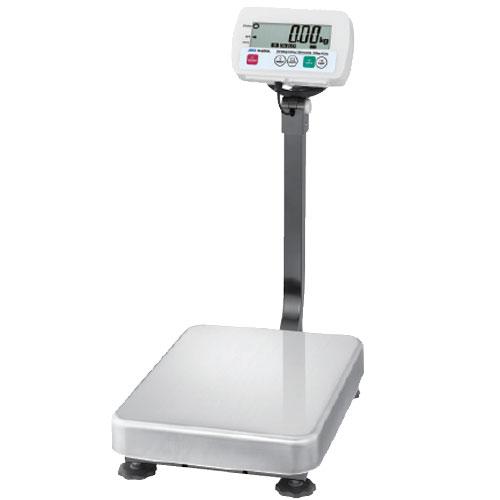

The SC/SE Series bench scale is constructed with a completely sealed indicator and a washdown base that meets IP68 standards. It provides exceptional performance with a stabilization speed of just 1 second!
- IP68 dust and water-proof
- Washdown construction for easy cleaning
- 4500 hours of continuous operation with 6 D batteries1
- Supersized LCD of 39 mm character height
- Easily switchable, multiple weighing units (kg, lb, oz, and pcs)
- Stabilization speed of 1 second
- Stainless steel weighing pan
- Waterproof and corrosion-resistant load cell2
- Quick USB interface3 or RS-232C + comparator relay output available as options
1) Batteries are not included.
2) Aluminum anodized and coated with epoxy resin with protective silicon over wiring.
3) Cables are not included
Stainless Steel Construction Models |
SC-30KAM |
SC-60KAM |
SC-150KAM |
SC-60KAL |
SC-150KAL |
Mild Steel Construction Models |
SE-30KAM |
SE-60KAM |
SE-150KAM |
SE-60KAL |
SE-150KAL |
Capacity X Readability |
66 lb x 0.01 lb |
130 lb x 0.02 lb |
330 lb x 0.05 lb |
130 lb x 0.02 lb |
330 lb x 0.05 lb |
30 kg x 0.005 kg |
60 kg x 0.01 kg |
15 0kg x 0.02 kg |
600 kg x 0.01 kg |
150 kg x 0.02 kg |
Repeatability (Std. deviation) |
0.005 kg |
0.01 kg |
0.02 kg |
0.01 kg |
0.02 kg |
Linearity |
±0.01 kg |
±0.02 kgb |
±0.05 kg |
±0.02 kg |
±0.05 kg |
Sensitivity drift |
±20 ppm / °C (5°C to 35°C / 41°F to 95°F) |
No. of samples |
5 pieces (can be changed to 10, 20, 50 or 100) |
Max. count |
60,000 pcs |
60,000 pcs |
75,000 pcs |
60,000 pcs |
75,000 pcs |
Min. unit weight |
0.0005 kg |
0.001 kg |
0.002 kg |
0.001 kg |
0.002 kg |
Units of Measure |
lb, oz, kg |
Display |
7 segment LCD display (character height 39 mm) |
Display update |
10 times per second |
Operating temp. |
-10°C to 40°C / 14°F to 104°F, 85% R.H. or less (non-condensing) |
Power supply |
Size D batteries x6, Approximately 4,500 hours using alkaline batteries (models are battery power only) |
Weighing pan size |
300 x 380 mm 11.8 x 15 in. |
390 x 530 mm 15.4 x 20.9 in. |
Dimensions SC |
300(W) x 543(D) x 717(H) mm 11.8(W) x 21.4(D) x 28.2(H) in. |
390(W) x 688(D) x 717(H) mm 15.4(W) x 27.1(D) x 28.2(H) in. |
Dimensions SE |
300(W) x 582(D) x 722(H) mm 11.8(W) x 22.9(D) x 28.4(H) in. |
390(W) x 732(D) x 722(H) mm 15.4(W) x 28.8(D) x 28.4(H) in. |
Weight (approximately) |
26.5 lb /12 kg |
35.3 lb / 16 kg |
Calibration weight |
60 lb 30 kg |
120 lb 60 kg |
300 lb 150 kg |
120 lb 60 kg |
300 lb 150 kg |
Weight:
26.50 lb
|
|
Other AND Weighing SE-Series Washdown Scales
|
|
|
|
Optional Accessories
more info
|
AND Weighing SCE-02 Quick USB Interface for SC Series and SE Series
more info Price: $150.00 In Stock
AND Weighing SCE-02 Quick USB Interface for SC Series and SE Series
Note: SCE-02 and SCE-03 cannot be used at the same time.
The SC/SE is not IP68K compliant with SCE-02 or SCE-03.
|
|
more info
|
AND Weighing SCE-03 RS-232C Interface with comparator relay output for SC Series and SE Series
more info Price: $179.00 In Stock
AND Weighing SCE-03 RS-232C Interface with comparator relay output for SC Series and SE Series
Note: SCE-02 and SCE-03 cannot be used at the same time.
The SC/SE is not IP68K compliant with SCE-02 or SCE-03.
|
|
|
|
|
|
