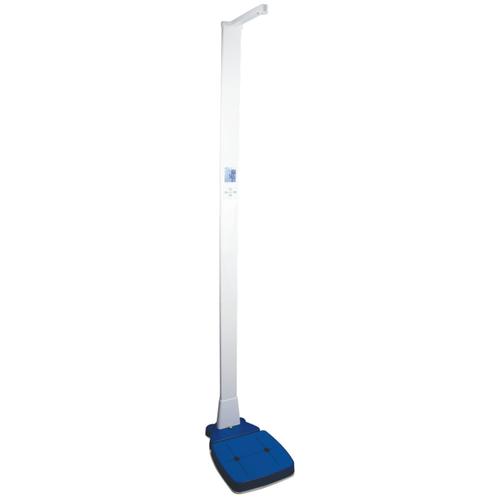

Adam Equipment MUW-300L Health and Fitness Scale with Digital Height Rod 600 x 0.1 lb |
|
Adam MUW offers quick weight and height measurement without the need for a tape measure, the ultra sonic sensor measures height up to 82 inch and automatically calculates BMI. more ... |
Medical Equipment >
Medical Scales >
Physician Scales - Digital
|
|
|
|
Features
With elegant design and durable construction, the MUW 300L ultrasonic health and fitness scale is ideal for performing height, weight and BMI calculations in doctors’ offices, hospitals and gyms.This scale simplifies data collection and is easy to operate.
The MUW offers the ability to output patient and physician identification information without breaching confidentiality. Features include a cast-iron base, aluminum pillar, and backlit LCD that displays height, weight and BMI on one screen, eliminating the need to scroll through readings.
Features and Benefits
Hardware
- Anti-slip platform ensures safety when stepping on and off the scale
- Color-coded keys facilitate quick recognition of the most frequently used buttons
- Integrated wheels permit easy movement
- RS-232 interface is available to provide speedy connection to computers and printers
Software
- BMI (body mass index) indicator
|
|
Specifications
Model with TD52P ABS Indicator |
MUW 300L |
Capacity x Readability |
660 x 0.1 lb 300 x 0.05 kg |
Repeatability |
0.1 lb - 0.05 kg |
Pan Size |
14.8 x14.8 in - 375 x 375 mm |
Power Supply |
12VDC 800mA adapter / Internal rechargeable battery |
Interface |
RS-232 |
Display Digit Height |
0.7" / 17mm |
Weighing Units |
kg, lb, lb:oz |
Stabilization Time |
2 |
Linearity |
0.2 lb - 0.1 kg |
Construction |
Mild steel base |
Operating Temperature |
0° to 40°C / 32° to 104°F |
Overall Dimensions |
14.8"x23.6"x91.3" / 375x600x2320mm (wxdxh) |
Height Rod |
31.5"-82.7" / 80-210cm |
Electrical Safety Mark |
CE, cUL |
Net Weight |
47.8 lb - 21.7 kg |
|
|
|
|
Optional Accessories
more info
|
Adam Equipment 3074010507 RS-232 to USB Interface Cable
9066 RS-232 to USB Interface Cable
|
|
more info
|
Adam Equipment - ATP Thermal Printer (1120011156)
Adam Equipment ATP Thermal Printer (1120011156)
Simple-to-use features combined with quick set-up makes for a truly versatile printer. A single positive push-button feed key and three easy-to-read LED indicators make operation simple.
- Thermal printer
- Dimensions: 114 mm x 184 mm x 90 mm
- Print size 24 x 24 dot
- Column size 384 dots per line
- 57.5mm paper width
|
|
more info
|
Adam Equipment 3014011014 RS-232 cable M-F
The Male to Female RS-232 interface cable is used to connect the balance or weighing scale to other devices such as the ATP Thermal Printer or simply to a computer. Data collection is streamlined and you no longer have to input the readings manually
|
|
more info
|
Adam Equipment - 1120014641 AIP dot matrix printer
The AIP is a compact, high-speed dot matrix printer that is both versatile and sturdy. Simple to use, AIP operates with only an on/off switch and a paper feed button. For efficient communication, the printer connects with any scale or balance having RS-232 or USB interface, and automatically detects the devices settings. AIP is powered by adapter or rechargeable battery, so it works even when electricity is unavailable. AIPs supports a variety of languages, and its software is compatible with Windows operating systems.
Features
- Printer method: 8 pin shuttle impact dot matrix Supplied with RS-232 interface and USB port which allows for connection between printer, computer and weighing device to update firmware and set parameters Auto-setting detection: Communication parameters can be automatically identified and set for quick configuration with devices Fast 1.7 lines/sec (approx) printing speed Printer digits: 24 digits / line or 40 digits / line, 5 x 7 dot matrix Printer paper size: 57mm width, 50mm in diameter
- AC adapter included
- Rechargeable battery included for operation almost anywhere
|
|
more info
|
Adam Equipment 700660290 Calibration Certificate
The Calibration Certificate can only be ordered with the Scale.
It provides information about the machines performance and accuracy.
Generally, its a requirement of any company with ISO Quality systems in place where a record of the scales calibration needs to be kept by the user.
Please note: Adam Equipment can not issue calibration certificates to scales previously supplied that did not include a certificate in the order.
These certificates do not make the scale or balance Trade Approved. These certificates are done by Adam Equipment in a Adam Equipment warehouse and may not be valid once shipped to a different location. they also are non-refunable.
|
|
|
|
|
|
|
