Frontier microliter benchtop centrifuges provide high-speed operation for spin-down applications requiring a wide variety of tube volumes and capacities. With refrigeration capabilities, multi-acceleration/deceleration settings, multiple safety features, and an unmatched capacity, Frontier provides stable liquid separation for life science applications requiring high-speed operation.
Dependable Benchtop Micro Centrifuges, Ideal for High-speed Lab Applications
Frontier Micro centrifuges deliver high-speed operation for a range of essential lab applications, such as DNA/RNA preparation, ultrafiltration, and more. Biocontainment rotors enable research involving hazardous samples. Engineered with convenience of operation in mind, these centrifuges feature an intuitive interface, with all key parameters immediately accessible for observation and adjustment. The compact design saves valuable bench space in the lab.
Excellent functionality when used with rotors compatible with 1.5/2.0ml or 5ml microtubes with high throughput & biocontainment options, spin columns, PCR strips, cryo tubes & hematocrit capillaries.
Designed for ease of operation, Frontier Micro centrifuges feature convenient controls on an intuitive interface, allowing responsive operation – even when wearing gloves
Packaging all their functionality within a small footprint, Frontier Micro centrifuges save valuable space on the lab bench.
-4 oF to 104 oF, 33.8 oF/increments -20 oC to 40 oC, 1 oC/increments
Air cooled
-4 oF to 104 oF, 33.8 oF/increments -20 oC to 40 oC, 1 oC/increments
Running Time
Quick Spin, 10 sec to 99 hr 59 min 59 sec, or continuous
10 sec to 99 hr 99 min 59 sec or continuous)
Noise Level
< 60 dB(A)
< 56 + 2 dB(A)
< 60 dB(A)
< 57 + 2 dB(A)
Acc/Dec Levels
10/10
Call
Allowable Density at Maximum Speed
1.2 g/ml
Call
Allowable Kinetic Energy d
2,129 Nm
2,266 Nm
Call
AC Power
120 V/50-60 Hz
Voltage Fluctuation
+ 10 %
Current Consumption
1.9 A
2.3 A
5.1 A
Power Consumption
170 W
320 W
280 W
560 W
ECM
-
-
EN/IEC 61326-1 Class B emissions, Basic immunity FCC Class B emissions
EN/IEC 61326-1 Class B emissions, Basic immunity FCC Class B emissions

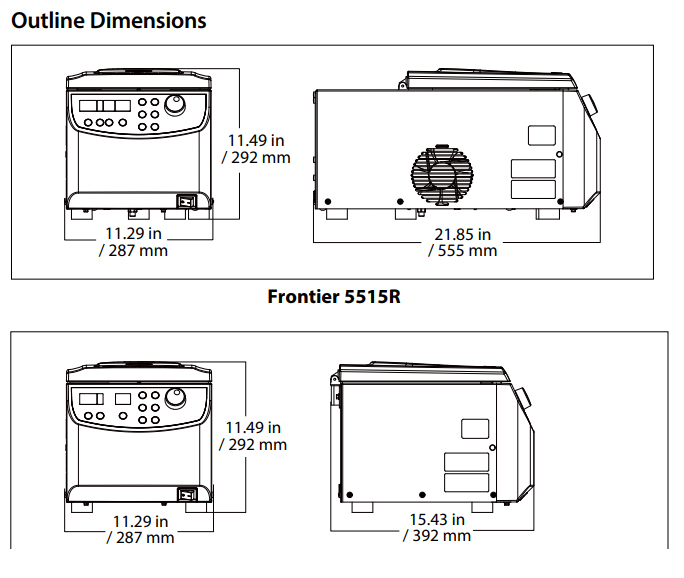

Dimensions (W x D x H)
10.9 × 14.0 × 9.3 in 277 × 356 × 236 mm
11.3 x 21.9 x 11.3 in 287 x 555 x 286 mm
11.29 x 15.47 x 11.49 in 287 x 393 x 292 mm
11.29 x 22.08 x 11.49 in 287 x 561 x 292 mm
Net Weight (without rotor)
27.8 lb / 12.6 kg
73 lb / 33 kg
38 lb / 17 kg
77 lb / 35 kg
Shipping Dimensions (W x D x H)
14.6 × 18.5 × 13.4 in / 370 × 470 × 340 mm
15.7 x 26 x 20.5 in / 400 x 660 x 520 mm
15.74 x 21.45 x 16.14 in / 400 x 545 x 410 mm
15.74 x 25.98 x 20.47 in / 400 x 660 x 520 mm
Shipping Weight (without rotor)
30.9 lb / 14 kg
83.5 lb / 38 kg
44 lb / 20 kg
97 lb / 44 kg
FC5513 and FC5513R Centrifuges
FC5513 $1,774.12
FC5513R $5,339.70
Compact Micro Centrifuges with Modern Touch-Wheel Interface Ideal for High-Speed Lab Applications
Frontier 5513 & 5513R Benchtop Micro Centrifuges as high speed centrifuges are capable of generating approx 17,000 x g. With refrigeration capabilities (FC5513R), seven optional rotors are designed for a range of essential lab applications. Engineered with convenient operation in mind, Frontier 5513 & 5513R feature a uniquely designed splash-proof front panel with touch-wheel control on an intuitive interface. The compact design saves valuable bench space in the lab.
Unique Features:
Frontier 5513 & 5513R offer standard 24 x 1.5/2 ml microtube rotors with a biosealed option. The centrifuges can also support spin columns and hematocrit capillary tubes when used with additional rotor options.
Designed for ease of operation, the FC5513 & FC5513R features convenient control on a protective splash-proof interface, which allows for responsive operation—even when wearing gloves.
With a small footprint, Frontier 5513 & 5513R centrifuges are compact enough to save valuable space on the bench, yet large enough to accommodate the most common size 24 x 1.5/2.0 ml rotors.
Sleekly designed interface enables smooth operation for a great user experience
Easy-to-Use touch-wheel interface for parameter adjustments
Convenient interface shows both set and actual parameters
One-touch toggling between RPM/RCF, Acc/Dec
Crisp display on a double-line LCD display with backlight
Solid engineering to ensure functionality and reliability
True splash-proof panel protects the centrifuge from accidental sample spilling
Maintenance-free induction motor produces maximum G-force of 17,317 x g for FC5513 and 17,157 x g for FC5513R
Speeds up to 13,500 rpm in less than 15 seconds with 24 x 1.5/2.0 ml rotor
10 acceleration/deceleration settings
99 memory sets to quickly store and recall commonly used parameters
FC5513R model has refrigeration capabilities from 40°C to -20°C
Pre-cool feature in FC5513R quickly lowers the temperature of rotor and chamber before a run
Flexible rotor selections to cover essential laboratory applications
Works with microtube rotors with different rotor capacity - 18 x 1.5/2.0 ml or 24 x 1.5/2.0 ml
Compatible with up to 7 rotor option and maximum rotor capacity of 24 x 1.5/2.0 ml
Support spin-column and hematocrit capillary tubes through additional rotor options
Safety features that prevent injury
Biosealed rotor is available for safe handling of hazardous samples
Rotor imbalance sensing systems stops the unit when it detects an imbalanced load
Lid-locking system prevents centrifuge from opening during operation (FC5513R)
Other Standard Features and Equipment
Ten acceleration and ten deceleration rates, pre-selection of running time from 10 sec to 99 hr 59 min or continuous, audible signal at the end of each run with melody options, quick spin for short runs
Electromagnetic Compatibility: IEC/EN 61326-1 Class B, Basic environments
Compliance Mark: CE
Model
Description
Max. Speed
FC5513
FC5513R
Max. RCF
FC5513
FC5513R
30472302
$496.60
Rotor Angle 24 x 1.5/2.0 ml BIOSEALS V1
13,500 rpm
13,000 rpm
17,317 x g
16,058 x g
Accessories
Order No
Description
Vol./Tube
Diameter
Tube Type
No.of Tubes/Rotor
Price
Without Adapter
Rotor Angle 24 x 1.5/2.0 ml BIOSEALS V1
1.5/2.0 ml
11 mm
Microtube
24
$496.60
30130885
Adapter 1 x 0.5 ml D8 mm 6/pk
0.5 ml
8 mm
Microtube
24
$107.25
30130884
Adapter 1 x 0.2/0.4 ml D6 mm 6/pk
0.2/0.4 ml
6 mm
Microtube
24
$107.25
Model
Description
Max. Speed
FC5513
FC5513R
Max. RCF
FC5513
FC5513R
30472304
$577.20
Rotor Hematocrit 24 x Capillaries V1
13,000 rpm
-
16,058 x g
-
Accessories
Order No
Description
Vol./Tube
Diameter
Tube Type
No.of Tubes/Rotor
Price
Without Adapter
Rotor Hematocrit 24 x Capillaries V1
-
1.9 mm
Capillaries
24
$577.20
Model
Description
Max. Speed
FC5513
FC5513R
Max. RCF
FC5513
FC5513R
30210898
$539.10
Rotor Angle 24 x 2.0 ml Spin Column
13,500 rpm
-
17,317 x g
-
Accessories
Order No
Description
Vol./Tube
Diameter
Tube Type
No.of Tubes/Rotor
Price
Without Adapter
Rotor Angle 24 x 2.0 ml Spin Column
2 ml
11 mm
Spin Column
24
$539.10
Model
Description
Max. Speed
FC5513
FC5513R
Max. RCF
FC5513
FC5513R
83041006
$296.10
Rotor Angle 18 x 1.5/2.0 ml Sealable
-
14,500 rpm
-
17,157 x g
Accessories
Order No
Description
Vol./Tube
Diameter
Tube Type
No.of Tubes/Rotor
Price
Without Adapter
Rotor Angle 18 x 1.5/2.0 ml Sealable
1.5/2.0 ml
11 mm
Microtube
18
$296.10
30130885
Adapter 1 x 0.5 ml D8 mm 6/pk
0.5 ml
8 mm
Microtube
18
$107.25
30130884
Adapter 1 x 0.2/0.4 ml D6 mm 6/pk
0.2/0.4 ml
6 mm
Microtube
18
$107.25
Model
Description
Max. Speed
FC5513
FC5513R
Max. RCF
FC5513
FC5513R
83041014
$657.90
Rotor Angle 4 x 8-Place PCR Strip V1
13,500 rpm
13,000 rpm
14,669 x g
13,602 x g
Accessories
Order No
Description
Vol./Tube
Diameter
Tube Type
No.of Tubes/Rotor
Price
Without Adapter
Rotor Angle 4 x 8-Place PCR Strip V1
0.2 ml
6 mm
8-w PCR Strip
32
$657.90
FC5515 and FC5515R Centrifuges
FC5515 $2,432.36
FC5515R $5,312.16

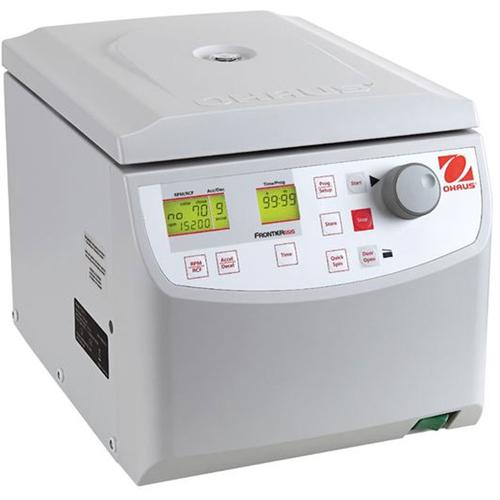

Smooth and Dependable High-Speed Micro Centrifuges for Liquid Separation Applications
Frontier 5515 and 5515R Benchtop Micro Centrifuges provide high-speed operation for spin-down applications requiring a wide variety of tube volumes and capacities. With refrigeration capabilities (FC5515R), 10 acceleration/deceleration settings, multiple safety features, and an unmatched capacity, Frontier provides stable liquid separation for applications requiring high-speed operation.
Unique Features:
Excellent functionality when used with rotors compatible with 1.5/2.0 ml or 5 ml microtubes with high throughput & BIOSEALS options, spin columns, PCR strips, cryo tubes & hematocrit capillaries.
Designed for ease of operation, Frontier Micro centrifuges feature convenient control on an intuitive interface, which allows for responsive operation – even when wearing gloves.
Enclosing all their functionalities within a small footprint, Frontier Micro centrifuges save valuable space on the lab bench.
Easy-to-Use Control Panel
Easy-to-turn rotary knob for parameter adjustments
Waterproof keypad provides protection that helps significantly increase the lifespan of the product
One-touch toggling between speed, g-force, and temperature controls (R model only)
LCD display which projects information in real-time
View and adjust user parameters from the main screen; no need to navigate through sub-screens
High-Performance Driven by Sophisticated Technology
Powerful induction motor reaches speeds up to 15,200 RPM in less than 16 seconds
Maximum g-force of 21,953 RCF
10 acceleration/deceleration settings
99 memory sets for commonly-used speed, time, and temperature settings (R Model Only)
R models has refrigeration capabilities from 104 oF to -4 oF / 40 oC to -20oC
Cools down from 73.4 °F to 4 °C / 39.2 °C to 4 °C in less than 10 minutes
Pre-cool feature quickly lowers the temperature of rotor and chamber before a run
Safety Features that Prevent Injury
Motorized lid-locking system prevents centrifuge from opening during operation
Rotor imbalance sensing system stops the motor should the rotors become imbalanced, protecting the user from spinning rotors
Flexibility for Varied Centrifugation Needs
Maximum capacity of 44 x 1.5/2 ml and 12 x 5 ml tubes
Only centrifuge in its class compatible with 6 rotors (7 rotors on 5515 model), including a PCR strip tube rotor
The most economical centrifuge on the market to include a unique 5 ml tube rotor
The signature snap-on rotor and lid locking system allows for quick installation of rotors with just one press of a button
