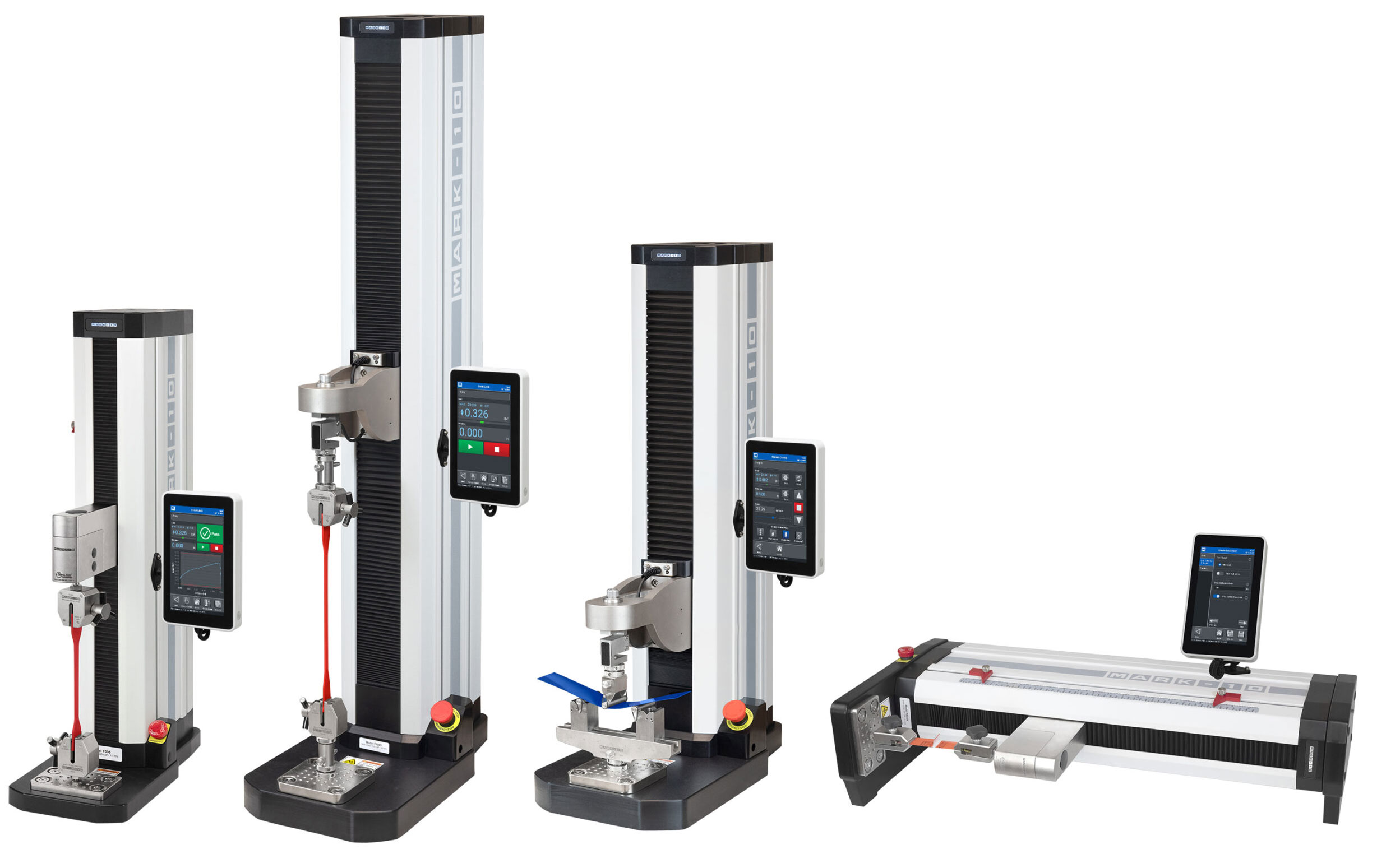

Series F Tension / Compression Test Frames are engineered for force testing applications up to 1,500 lbF (6.7 kN). Select from a broad range of force sensor capacities and an expansive array of grips and fixtures. .
Series F test frames with EasyMESUr are engineered to perform a wide range of tension and compression tests, including break testing, cycling, limit testing to a load or distance, load holding, average force testing, and more.
Set up and run tests, export results, and create a report via the integrated, easy-to-use touchscreen interface ? no PC or force gauge required. For unique needs, run the tester from a PC with your own custom application utilizing EasyMESUR®?s serial command library.
Sample setup and fine positioning are a breeze with available FollowMe® force-based positioning - using your hand as your guide, push and pull on the force gauge or load cell to move the crosshead at a variable rate of speed.
Engineered around a modular function platform, the EasyMESUr run screen can be arranged with large, simple controls ? or configured for more advanced applications with a selection of optional functions, including distance measurement, graphing, cycling, and more. Purchase functions and packages at time of order or enable them in the field via activation codes. All testers are shipped in a 160-hour evaluation mode, in which all functions are available.
Generous travel, clearance, and depth dimensions accommodate samples of various shapes and properties. Modular mechanical design accommodates single- and double-column extensions for oversized specimens.
Select from vertical or horizontal orientations, along with a broad range of force sensor capacities and an expansive array of grips and fixtures.
Features
Rigid and precise by design
Exceptionally rigid frames feature custom extrusion designs, engineered for stiffness. Factory compensation of test frames and force sensors ensure position accuracy of +0.006 in / 0.15 mm under any load, at any position.
Stepper motors and controllers drive a ballscrew and linear guideway for smooth, quiet operation, with virtually no speed variation under load.
Conveniently modular
Frame bases can be removed to accommodate column extensions and alternative mounting configurations. Most electronics are housed in a self-contained enclosure, easily accessed and replaced if needed. Integrated T-slots along the column accommodate add-ons.
Limit switches
Solid-state upper and lower limit switches may be used as test limits or as test exceptions. Dual-graduated rulers aid in switch placement.
Seamless force sensor interface
Series FS05 smart force sensors mount directly to the crosshead of models F105, F305, F505, and F505H, without any connection cables. Ranges available from 0.12 to 500 lbF [0.5 N to 2.rom ]. Accur te to +0.1% of full scale.
Series FS06 S-beam type force sensors mount to models F105, F305, F505, and F505H, recommended when using heavy and bulky grips. Ranges available from 50 to 500 lbF [250 N to 2.5 kN].
Easy-to-service electronics
Most electronics are housed in an integrated module, easily replaced without special tools or processes.
EasyMESUR®
The EasyMESUr integrated control panel centralizes test setup, test frame control, and data collection into one convenient place. Use the 7? touchscreen to create and run a wide range of tests, including:
Test to a load
Test to a sample break
Test to a distance
Load holding
Cycle testing
Average force testing
View data in graphical format or results tables. Save or export data as needed, or generate a report.
What's your point of view? Run a test via the Standard, Graph, or Results views, and switch views as needed. Pass / Fail indicator easily identifies problematic samples.
Standard View - View large-format load and distance values, with pass/fail status.
Graph View - View a graph of load vs. distance or time, with pass/fail status
Results View - View results for each run, with corresponding statistics for the results.
Test setup is easy as 1-2-3
Basic tests
Load Limit
Distance Limit
Break Limit
Load Hold
Cycle
Averaging
Basic Test Settings
Test direction
Speed
Test-specific parameters
Data save preferences
Results Settings
Select results
Enable and configure pass/fail limits
Set data collection rate
Set auto-return to home
Graph Settings
Single-point vs. continuous graphing
Set load vs. time or vs. distance
Graphing start threshold
Robust data acquisition and management
Blazingly fast Force sensor sampling rate of 5,000 Hz yields accurate peak measurements even in quick-duration events. EasyMESUr collects load and travel data at up to 100 Hz, and allows up to 100,000 data points per run.
Customizable reporting
Print or create a PDF report, including results, statistics, graph, system and user information, and comments.
Create report templates to save with future reports.
Save or export data
Save individual runs and results to a USB drive or internal storage within the control panel. Results sets and data from individual runs may also be exported as .csv files.
Intelligent manual control
Manually control the test frame to obtain quick load and distance results, or manually position the crosshead prior to a test. Select from several actuation methods, including momentary (button-hold), maintained (button release) motion, jog mode with three distance presets, and FollowMe® force-based positioning.
Push and pull on the force sensor to move the crosshead. Apply greater load to achieve faster motion. FollowMe® is responsive enough for quick positioning as well as fine adjustments.
Calibrate force sensors on the test frame or off-site
Calibrate sensors in one of two ways:
Test frame EasyMESUr provides an integrated utility, with an intuitive step-by-step wizard. Manual controls allow the technician to use the test frame to apply tension and compression forces.
Off-site Conveniently remove the force sensors for off-site calibration with a Mark-10 Model M7I or M5I indicator (requires optional AC1083 adapter).
Secure user access Control user access to sensitive areas, such as test editing and calibration via password.
Optional Functions
Any of the below functions may be purchased at time of order or may be enabled in the field at a later date through a code activation process.
A complete options package (EMP-COMP-1) is also available, including all of the below features at a discounted price.
The test frames are shipped in Evaluation Mode, during which time all available functions are temporarily enabled for 160 hours of operation.
Function
Part No.
Description
Co-requirements
Distance Measurement
EMF001-1
Measure distance, with the ability to zero the reading.
-
Distance Limits
EMF002-1
Stop at user-defined upper and lower distance limits.
- Distance Measurement (EMF001-1)
Preload
EMF003-1
Zero the travel position automatically at a user-defined preload value.
- Distance Measurement (EMF001-1)
High Speed Extension
EMF004-1
Extend the high end of the speed range, dependent upon test frame model.
-
Low Speed Extension
EMF005-1
Extend the low end of the speed range, dependent upon test frame model.
-
Cycling
EMF006-1
Set up to 100,000 cycles, with user-defined upper and lower dwell times. Cycle between any combination of limit switches, travel limits, breaks, and load limits.
If cycling to distance limits, add Distance Measurement (EMF001-1) and Distance Limits (EMF002-1)
If cycling to a break point, add Break Detection (EMF007-1
)
Break Detection
EMF007-1
Stop when a user-defined drop in force occurs.
-
Load Holding
EMF008-1
Stop at, and maintain, a user-defined load for a specified period of time.
-
FollowMe®
EMF009-1
Push and pull on the sensor?s loading shaft to jog the crosshead up and down, ideal for manual positioning prior to a test. Speed increases with applied force.
-
Graphing & Reporting
EMF010-1
Graph load vs. time or distance, view statistics, and generate a report, including graph, results, run data, and other information.
If graphing load vs. distance, add Distance Measurement (EMF001-1)
PC Control
EMF011-1
Control the test frame with your own application using a supplied library of motion control and data collection serial commands. While PC control is active, the control panel becomes a pendant, limited to basic, manual controls.
AC1107 cable, test frame to PC
Packages
Package
Part No.
Includes
Distance Measurement
EMP001-1
Distance Measurement (EMF001-1)
Distance Limits (EMF002-1)
Preload (EMF003-1)
Speed Extension
EMP002-1
High Speed Extension (EMF004-1)
Low Speed Extension (EMF005-1)
Advanced Functionality
EMP003-1
Cycling (EMF006-1)
Break Detection (EMF007-1)
Load Holding (EMF008-1)
FollowMe® (EMF009-1)
Complete Options
EMP-COMP-1
All functions
In The Box
The F105-EM, F305-EM, F505-EM, and F505H-EM advanced test frames are shipped as shown at left, and includes the following accessories:
(1) Control panel, mounting bracket, and hardware
(1) #10-32M medium hook
(1) 5/16-18M large hook
(1) #10-32F 2? diameter compression plate
(1) #10-32 F/F coupler
(1) Adapter, 5/16-18M to #10-32F
(1) Set screw, #10-32 x 3/4?
(2) Hex nut, #10-32
(1) Power cord
(1) Allen wrench set
The F755-EM, F755S-EM, F1505-EM, and F1505S-EM advanced test frames are shipped as shown at left, and includes the following accessories:
(1) Control panel, mounting bracket, and hardware
(1) Eye end kit for base
(2) Lock ring for eye end
(2) Spanner wrench
(1) Power cord
(1) Allen wrench set
Model
F105-EM
F305-EM
F505-EM
F505H-EM
Price
$3,325.00
$3,610.00
$4,512.50
$5,082.50
Load capacity
100 lbF [0.5 kN] 50 kg
300 lbF [1.3 kN] 132 kg
500 lbF [2.2 kN] 224 kg
500 lbF [2.2 kN] 224 kg
Maximum travel
18.0 in - [457 mm]
Standard speed range
0.5 ? 13 in/min - [13 ? 330 mm/min]
Optional speed range
0.02 ? 45 in/min - [0.5 ? 1,100 mm/min]
Load accuracy (% of full scale)
Test frame: +0.1% Force sensor: Series FS05: +0.1% | Series FS06: +0.15% | Series R07: +0.15%
Load sampling rate
5,000 Hz
Data acquisition rate
100 Hz
Speed accuracy
+0.2% of setting, virtually no variation with load
Position accuracy
+0.006 in [0.15 mm], at any load or position
Distance resolution
0.001 in [0.02 mm]
Limit switch repeatability
+0.001 in [0.03 mm]
Power
Universal input 100-240 VAC, 50/60 Hz, 120W
Fuse type
1.2 A, 250V, 3AG, SLO BLO
Weight (test frame only)
60 lb - [27 kg]
70 lb - [32 kg]
Shipping weight
75 lb - [34 kg]
85 lb - [39 kg]
Environmental conditions:
Indoor use only
Up to 6,500 ft [2,000 m] above sea level
Temperature range: 40 - 95oF [5 - 35oC]
Humidity range: up to 80% relative humidity at 31oC, decreasing linearly to 50% relative humidity at 40oC, non-condensing
Mains supply voltage fluctuations up to +10 % of the nominal voltage
Transient overvoltages up to the levels of Overvoltage Category II
Use in environments up to Pollution Degree 2
Conformance
CE, UKCA
Warranty
3 years [see individual statement for further details]
Country of Origin
USA
ECCN
EAR99
HS Code
9024900000
* Load capacity is reduced at higher speeds, as follows:
- F305: limited to 200 lbF [1 kN] above 24 in [610 mm]/min
- F505 / F505H: limited to 300 lbF [1.3 kN] above 24 in [610 mm]/min
Model
F755-EM
F755S-EM
F1505-EM
F1505S-EM
Price
$8,740.00
$8,193.75
$10,051.00
$9,395.50
Load capacity
750 lbF [3.4 kN] 346 kg
750 lbF [3.4 kN] 346 kg
1,500 lbF [6.7 kN] 683 kg
1,500 lbF [6.7 kN] 683 kg
Maximum travel
32.0 in [813 mm]
14.2 in [360 mm]
32.0 in [813 mm]
14.2 in [360 mm]
Standard speed range
0.5 - 24 in/min [10 - 600 mm/min]
Optional speed range
0.001 - 60 in/min [0.02 - 1,525 mm/min]
0.001 - 70 in/min [0.02 - 1,800 mm/min]
Load accuracy (% of full scale)
Test frame: +0.1% Force sensor: Series FS05: +0.1% | Series FS06: +0.15% | Series R07: +0.15%
Load sampling rate
5,000 Hz
Data acquisition rate
100 Hz
Speed accuracy
+0.2% of setting, virtually no variation with load
Position accuracy
+0.006 in [0.15 mm], at any load or position
Distance resolution
0.001 in [0.02 mm]
Limit switch repeatability
+0.001 in [0.03 mm]
Power
Universal input 100-240 VAC, 50/60 Hz, 120W
Fuse type
1.2 A, 250V, 3AG, SLO BLO
Weight
184 lb - [83 kg]
149 lb - [68 kg]
197 lb - [89 kg]
157 lb - [71 kg]
Shipping weight
235 lb - [107 kg]
195 lb - [88 kg]
247 lb - [112 kg]
205 lb - [93 kg]
Environmental conditions:
Indoor use only
Up to 6,500 ft [2,000 m] above sea level
Temperature range: 40 - 95oF [5 - 35oC]
Humidity range: up to 80% relative humidity at 31oC, decreasing linearly to 50% relative humidity at 40oC, non-condensing
Mains supply voltage fluctuations up to +10 % of the nominal voltage
Transient overvoltages up to the levels of Overvoltage Category II
Use in environments up to Pollution Degree 2
Conformance
CE, UKCA
Warranty
3 years [see individual statement for further details]
Country of Origin
USA
ECCN
EAR99
HS Code
9024900000
FS05 Series Force Sensors
Compatible with Models F105, F305, F505, and F505H. Adapter part no. AC1083 is required for Models F755, F755S, F1505, and F1505S.
Model No.
lbF
ozF
gF
kgF
N
kN
mN
Price
FS05-012
0.12 x 0.00002
2 x 0.0005
50 x 0.01
-
0.5 x 0.0001
-
500 x 0.1
$1,724.25
FS05-025
0.25 x 0.0001
4 x 0.002
100 x 0.05
-
1 x 0.0005
-
1000 x 0.5
$1,377.50
FS05-05
0.5 x 0.0002
8 x 0.005
250 x 0.1
-
2.5 x 0.001
-
2500 x 1
$1,377.50
FS05-2
2 x 0.001
32 x 0.02
1000 x 0.5
1 x 0.0005
10 x 0.005
-
-
$1,220.75
FS05-5
5 x 0.002
80 x 0.05
2500 x 1
2.5 x 0.001
25 x 0.01
-
-
$1,220.75
FS05-10
10 x 0.005
160 x 0.1
5000 x 2
5 x 0.002
50 x 0.02
-
-
$1,220.75
FS05-20
20 x 0.01
320 x 0.2
10000 x 5
10 x 0.005
100 x 0.05
-
-
$1,220.75
FS05-50
50 x 0.02
800 x 0.5
25000 x 10
25 x 0.01
250 x 0.1
-
-
$1,220.75
FS05-100
100 x 0.05
1600 x 1
50000 x 20
50 x 0.02
500 x 0.2
-
-
$1,220.75
FS05-200
200 x 0.1
3200 x 2
-
100 x 0.05
1000 x 0.5
1 x 0.0005
-
$1,377.50
FS05-300
300 x 0.2
4800 x 5
-
150 x 0.1
1500 x 1
1.5 x 0.001
-
$1,377.50
FS05-500
500 x 0.2
8000 x 5
-
250 x 0.1
2500 x 1
2.5 x 0.001
-
$1,377.50
Series FS06 Force Sensors
Compatible with Models F105, F305, F505, and F505H.
Model No.
lbF
ozF
gF
kgF
N
kN
Price
FS06-50
50 x 0.02
800 x 0.5
25000 x 10
25 x 0.01
250 x 0.1
-
$1,282.50
FS06-100
100 x 0.05
1600 x 1
50000 x 20
50 x 0.02
500 x 0.2
-
$1,282.50
FS06-200
200 x 0.1
3200 x 2
-
100 x 0.05
1000 x 0.5
1 x 0.0005
$1,282.50
FS06-300
300 x 0.2
4800 x 5
-
150 x 0.1
1500 x 1
1.5 x 0.001
$1,282.50
FS06-500
500 x 0.2
8000 x 5
-
250 x 0.1
2500 x 1
2.5 x 0.001
$1,282.50
Series R07 Force Sensors
Compatible with Models F755, F755S, F1505, and F1505S. Cannot be used with Models F105, F305, F505, and F505H.
Model No.
lbF
ozF
gF
kgF
N
kN
Price
MR07-50
50 x 0.02
800 x 0.5
25000 x 10
25 x 0.01
250 x 0.1
-
$760.00
MR07-100
100 x 0.05
1600 x 1
50000 x 20
50 x 0.02
500 x 0.2
-
$760.00
MR07-200
200 x 0.1
3200 x 2
-
100 x 0.05
1000 x 0.5
1 x 0.0005
$760.00
MR07-300
300 x 0.2
4800 x 5
-
150 x 0.1
1500 x 1
1.5 x 0.001
$760.00
MR07-500
500 x 0.2
8000 x 5
-
250 x 0.1
2500 x 1
2.5 x 0.001
$760.00
MR07-750
750 x 0.5
12000 x 10
-
375 x 0.2
3750 x 2
3.75 x 0.002
$760.00
MR07-1000
1000 x 0.5
16000 x 10
-
500 x 0.2
5000 x 2
5 x 0.002
$760.00
MR07-1500
1500 x 1
24000 x 20
-
750 x 0.5
7500 x 5
7.5 x 0.005
$760.00
* Load capacity is reduced at higher speeds, as follows:
- F305-EM: limited to 200 lbF [1 kN] above 24 in [610 mm]/min
- F505-EM / F505H-EM: limited to 300 lbF [1.3 kN] above 24 in [610 mm]/min
- F755-EM / F755S-EM: limited to 500 lbF [2.3 kN] above 35 in [900 mm]/min
- F1505-EM / F1505S-EM: limited to 1,000 lbF [4.5 kN] above 60 in [1,525 mm]/min
Any of the below functions may be purchased at time of order or may be activated in the field at a later date via an activation code. A complete options package is also available at a discounted price. The stand is supplied in Demo Mode, a 160-hour time period in which all functions are temporarily enabled
Part No.
Description
CERT-DS
Certificate of calibration, distance and speed
$375.25
AC1094-1
Single column extension, 6 in / 150 mm, F105 / F305 / F505 / F505H
$418.00
AC1094-2
Single column extension, 12 in / 300 mm, F105 / F305 / F505 / F505H
$579.50
AC1094-3
Single column extension, 24 in / 600 mm, F105 / F305 / F505 / F505H
$731.50
AC1094-4
Single horizontal column extension, 6 in / 150 mm, F505H
$418.00
AC1094-5
Single horizontal column extension, 12 in / 300 mm, F505H
$579.50
AC1094-6
Single horizontal column extension, 24 in / 600 mm, F505H
$731.50
AC1095-1
Double column extension, 6 in / 150 mm, F105 / F305 / F505
$1,828.75
AC1095-2
Double column extension, 12 in / 300 mm, F105 / F305 / F505
$2,090.00
AC1095-3
Double column extension, 24 in / 600 mm, F105 / F305 / F505
