CAS HFS Series Floor Scales |
Authorized Dealer |
The CL-5500 Label Printing Scale has the functions you need at an affordable price. Includes CL-Works-Pro software package. Use in supermarkets, specialty stores, deli's and more! |
CAS Scales >> Floor Scales >> Legal for Trade Scales |
|
|
CAS HFS-505 Legal for Trade Floor Scale, 60x 60 x 3.5 Base Only, 5,000 x 1 lb
Price: $1,215.00
In Stock
|

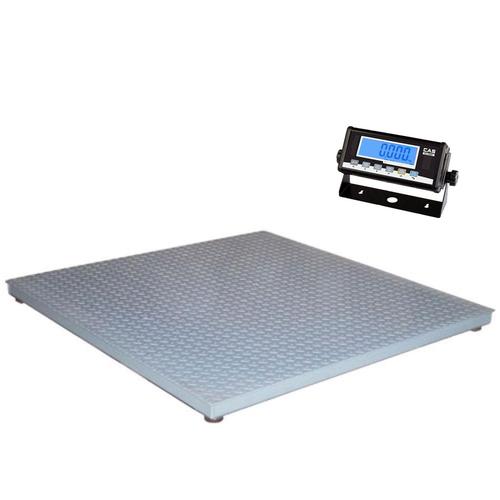

CAS HFS Series Floor Scales
The HFS Series Floor Scale is available in 3 sizes and 2 capacities. Choose either the 3 x 3, 4 x 4 or 5 x 5 at 5,000 or 10,000 lb. capacities. The HFS low profile design makes this floor scale ideal in any environment. Heavy duty construction and easy to use. Bundle with the popular CI-200 and CI-2001 Indicators.
The HFS Series Floor Scale is available in 3 sizes and 2 capacities. Choose either the 3 x 3, 4 x 4 or 5 x 5 at 5,000 or 10,000 lb capacities. Bundle with the popular CI-200 and CI-2001 Indicators.
- 3 x 3, 4 x 4 and 5 x 5 sizes available
- 5,000 x 1 lb / 10,000 x 2 lbs
- Low Profile & Heavy Duty
- Anti-skid Diamond Plated Steel Deck
- 16 ft Cable
- Adjustable Feet
- Side access junction box
- Double Shielded Load Cell Cable
- Bundle with CI-200 or CI-2001 Indicator
- Four environmentally sealed NTEP approved load cells
- Legal for Trade - COC# 07-022
|
|
Model |
HFS-405-CI100A |
HFS-410-CI100A |
HFS-505-CI100A |
HFS-510-CI100A |
Scale with CI-100A |
$1,224.00
|
$1,314.00
|
$1,444.00
|
$1,544.00
|
Capacity x Readability |
5,000 x 1 lb |
10,000 x 2 lb |
5,000 x 1 lb |
10,000 x 2 lb |
Platform Size |
48 x 48 x 3.5 |
48 x 48 x 3.5 |
60 x 60 x 3.5 |
60 x 60 x 3.5 |
Legal for Trade |
YES COC# 07-022 |
NO |
YES COC# 07-022 |
NO |
Cable Length |
10 ft - J-Box to Indicator |
Operating Environment |
-10ºC ~ 40ºC / -14ºF ~ 104ºF |
Display |
6-digit, 7-segment , 1" (25mm) LCD with 16 annunciators and blue backlight |
Display Designators |
Stable, Zero, Net, Total, Unit, Percent, Counting, Hold, HI/OK/LO, Battery |
Units |
Kg, lb, lb:oz, g, oz, pcs (Non-Commercial only), % |
Accuracy |
<= 0.01% Full Scale |
Function Keys |
Setup/Hold, Print/Func, Acc/Total, Unit/Data, Tare/Preset, ON/OFF/Zero |
Vibration Filter |
Four (4) Adjustable Filter Settings - Reduce Vibration/Assist in Configuring Indicator Speed & Stability |
Calibration |
Linearity calibration, GEO calibration, or Input Calibration |
Load Cell Capability |
4 @ 350 ohm |
Communication |
One Full Duplex RS232 Interface, One USB Interface |
Excitation Voltage |
5V DC |
Dimensions |
6.4" (L) x 3.5" (W) x 1.2" (H) 162mm(L) x 80mm(W) x 29mm(H) |
Power Source |
6VDC 500mA Adapter (Included) or 4 x AA batteries |
Warranty |
2 Years |
Model |
Capacity |
Price |
Dimension |
Legal for Trade |
Indicators |
Access Ramp |
Buy Now |
CAS CI-100A Indicator
The CI-100A is a simple, yet versatile indicator with NTEP and Measurement Canada certifications suitable for legal for trade use. Functionality includes:Weight ? Count ? Percentage ? Accumulation ? Hold ? Checkweighing ? Animal Weighing Capabilities
With a display resolution up to 1/100,000, visibility is insured by a blue backlit 1" high LCD display.
Standard features include a full
duplex RS232 serial interface, USB interface, multiple
communication protocols, time & date, and various
selectable units of measurement including lb, kg, g, oz,
lb:oz, pieces (non-commercial only), and percent.
Model |
CI-100A |
Construction |
Aluminum Alloy Housing with Desk/Wall Mount Bracket |
Display |
6-digit, 7-segment , 1" (25mm) LCD with 16 annunciators and blue backlight |
Display Designators |
Stable, Zero, Net, Total, Unit, Percent, Counting, Hold, HI/OK/LO, Battery |
Units |
Kg, lb, lb:oz, g, oz, pcs (Non-Commercial only), % |
Accuracy |
<= 0.01% Full Scale |
Function Keys |
Setup/Hold, Print/Func, Acc/Total, Unit/Data, Tare/Preset, ON/OFF/Zero |
Vibration Filter |
Four (4) Adjustable Filter Settings - Reduce Vibration/Assist in Configuring Indicator Speed & Stability |
Calibration |
Linearity calibration, GEO calibration, or Input Calibration |
Load Cell Capability |
4 @ 350 ohm |
Communication |
One Full Duplex RS232 Interface, One USB Interface |
Excitation Voltage |
5V DC |
Operating Environment |
-10ordm;C ~ 40ordm;C / -14ordm;F ~ 104ordm;F |
Dimensions |
6.4" (L) x 3.5" (W) x 1.2" (H) 162mm(L) x 80mm(W) x 29mm(H) |
Power Source |
6VDC 500mA Adapter (Included) or 4 x AA batteries |
Product Weight |
2.7 lb / 1.3 kg |
Warranty |
2 Years |
Approvals |
NTEP: COC# 16-103 Measurement Canada: AM-6044 CE, WEEE Directive, UL/CUL |
CAS CI-2001 Series Indicator
The CI-2001 Seres Indicator with RS-232. Use in a variety of applications - floor scales, livestock scales, platform scales, pallet scales, and much more. With its bright red display, the CI-2001 Series Indicator is easy to read. Legal for trade.
- Compact & Simple Indicator
- Power : AC Adapter
- Single Pass Automatic Span Calibration
- RFI/EMI Screened / Watch - Dog Function
- Wall/Panel Mounting Type
- kg/lb Switchable
- Gross/Net/Tare
- IP 65/NEMA4X Indicator enclosure(CI-2001AS/BS)
- NTEP Approval number :98-103
Model |
CI-2001A |
CI-2001B |
CI-2001AS |
CI-2001BS |
Input Sensitivity |
2 V/D(H- 44, OIML) 0.5 V/D(Non H - 44, OIML) |
Zero Adjust Range |
0.05~5mV |
Load Cell Excitation |
DC 5V, Up to 4 350 Load Cells |
A/D Conversion Speed |
10 times/sec |
A/D Display Resolution |
5,000dd(H- 44, OIML) 30,000dd(Non H - 44, OIML) |
A/D Internal Resolution |
Approximately 200,000 Counts |
Weight Display |
6 Digit LED (H=0.55 ) |
6 Digit LCD (H=1) |
6 Digit LED (H=1) |
6 Digit LCD (H=1) |
Operating Temperature |
-10 C~+40 C |
Dimensions(inch) |
7.32(W) 2.28(D) 3.34(H) |
7.87(W) 5.11(D) 2.08(H) |
Product Weight(lb/kg) |
Approximately 1.10/0.5 |
Approximately 3.30/1.5 |
