Rice Lake Dimension Plus Dimension Systems

Rice Lake's iDimension Plus is the best-in-class solution for measuring boxes, flats, polybags, tubes and irregular-shaped packages. iDimension Plus eliminates dimensional weight corrections and carrier fees by providing accurate dimension and weight calculations required by parcel and postal carriers.
Have Questions?
Call USoremail Us
Our Staff will be glad to help
Legal For Trade

FAQ

Specifications Chart

iDim Plus package 1 includes:
base plate, telescoping pole assembly, touchscreen display, calibration object, US power cord, operating manual and assembly toolkit



iDim Plus package 2 includes:
base plate, telescoping pole assembly, touchscreen display, calibration object, US power cord, operating manual and assembly toolkit and a 150 lb Bench Pro shipping scale



iDim Plus package 3 includes:
dimensioning head (without pole), 10 ft Ethernet cable, USB display, calibration



A New Era of Shipping Rice Lakes iDimension Plus is the fastest static tabletop solution for calculating dimensions of boxes, flats, polybags, tubes and irregular-shaped packages. The iDimension Plus eliminates revenue loss by providing accurate dimensional weight calculations required by parcel and postal carriers. Users can truly plug and play with the iDimension Plus—simply open and assemble to instantly display dimensions.
Measuring Success with the Green Bay Packers (PDF)
Setup and Operation Manual (PDF)
Managers Guide (PDF)
Software Manual (PDF)

A Dimensioning System Like Never Before Rice Lake's iDimension Plus is the best-in-class solution for measuring boxes, flats, polybags, tubes and irregular-shaped packages. iDimension Plus eliminates dimensional weight corrections and carrier fees by providing accurate dimension and weight calculations required by parcel and postal carriers.

Easy Setup iDimension Plus uses a pre-assembled telescoping pole assembly with scanner height settings at 48 or 60 inches (1.2 or 1.5 meters) above a work surface. The second generation head is backward-compatible with the original pole assembly, making an easy upgrade path to take advantage of improved measuring capabilities. iDimension Plus is also available without a pole assembly for mounting the dimensioning head on a freestanding frame or existing structure.

Speed and Accuracy Parcels are dimensioned faster and more accurately than manual measurements, eliminating the risk of human error while gaining efficiency and labor savings. With industry-leading speed, parcels are automatically measured within 0.2 inches (5 mm), with no need for special alignment or handling while placing a package under the dimensioner. iDimension Plus can dimension irregular-shaped packages such as cylinders, spheres, tubes, polybags and uneven shapes.

Innovative Technology iDimension Plus uses the latest dimensioning technology coupled with industry-leading algorithms to deliver Legal for Trade dimensions in a fraction of a second. Using an attached BenchPro scale and RGB Assist mode, dimensions can be captured for envelopes, flats and small objects that fall below the 2.4-inch Legal for Trade limit. iDimension Plus comes standard with Ethernet TCP/IP, dual USB-A ports and Wi-Fi.

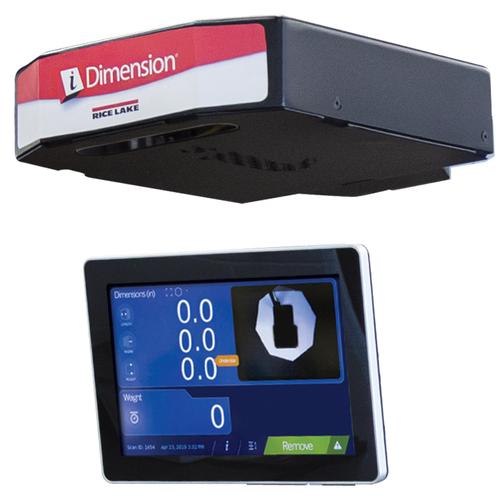

Operator Display A 10-inch color touchscreen display provides instant feedback, with images, dimensions, weights and intuitive operator functions for day-to-day use.

Operating Versatility iDimension Plus has automatic and manual trigger configurations. A small footprint and configurable scan area provide easy integration into any workspace.

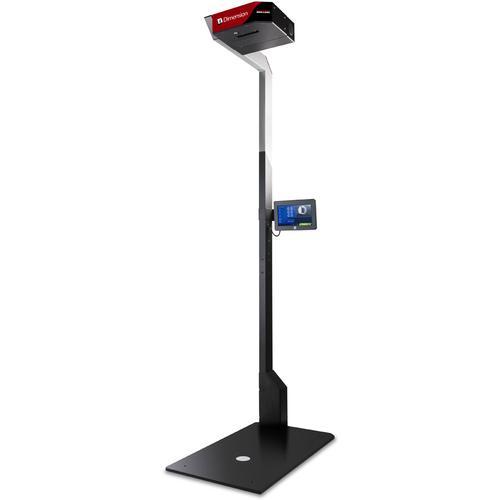

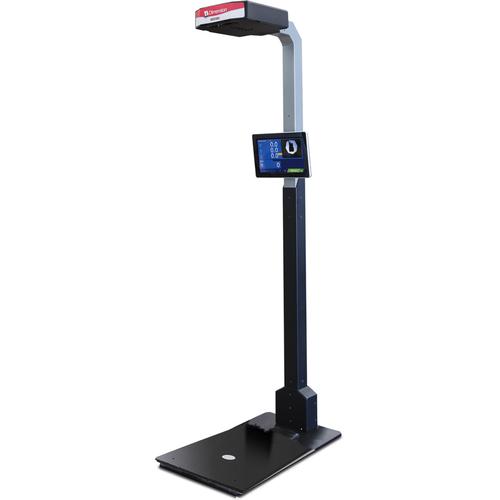

iDimension Plus Parcel Static Dimensioning System
  • iDim Plus package 1 includes: base plate, telescoping pole assembly, touchscreen display, calibration object, US power cord, operating manual and assembly toolkit

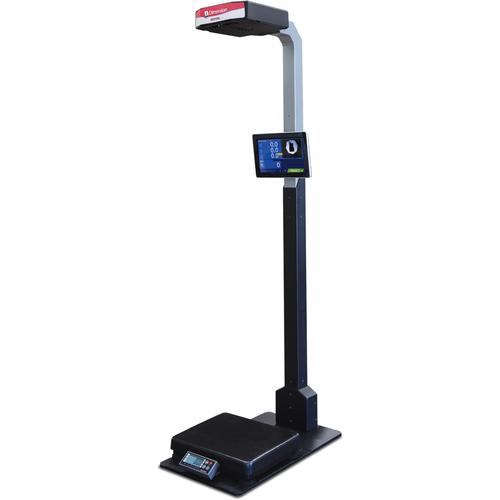

  • iDim Plus package 2 includes: package 1 components and a 150 lb Bench Pro shipping scale
  • iDim Plus package 3 includes: dimensioning head (without pole), 10 ft Ethernet cable, USB display, calibration object, US power cord and operations manual
  • No special package placement requirements
  • Capable to dimension opaque packaging
  • Measurement capabilities beyond Legal for Trade limits
  • High resolution color image, 1920 × 1080 resolution color camera
    Options
  • iDimension SS (Software Suite)
  • iDimension Desktop Wedge programs for data integration
  • Wired or wireless USB barcode scanner
  • Rice Lake BenchPro shipping/postal scales
  • Rice Lake 680 and 1280 indicators available for automation applications
Rice Lake Dimension Plus Dimension Systems

Model

Optional
Accessories
Options for iDim XL Plus (Package 1 ,2)
Rice Lake 225778 iDim Plus Mobile Cart 48 inch long, 1000 lb capacity, power source not included
Rice Lake 225778 iDim Plus Mobile Cart 48 inch long, 1000 lb capacity, power source not included, add $2,189.75
Rice Lake 225776 iDimension Plus Mobile, 1500W Power Station, 30Ah battery, 3-120VAC outlets
Rice Lake 225776 iDimension Plus Mobile, 1500W Power Station, 30Ah battery, 3-120VAC outlets, add $1,705.25
Options for iDim XL Plus (Package 3)
Rice Lake 174660 Floor Stand, iDimension 100/300/IQV/Plus, comes with Installation Kit (206583) and Mounting Kit for USB Display (184262).
Rice Lake 174660 Floor Stand, iDimension 100/300/IQV/Plus, comes with Installation Kit (206583) and Mounting Kit for USB Display (184262)., add $1,548.00
Rice Lake 198708 Installation Kit,iDim XL Plus hardware and cable assembly kit
Rice Lake 198708 Installation Kit,iDim XL Plus hardware and cable assembly kit, add $166.25
Rice Lake 184262 iDim Plus XL,Stand Mount Kit for USB display and 380/680/682 indicator
Rice Lake 184262 iDim Plus XL,Stand Mount Kit for USB display and 380/680/682 indicator, add $137.75
Accessories
Rice Lake 180007 USB hub, Kit Includes USB Hub, 5M cable, power adapter, North America
Rice Lake 180007 USB hub, Kit Includes USB Hub, 5M cable, power adapter, North America, add $252.00
Rice Lake 222125 Power Cord,90 CEE 7/4 C13, 2.5M length power cord
Rice Lake 222125 Power Cord,90 CEE 7/4 C13, 2.5M length power cord, add $30.00
Rice Lake 180771 iDimension to Worldship USB Hub Connection Kit
Rice Lake 180771 iDimension to Worldship USB Hub Connection Kit, add $378.40
Rice Lake 225020 Scanner,Quickscan QD2590 Scanner, Quickscan QD2590 with USB cable
Rice Lake 225020 Scanner,Quickscan QD2590 Scanner, Quickscan QD2590 with USB cable, add $293.25
Rice Lake 206225 Scanner,Wireless Barcode Longe range, Honeywell 1991XLR-3USB-5-N
Rice Lake 206225 Scanner,Wireless Barcode Longe range, Honeywell 1991XLR-3USB-5-N, add $1,710.00
Rice Lake 206228 Power Supply,Honeywell scanner, PS-05-1000W-A6
Rice Lake 206228 Power Supply,Honeywell scanner, PS-05-1000W-A6, add $71.25
Rice Lake 175812 Software,iDimension SS Webserver, database collection and integration program
Rice Lake 175812 Software,iDimension SS Webserver, database collection and integration program, add $2,137.50
BenchPro Compatible Scales
Rice Lake BP 1214-35P (194625) BenchPro Legal for Trade 12 x 14 inch Painted Mild Steel Scale 70 lb x 0.2 oz
Rice Lake BP 1214-35P (194625) BenchPro Legal for Trade 12 x 14 inch Painted Mild Steel Scale 70 lb x 0.2 oz, add $700.00
Rice Lake BP-1214-75S BenchPro Legal for Trade 12 x 14 inch Painted Mild Steel Scale 150 x 0.05 lb
Rice Lake BP-1214-75S BenchPro Legal for Trade 12 x 14 inch Painted Mild Steel Scale 150 x 0.05 lb, add $691.25
Rice Lake BP-1818-75S (202191) Scale,Bench Pro Series Mild Steel Painted Weight Platter, 18 x 18 inch for use with iDim Plus pole mounts 150 x 0.05lb/75 x 0.02kg
Rice Lake BP-1818-75S (202191) Scale,Bench Pro Series Mild Steel Painted Weight Platter, 18 x 18 inch for use with iDim Plus pole mounts 150 x 0.05lb/75 x 0.02kg, add $1,392.00
Rice Lake BP 1818-75S (201730) Bench Pro Series Ball Top Weight Platter, 18 x 18 inch Dimensions, IDim Plus 150 x 0.05lb/75 x 0.02kg
Rice Lake BP 1818-75S (201730) Bench Pro Series Ball Top Weight Platter, 18 x 18 inch Dimensions, IDim Plus 150 x 0.05lb/75 x 0.02kg, add $1,712.00
Rice Lake BP 1818-75S (202190) Bench Pro Series  Roller Conveyor Platter, Weigh Platter, 18 x 18 inch for use with iDim Plus 150 x 0.05lb/75 x 0.02kg
Rice Lake BP 1818-75S (202190) Bench Pro Series Roller Conveyor Platter, Weigh Platter, 18 x 18 inch for use with iDim Plus 150 x 0.05lb/75 x 0.02kg, add $1,540.00
Rice Lake BP-2020-150SMS BenchPro Legal for Trade 20 x 20 inch Painted Mild Steel Scale 300 x 0.1 lb
Rice Lake BP-2020-150SMS BenchPro Legal for Trade 20 x 20 inch Painted Mild Steel Scale 300 x 0.1 lb, add $1,521.00

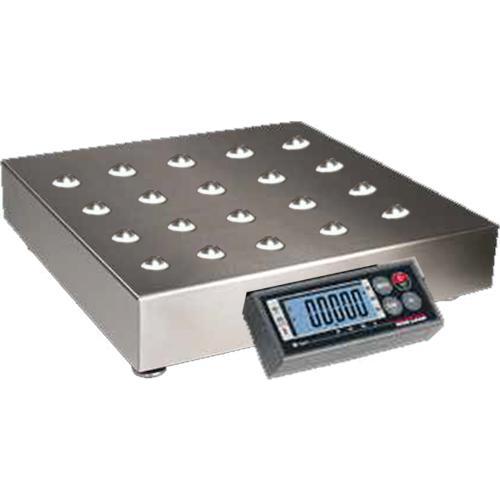

Rice Lake BP-2020-150SBT BenchPro Legal for Trade 20 x 20 inch Ball Top Scale 300 x 0.1 lb
Rice Lake BP-2020-150SBT BenchPro Legal for Trade 20 x 20 inch Ball Top Scale 300 x 0.1 lb, add $1,852.50

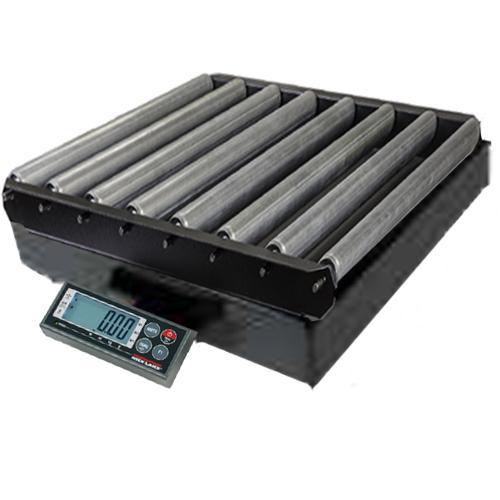

Rice Lake BP-2020-150SROL BenchPro Legal for Trade 20 x 20 inch Roller Conveyor Scale  300 x 0.1 lb
Rice Lake BP-2020-150SROL BenchPro Legal for Trade 20 x 20 inch Roller Conveyor Scale 300 x 0.1 lb, add $1,610.70
Rice Lake BP-2424-150SMS BenchPro Legal for Trade 24 x 24 inch Painted Mild Steel Scale 300 x 0.1 lb
Rice Lake BP-2424-150SMS BenchPro Legal for Trade 24 x 24 inch Painted Mild Steel Scale 300 x 0.1 lb, add $1,677.00
Rice Lake BP-2424-150SBT BenchPro Legal for Trade 24 x 24 inch Ball Top Scale 300 x 0.1 lb
Rice Lake BP-2424-150SBT BenchPro Legal for Trade 24 x 24 inch Ball Top Scale 300 x 0.1 lb, add $2,039.70
Rice Lake BP-2424-150SROL BenchPro Legal for Trade 24 x 24 inch Roller Conveyor Scale  300 x 0.1 lb
Rice Lake BP-2424-150SROL BenchPro Legal for Trade 24 x 24 inch Roller Conveyor Scale 300 x 0.1 lb, add $1,766.70

Models 226071
iDimension Plus
226086
iDimension Plus
226070
iDimension Plus XL
Price Rice Lake 226071 iDimension Plus Parcel Dimensioning System with Pole Assembly (Package 1)
$5,695.25
Rice Lake 226086 iDimension Plus Parcel Dimensioning System with Pole Assembly and Scale (Package 2)
$6,707.00
Rice Lake 226070 iDimension Plus Parcel Dimensioning System no Pole  (Package 3)
$4,784.20
Packages Includes Package 1 Package 2 Package 3
base plate, telescoping pole assembly, touchscreen display, calibration object, US power cord, operating manual and assembly toolkit base plate, telescoping pole assembly, touchscreen display, calibration object, US power cord, operating manual and assembly toolkit, 150 lb Bench Pro shipping scale dimensioning head (without pole), 10 ft Ethernet cable, USB display, calibration object, US power cord and operations manual
Power Requirements: 110 to 240 VAC
Communication Ports (2) USB A
(1) 10/100/1000 Base-T Ethernet
Wi-Fi 802.11 ac
Display 10 in (254 mm) touchscreen monitor
Accuracy Certified Legal for Trade at 0.2 in (5 mm)
Software Integration Simple API network integration through HTTP requests, status checking and XML parsing
Temperature Certified: 32 oF to 95 oF (0 oC to 35 oC)
Legal For Trade
Approvals NTEP, OIML, CE, EU MID, FCC
Warranty Two-year limited

Legal for Trade Minimum and Maximum Measurement Capability

Platform Distance 48 in (1.2 m) 1.5 m 2 m XL
Min/Max* Min Max Min Max Min Max
Length 2.4 in (50 mm) 39 in (1,000 mm) 2.4 in (50 mm) 48 in (1,200 mm) 4 in (100 mm) 48 in (1,200 mm)
Width 2.4 in (50 mm) 24 in (600 mm) 2.4 in (50 mm) 32 in (800 mm) 4 in (100 mm) 32 in (800 mm)
Height 2.4 in (50 mm) 24 in (600 mm) 2.4 in (50 mm) 28 in (700 mm) 4 in (100 mm) 32 in (800 mm)
Division 0.2 in (5 mm) 0.2 in (5 mm) 0.5 in (10 mm)
*With RGB assist enabled smaller measurements are possible



Largest Box Measurement Capability for Max Length vs. Max Height

Largest Box Measurement Capability for Max Length vs. Max Height
Pole Assembly Height Minimum LFT Box Size Maximum LFT Box Size
Largest Box with Max Height 48 in (1.2 m) 2.4 x 2.4 x 2.4 in
(50 x 50 x 50 mm)
24 x 14 x 24 in
(600 x 350 x 600 mm)
Largest Box with Max Length 48 in (1.2 m) 2.4 x 2.4 x 2.4 in
(50 x 50 x 50 mm)
39 x 24 x 8 in
(1,000 x 240 x 200 mm)
Largest Box with Max Height 60 in (1.5 m) 2.4 x 2.4 x 2.4 in
(50 x 50 x 50 mm)
32 x 20 x 28 in
(800 x 500 x 700 mm)
Largest Box with Max Length 60 in (1.5 m) 2.4 x 2.4 x 2.4 in
(50 x 50 x 50 mm)
48 x 32 x 4 in
(1,200 x 800 x 100 mm)
Min/Max* Min Max Min











FAQ

Q: Does iDimension Interface with shipping software programs? A: The iDimension Series is a new product. The free API and software development tool kit can help users interface with their current system. In the future, look for iDimension Software Compatibility Chart at www.ricelake.com as new companies are added to the list.

Q: How do I connect my iDimension to a PC? A: The iDimension Series interfaces to an Ethernet port. Connect directly to a PC’s Ethernet port or router switch so that iDimension can be configured as a DCHP or static IP device.

Q: Does iDimension have a operator display or keypad? A: The customer’s computer monitor is used as the display. iDimension’s embedded firmware provides a demo display with image, operator display and customer display. Use a Wi-Fi router to connect to a tablet using iDimension’s web service technology.

Q: Can iDimension connect to a scale? A: iDimension can be configured to add the weight into the iDimension displays or API. There is a selection of common shipping scales to choose from or use a Rice Lake 420 indicator with custom iDimension software that uses an RS-232 to USB converter, providing an FTDI driver. Typically, the end user’s scales already interface to their software program; connection to the iDimension is not required.

Q: What is an API? A: Application Program Interface, or API, is a set of routines, protocols and tools for building software applications. An API is generally a specification of remote calls exposed to software for consumption that will allow the software to perform different operations, or retrieve specific data. The API allows users to interface with the system to retrieve dimensions, weight, a low-resolution image and more valuable data using a simple HTTP request and XML parsing method. iDimension is easily installed over existing conveyors and workstations.

Q: Does iDimension provide a dimensional weight? A: The iDimension Series is NTEP Certified to provide dimensional weight since most shipping software programs provide dimensional weight standard. However, we provide length, width, height, weight, a low resolution image, time and date, sequential capture identification, status, extended status, and identification barcode information.

Q: What is an irregular shape? A: An irregular shape is anything that is not packed in a carton. iDimension is one of the few dimensioning systems that accurately measure an irregular shape with NTEP Certification at 10 mm accuracy.

Q: How do I calibrate the iDimension Series? A: A calibration tool is provided with each product. Simply place the item under iDimension and calibrate using the embedded firmware.

Q: What are the advantages of the iDimension Series? A: iDimension is an innovative, easy-to-maintain dimensioning solution with no moving parts to service. iDimension can quickly capture dimensions in 0.2 seconds from parcels placed anywhere in its zone of interest work area. A high-resolution camera captures an image of the parcel to identify bar codes and OCR data.

Q: What is the warranty? A: One year from date of installation.

Q: What is the repair policy? A: Rice Lake Weighing Systems has a repair depot swap program and easy field replacement.

Q: How do I troubleshoot in the field? A: Using a remote support program like TeamViewer®, Rice Lake’s iDimension service team can quickly provide remote support from our facility without need for a field visit.

Older iDimension for Reference

200972 200967 192380 200966
Pole Assembly Height 1.2 M 1.5 M
Color Image low resolution 4k resolution low resolution 4k resolution
Legal for Trade NTEP Certified COC#19-040
Certifications and Approvals NTEP CoC Number: 19-040A1
EU File Number: T11908
OIML File Number: R129/2000-A-NL1-20.05

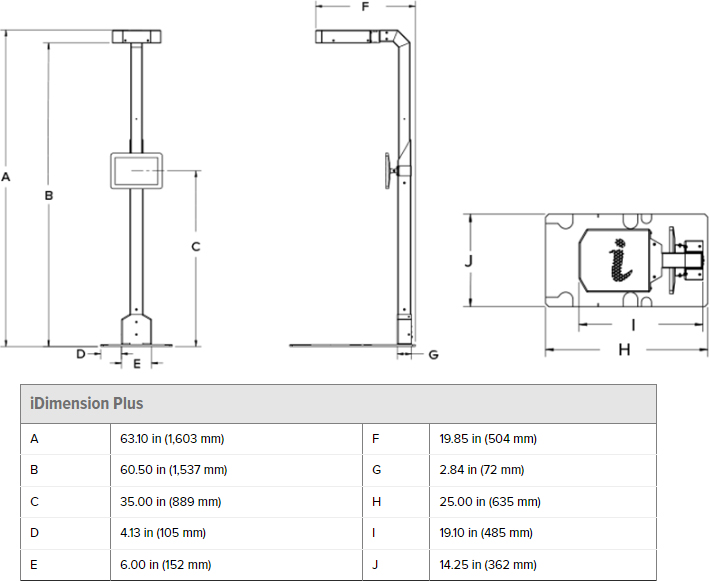

PHYSICAL DIMENSIONS Length: 25 in (63.5 cm)
Width: 14.25 in (56 cm)
Height: 63.8 in (162 cm)
Weight: 28.5 lb (13 kg)
POWER REQUIREMENTS Single power source 110-240 V external power supply, US power cord
OBJECT COLORS All opaque packaging
MEASUREMENT TIME 0.2 seconds, scale settling times may vary by manufacturer
OPERATING TEMPERATURE 32o F to 86o F (0o C to 30o C)
HUMIDITY Non-condensing
MECHANICAL ENVIRONMENT CLASS M1
ELECTROMAGNETIC CLASS E1
I/O PORTS USB type A port (interface to scale)
10/100/100BASE-T Ethernet port (interface to PC)
SOFTWARE INTEGRATION API and SDK files available for network device integration
PACKAGE CONTENTS iDimension Plus, calibration object, USB display and US power cord
Cuboidal Specifications
Division +0.2" (0.51 cm)
Capacity Minimum Maximum
Length 5.6" (14.22 cm) 48" (121.92 cm)
Width 5.6" (14.22 cm) 28" (71.12 cm)
Height 2.4" (6.1 cm) 28" (71.12 cm)
Irregular Specifications
Division +0.5" (1.27 cm)
Capacity Minimum Maximum
Length 6" (15.24 cm) 48" (121.92 cm)
Width 6" (15.24 cm) 28" (71.12 cm)
Height 6" (15.24 cm) 28" (71.12 cm)
WARRANTY One-year limited warranty
